433Mhz Universal Wireless Remote Control Switch
(No reviews yet)
Write a Review
- SKU:
- PEFFG45
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Technical Data:
Input Power:AC 85V-250V
Standby Current:<8.5MA
RF Frequency: 433M
RF working mode: superheterodyne
Receive sensitivity: > 97 dbm
Transmitting distance: 20-100 m ( open space)
Decoding mode: MCU software decoding
Support remote type: Learning code (1527 encoding )
Working mode: Momentary, Toggle
Wiring type:fixed terminal
Output Terminal :NO , NC , COM
Dimension of PCB:68*47*26mm (L,W,H)
Wiring diagram：
L(Live wire): Input 85V - 220V Live wire
N(Neutral wire):Input 85V - 220V Neutral wire
1 NC:Normally closed Output
2 COM:Common port
3 NO: Normally open Output
4 NC :Normally closed Output
5 COM:Common port
6 NO: Normally open Output
Connection modes:

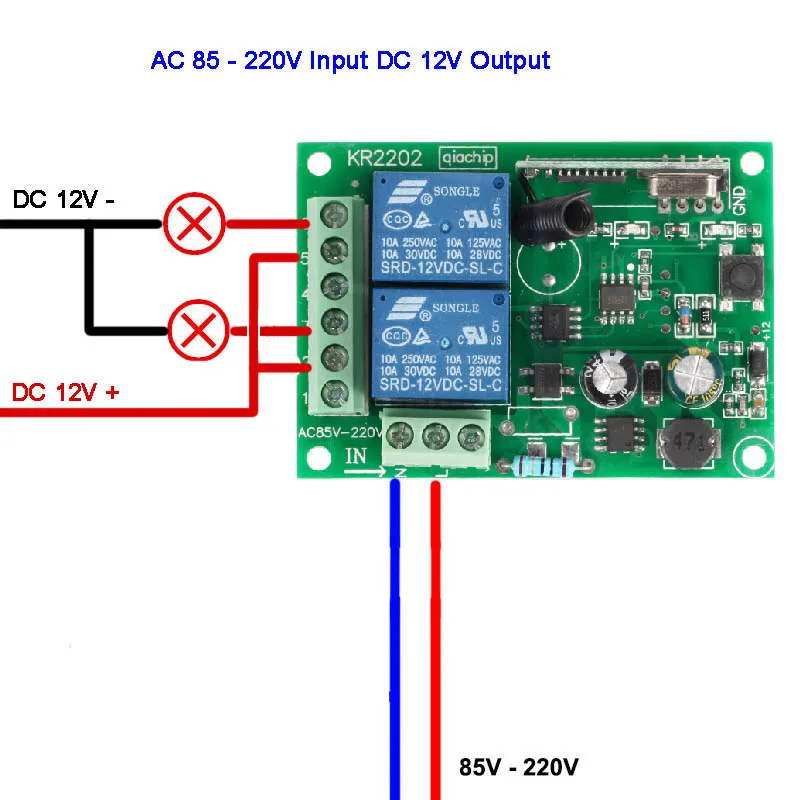

1.Lighting Control

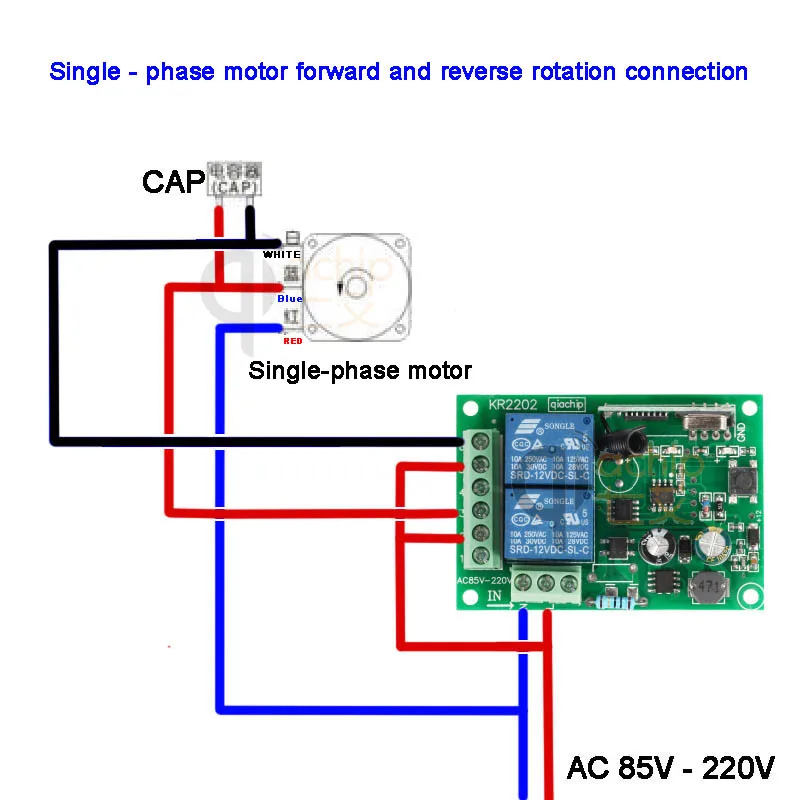

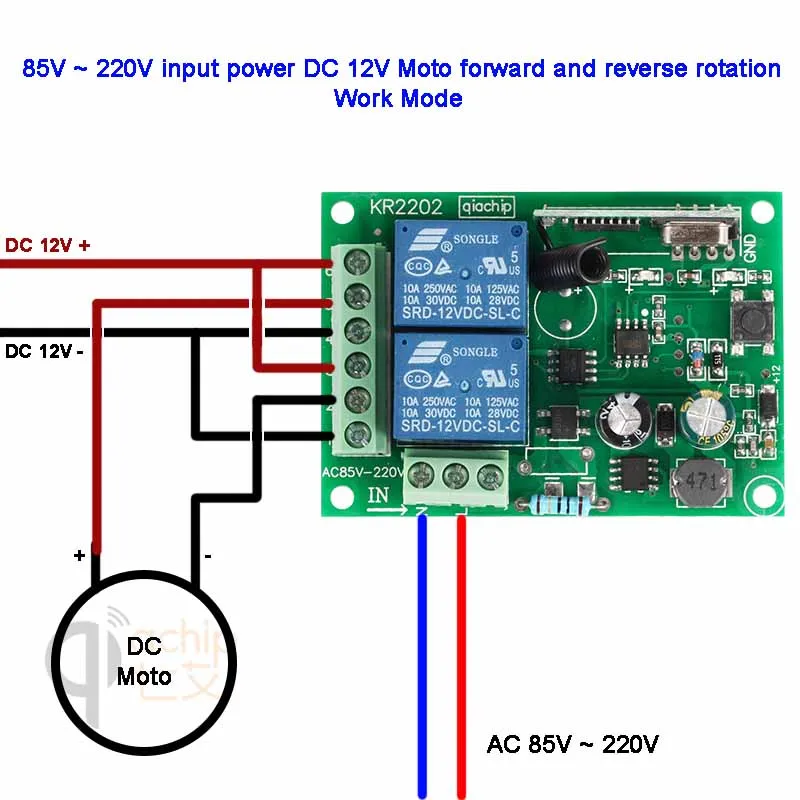

2.Moto Control
About Working mode:
Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.
Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
Interlock: Push the remote button A ,frist relay connects ,Push the remote button B ,the second relay connects and frist relay dis-connects.When you Push button A again ,frist relay connects and the second relay dis-connects.Push other remote button,frist relay and the second relay all dis-connect.
Clearing the code :
Push the learning button on the receivers for 8 times , the codes will be cleaned .
After clearing the code, all the remote control cannot work any more.
Learning the code :(momentary)
Press the learning key on the receiver 1 times , it comes into momentary setting mode .
Wait for a moment , the LED will be off , it comes into learning state .
Push the remote button "A" , LED indicator on the receiver board will flash then come off .Remote button "A" will control frist relay.
then Push the remote button "B" ,LED indicator on the receiver board will flash then come off. Remote button "B" will control The second relay.Setting done.
Learning the code : ( Toggle )
Press the learning key on the receiver 2 times , it comes into momentary Toggle mode .
Wait for a moment , the LED will be off , it comes into learning state .
Press the remote button "A" , LED indicator on the receiver board will flash then come off .Remote button "A" will control frist relay.
then Press the remote button "B" ,LED indicator on the receiver board will flash then come off. Remote button "B" will control The second relay.Setting done.
Learning the code : ( Interlock )
Press the learning key on the receiver 3 times , it comes into momentary Interlock mode .
Wait for a moment , the LED will be off , it comes into learning state .
Press the remote button "A" , LED indicator on the receiver board will flash then come off .Remote button "A" will control frist relay.
then Press the remote button "B" ,LED indicator on the receiver board will flash then come off. Remote button "B" will control The second relay.Setting done. Other unset buttons are turned off by default.

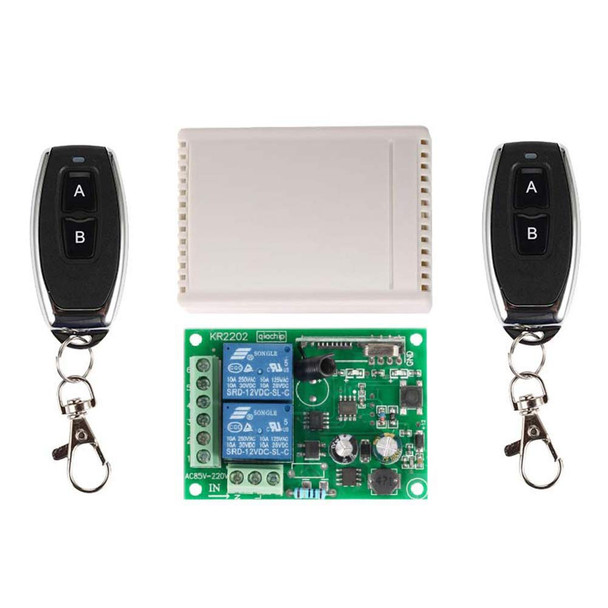

Package Includes
1pc x 433 mhz Universal Remote Control Switch 2Ch AC 220 Wireless Relay Module
1PC X Casing
1pc x receiver
1pc x 1pc RF 433 mHz Remote control
