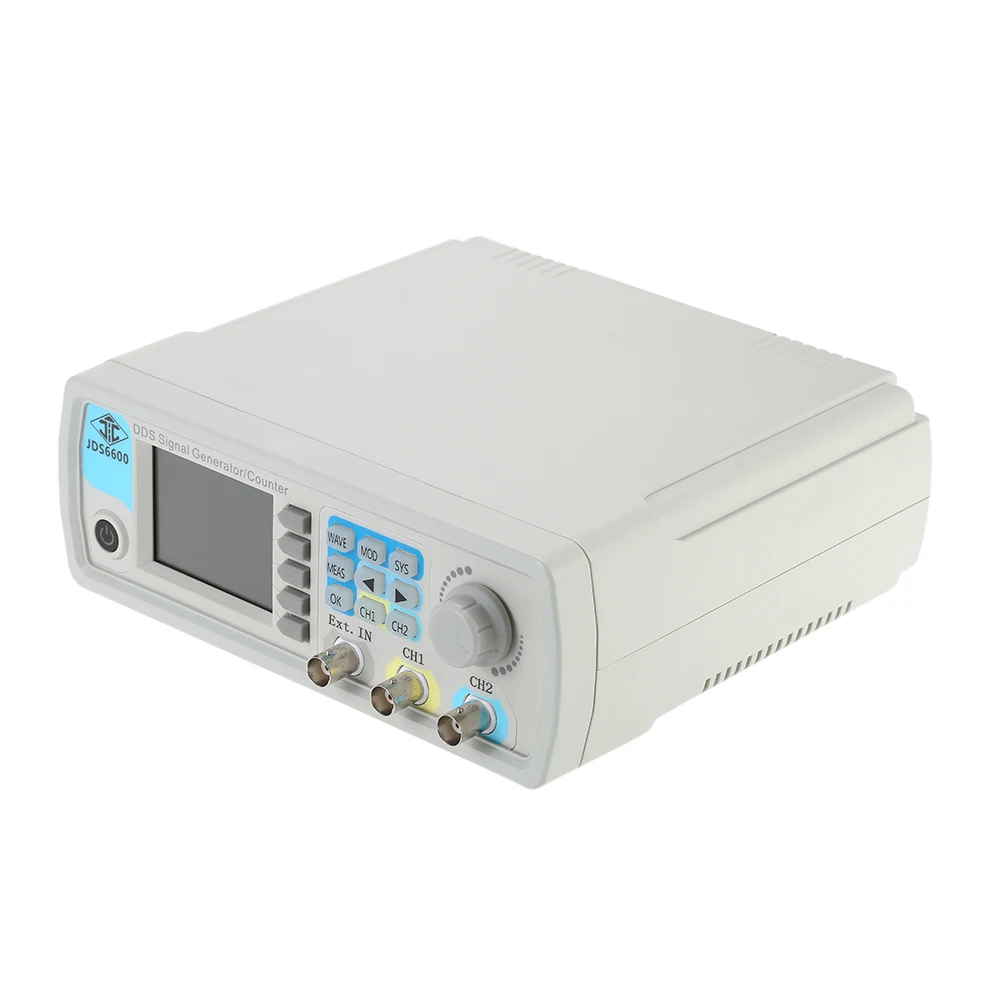

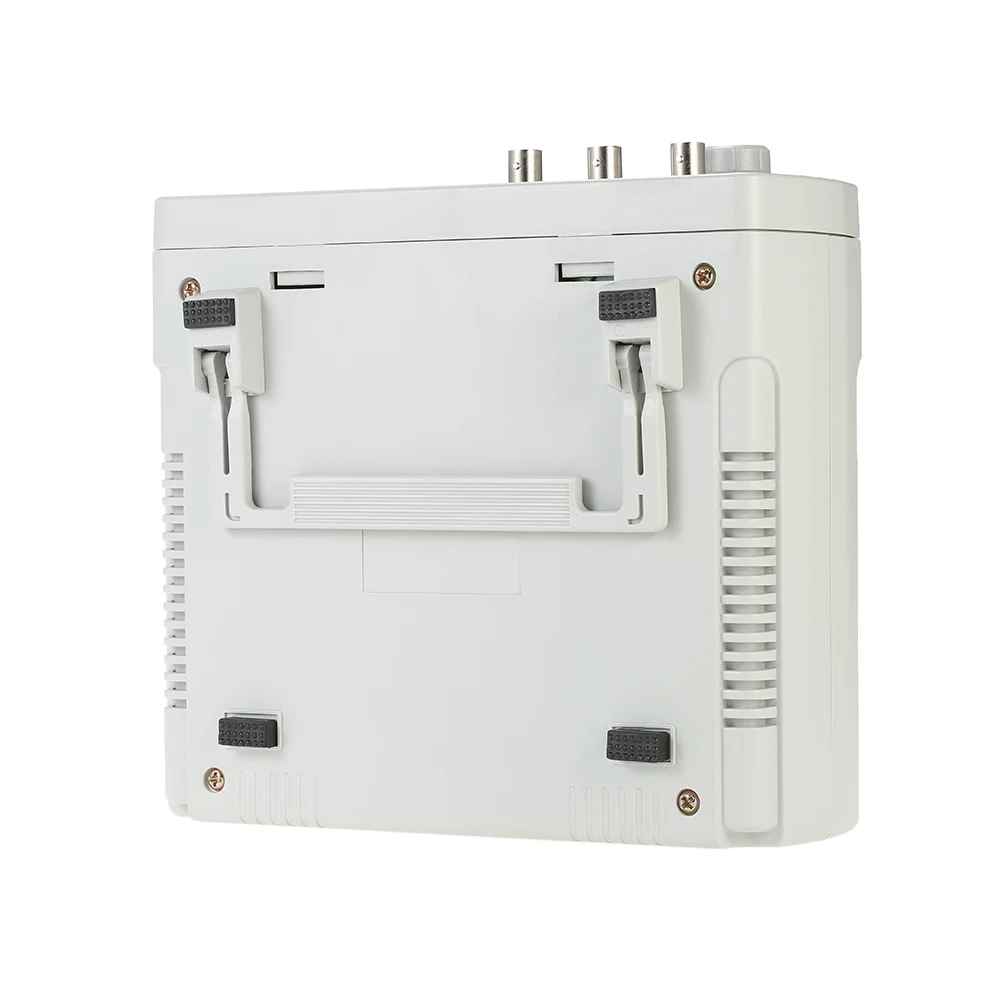

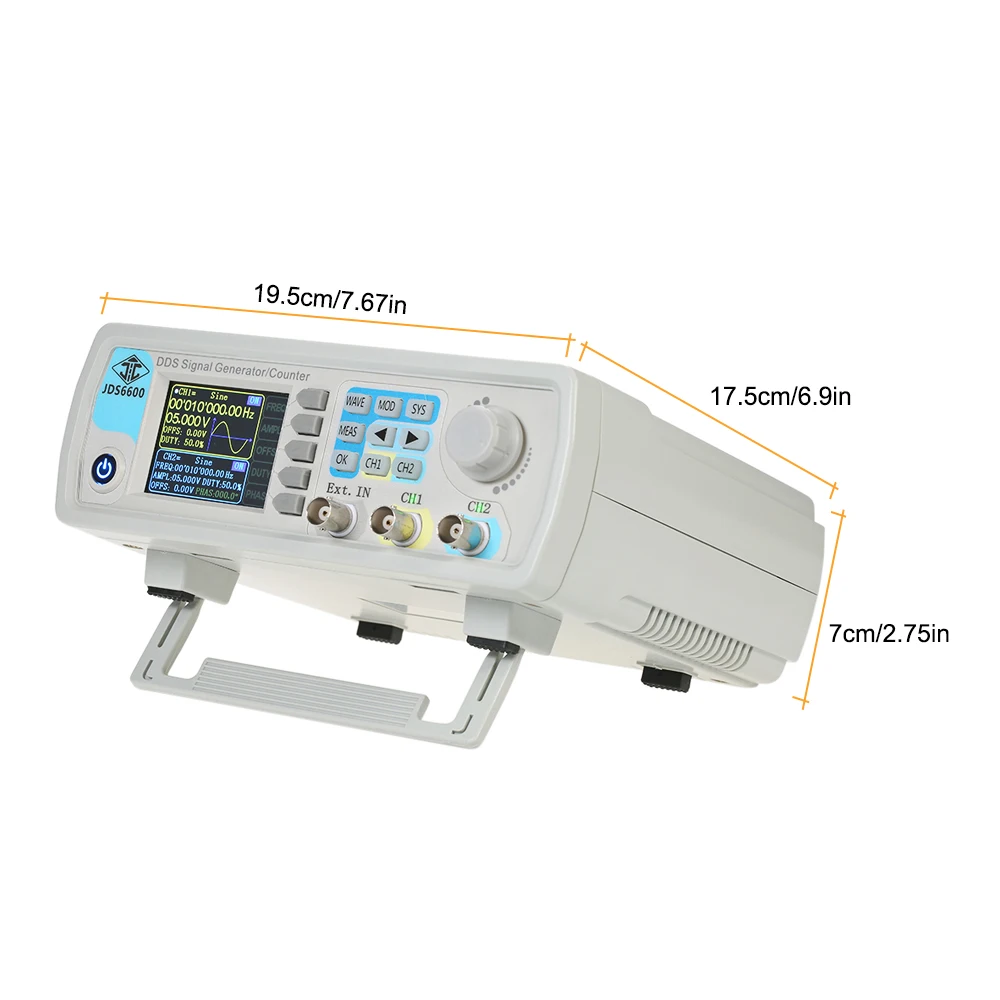

1Hz-60MHz Frequency 200MSa/s 2 channel DDS Function Generator

Frequency Characteristics

JDS6600-15M

JDS6600-30M

JDS6600-40M

JDS6600-50M

JDS6600-60M

Sine frequency range

0~15MHz

0~30MHz

0~40MHz

0~50MHz

0~60MHz

Square frequency range

0~15MHz

0~15MHz

0~15MHz

0~15MHz

0~15MHz

Triangle frequency range

Pulse frequency range

0~6MHz

0~6MHz

0~6MHz

0~6MHz

0~6MHz

CMOS/TTL digital frequency range

Arbitrary wave frequency range

Square rise time

≤30nS

≤25nS

≤20nS

≤20nS

≤20nS

Mininum Frequency resolution

0.01µHz(0.00000001Hz)

Frequency accuracy

±20ppm

Frequency stability

±1ppm/3h

Waveform Characteristics

Waveform

Sine, Square, Triangle, Pulse (duty-cycle correction),Partia Sine, CMOS, DC level, Half-wave, Full-Wave, Pos-Ladder, Neg-Ladder, Noise, Exponential Rise, Exponential Fall, Tone, Sinc Pulse, Lorentz Pulse, and 60 kinds user defined waveform.

Waveform length

2048 points

Waveform sampling rate

JDS6600-15M

JDS6600-30M

JDS6600-40M

JDS6600-50M

JDS6600-60M

200MSa/s

266MSa/s

Waveform vertical resolution

12 bits

Sine

Harmonic suppression

≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz)

Total harmonic distortion

<0.8%(20Hz~20kHz,0dBm)

Square and Pulse

Overshoot (Square)

≤5%

Duty-cycle range(Pulse)

0.1%~99.9%

Ramp wave

Linearity

≥98%(0.01Hz~10kHz)

 Output Characteristics

Amplitude range

JDS6600-15M

JDS6600-30M

JDS6600-40M

JDS6600-50M

JDS6600-60M

≤10MHz:2mVpp~20Vpp

 ≤15MHZ:2mVpp~10Vpp

≤10MHz:2mVpp~20Vpp

≤30MHZ:2mVpp~10Vpp

≤10MHz:2mVpp~20Vpp

≤30MHZ:2mVpp~10Vpp                                           ≤60MHZ:2mVpp~5Vpp

Amplitude resolution

1mV

Amplitude stability

±0.5%/5 h

Amplitude flatness

±5%(<10MHz); ±10%(>10MHz)

Waveform Output

Output impedance

50Ω±10%(typical)

Protection

All the signal output termianl can be shorted within 60s

DC Offset

Offset adjusting range

Output Amplitude >2V

0.2V

0

-9.99V~9.99V

-2.5V~2.5V

-0.25V~0.25V

Offset resolution

0.01 V

Phase characteristics

Phase adjusting range

0~359.9°

Phase resolution

0.1°

TTL/COMS Output

Low level

<0.3V

High level

1V~10V

Level rise/fall time

≤20ns

External Measurement Function

Frequency meter function

Frequency measurement range

1Hz~100MHz

Measurement accuracy

Gate time continuously adjusted between0.01s~10s

Counter function

Counting region

0-4294967295

Coupled mode

2kinds Coupling modes, DC and AC

Control mode

Manual operation

Input signal voltage range

2Vpp~20Vpp

Pulse width measurement

0.01us (resolution),  20s (MAX measuring time)

Period measurement

0.01us (resolution),  20s (MAX measuring time)

Sweep Function

Sweep channel

CH1 or CH2

Sweep type

linear sweep, log sweep

Sweep time

0.1s~999.9s

Setting range

User settings

Sweep direction

Forward, Backward and Roundtrip

Burst function

Number of pulses

1-1048575

Burst mode

Manual Trig, CH2 Trig, Ext.Tring(AC), Ext.Tring(DC)

Technical parameters

Display

Display type

2.4 inch TFT color LCD

Storage and loading

Quantity

100 groups

Location

00 to 99(Power on will load the position 00)

Arbitrary wave

quantity

1 to 60, totally 60 groups(default set 15 groups)

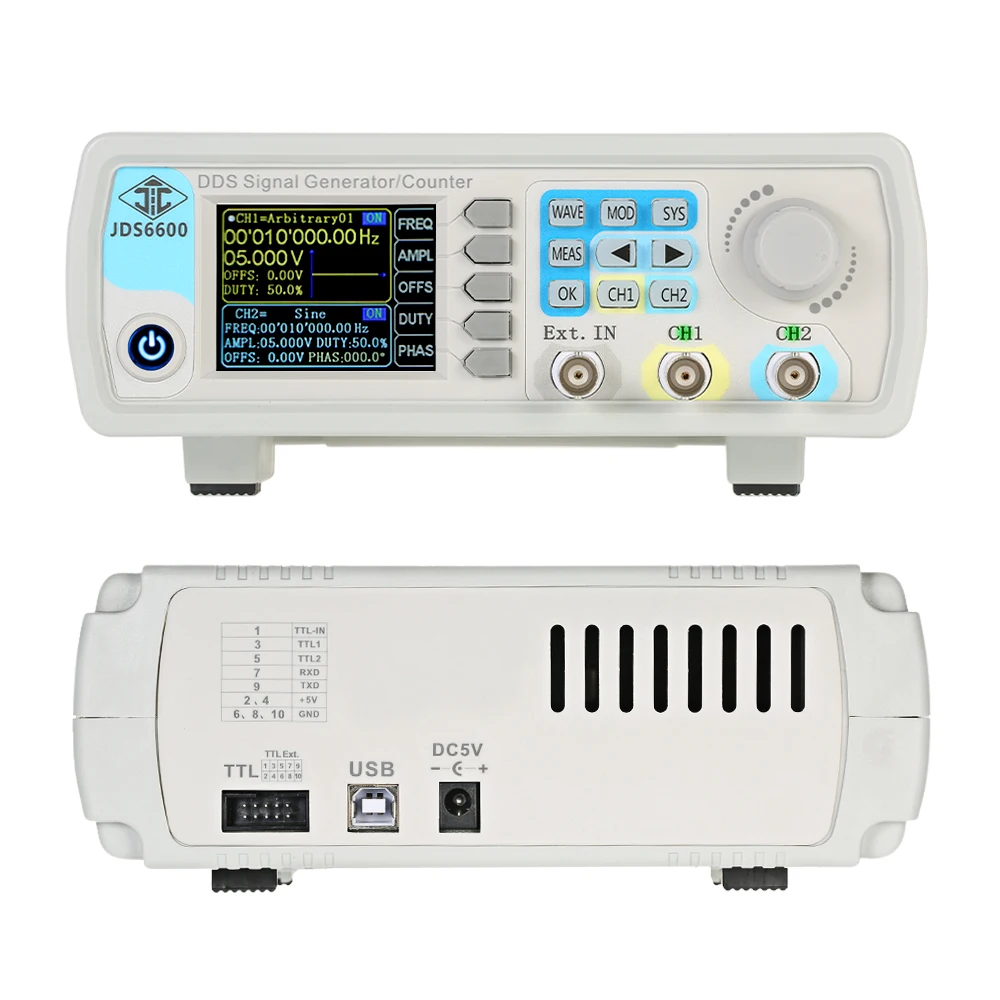

Interface

Interface mode

USB to serial interface

Extension interface -

There is serial interface of TTL level mode to be

convenient for user development.

Communication speed

115200bps

communication protocol

Open protocol

Power supply

Voltage range

DC5V±0.5V

Manufacturing process

Surface-mount technology, FPGA design, high reliability, long service life

Buzzer

User can set ON or OFF by procedure

Operating characteristics

Full button operation, knob continuous adjustment

Environmental conditions

Temperature: 0~40 ^oCHumidity:<80%
