Multitec

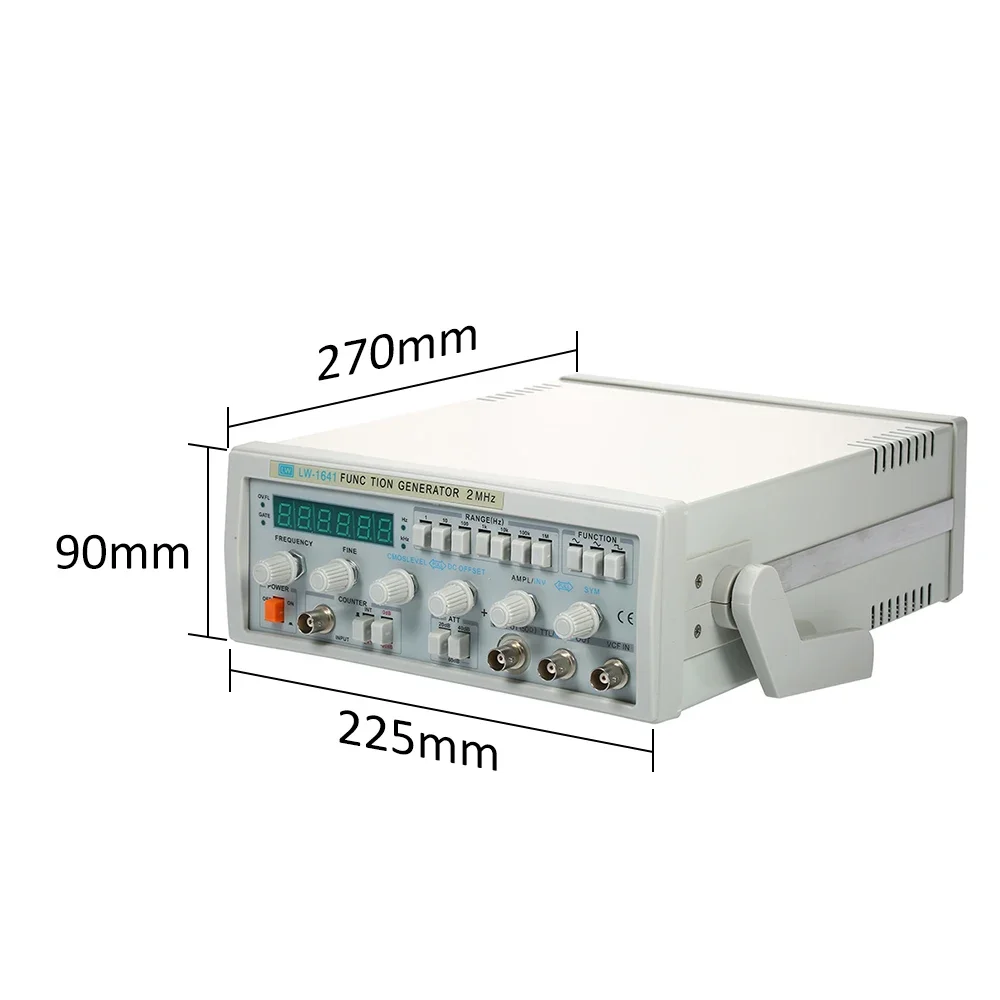

LW1645 15MHz High Frequency Function Generator
(No reviews yet)
Write a Review
- SKU:
- PEDFR11
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Product Name | Function / Signal Generator |
| Device Type | Multi-function Signal Generator |

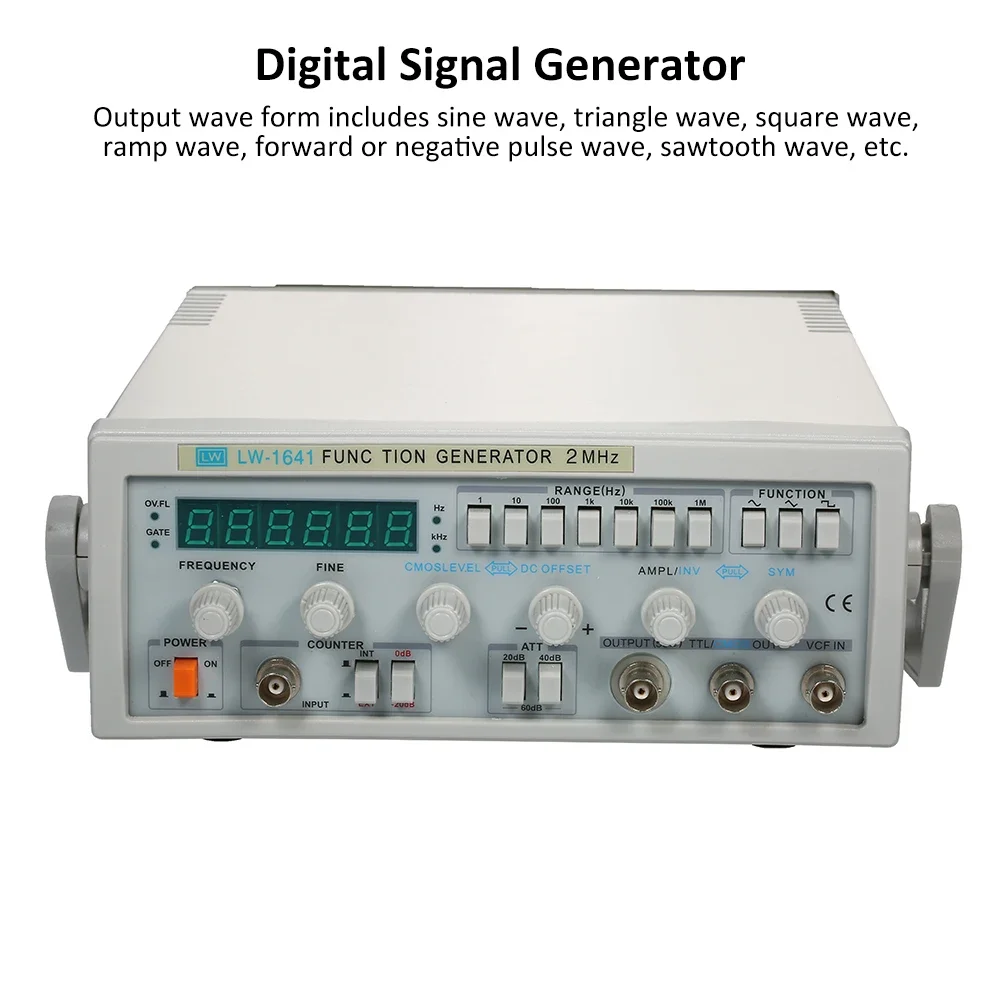

| Waveform Output | Sine, Triangle, Square, Ramp, Positive & Negative Pulse |
| Frequency Range | 0.1 Hz – 30 MHz (general), 1 Hz – 2 MHz (mode range stated) |
| Frequency Accuracy | < 0.003% ± 1 word |
| Display Type | Digital display (clear and intuitive) |
| Stability | High stability, professional-grade output |
| Output Impedance | 50 Ω ± 10% |
| Output Amplitude | ≥ 20 Vpp (no load) |
| DC Offset Control | Continuously adjustable (0 to ±10 V) |
| Symmetry Adjustment | 90:10 to 10:90 adjustable |
| Distortion | < 1% (10 Hz – 100 kHz) |
| Frequency Response | < 0.5 dB (0.1 Hz – 100 kHz), < 1 dB (100 kHz – 5 MHz) |
| VCF Input Control | Yes (Voltage Controlled Frequency) |
| VCF Range | -5 V to 0 V ±10 |
| Max VCF Control Ratio | Up to 1000:1 |
| VCF Input Signal Range | DC – 1 kHz |
| TTL Output Level | Low < 0.4 V, High < 3.5 V |
| CMOS Output Level | Low < 0.5 V, High 5 V – 14 V (adjustable) |
| Sync Output | TTL/CMOS synchronized output available |
| Frequency Counter Range | 1 Hz – 10 MHz |
| Frequency Counter Sensitivity | 100 mVrms |
| Frequency Counter Input Impedance | ≥ 1 MΩ / 20 pF |
| Max Input Voltage (Counter) | 150 V (AC + DC) |
| Rise Time | < 100 ns |
| Square Wave Rise Time | < 100 ns |
| Input Impedance | ≥ 1 MΩ / 20 pF |

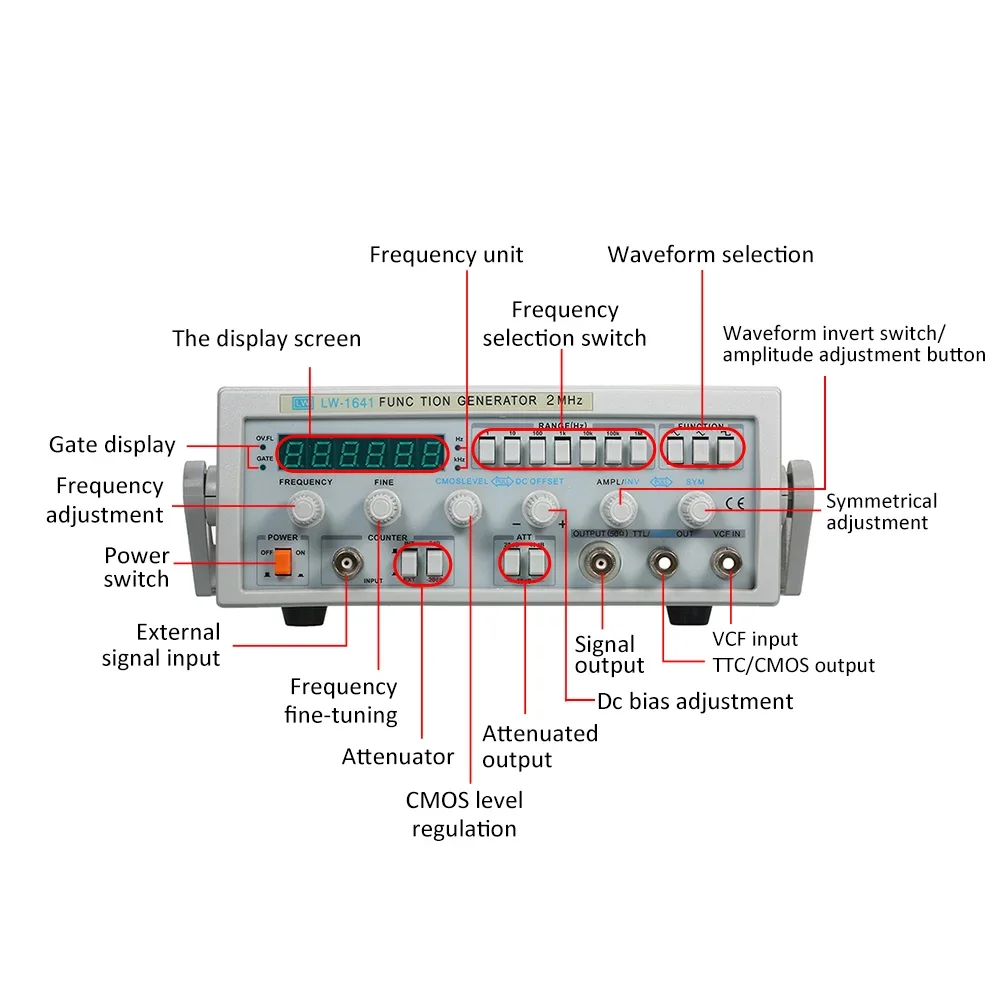

| Front Panel Design | Clean layout, intuitive controls |
| Build Material | ABS high-quality shell |

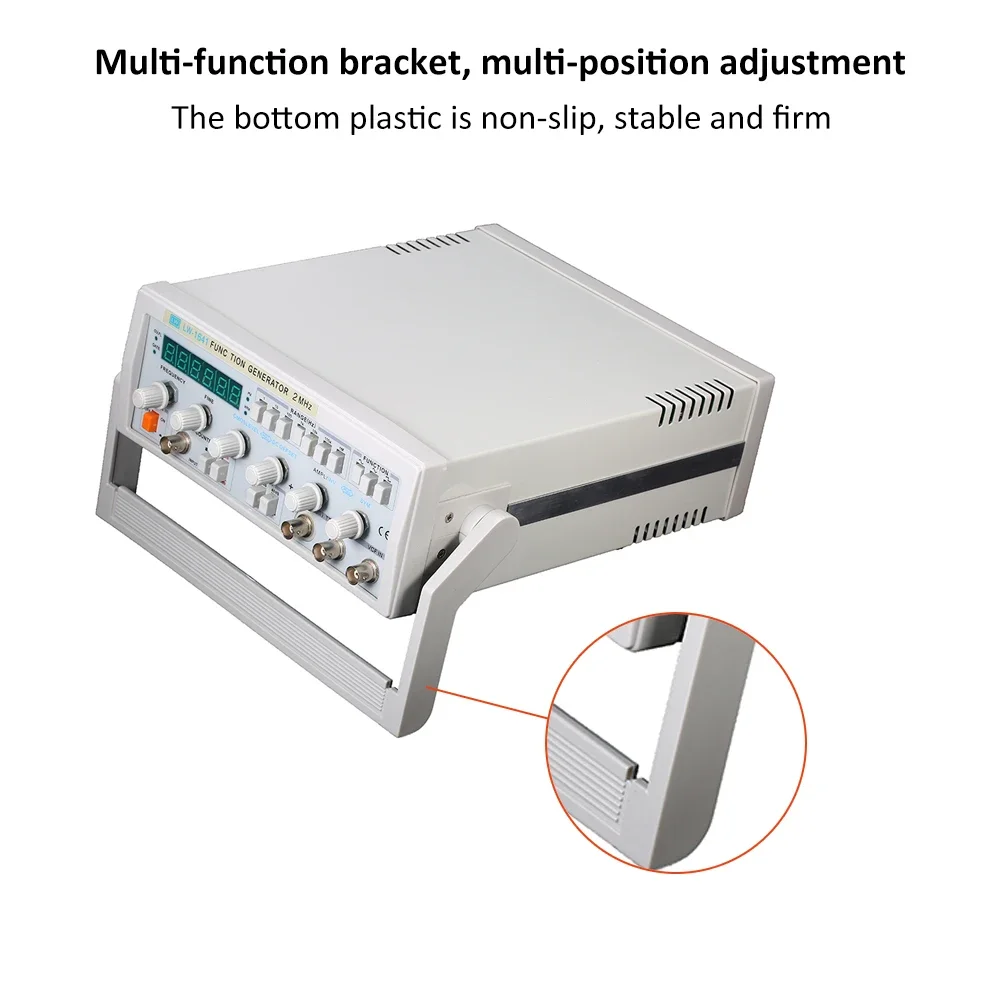

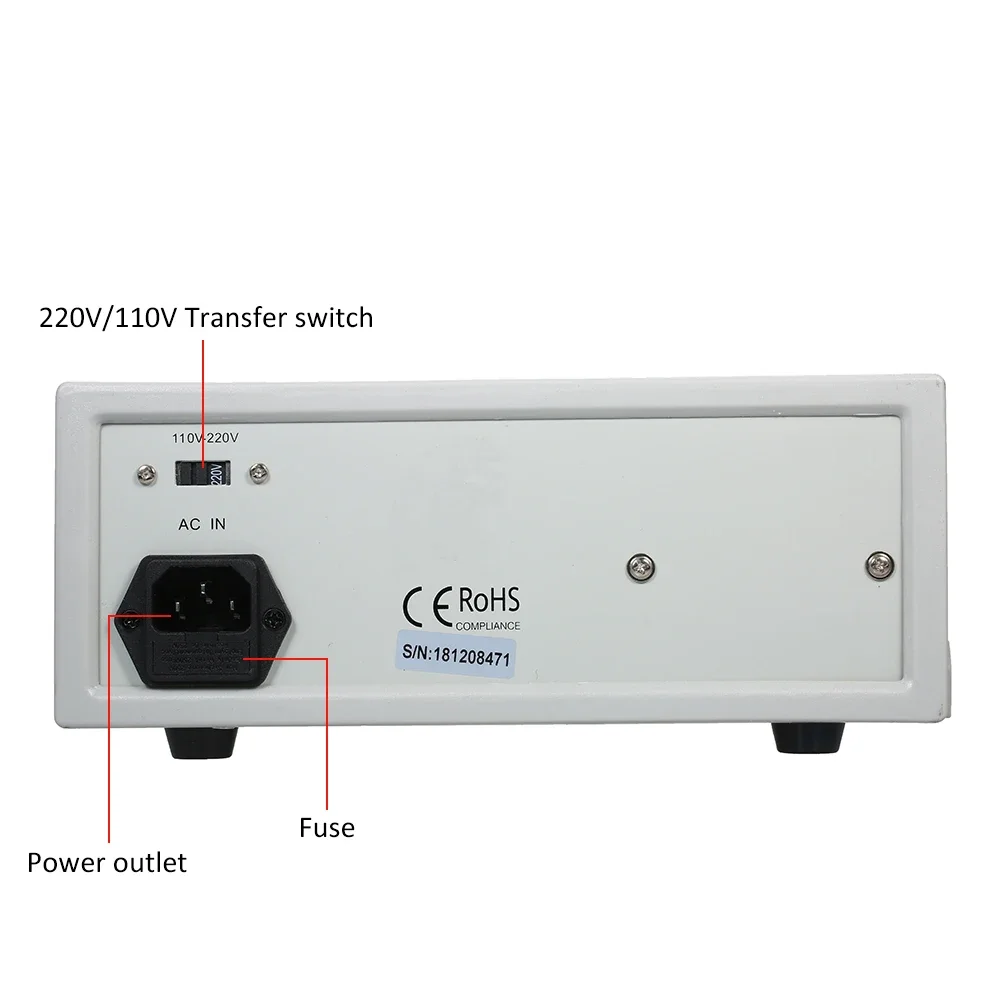

| Portability Features | Non-slip base, stable operation |
| Potentiometer Type | Multi-turn precision potentiometer |
| Power Supply | 110 V / 220 V ±10%, 50/60 Hz |
| Plug Type | EU / UK / US options |
| Applications | Teaching, electronics training, scientific research, pulse and circuit testing |
Package Includes:
1 x LW1645 15MHz High Frequency Function Generator
