CAP-511X Integrated Motr Industrial Control Trainer
(No reviews yet)
Write a Review
- SKU:
- CAP-511X
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Description

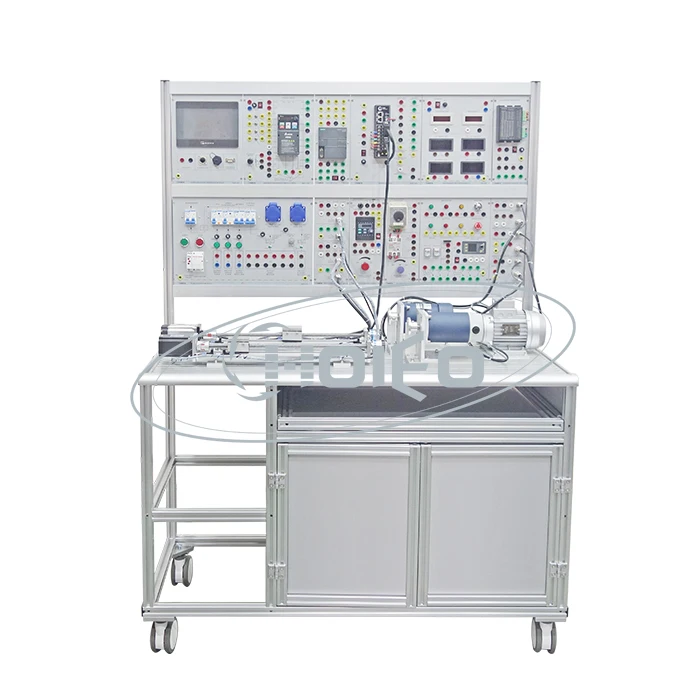

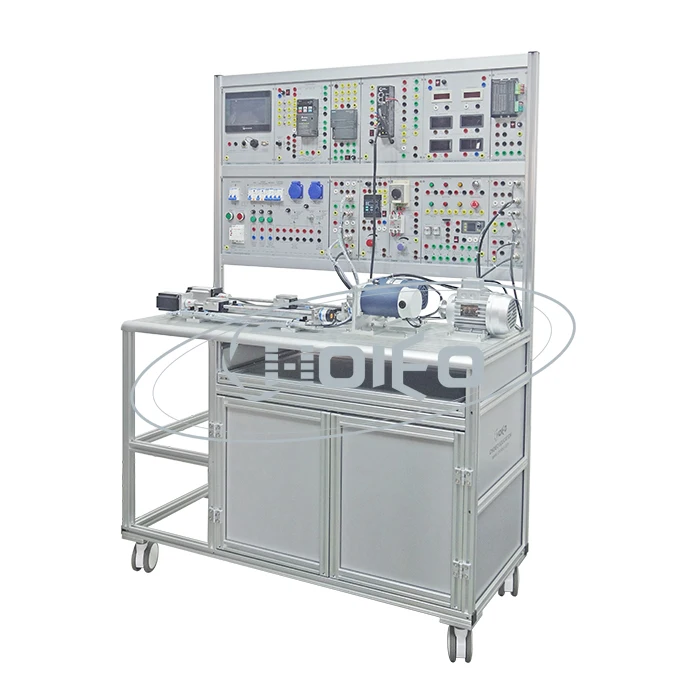

- This trainer offers training for university students covering modern control principles for single phase & three phase AC motors, DC motor, servo motor and stepping motor, with hands-on experience on different motor control techniques.
- HMI, PLC, VFD, drivers together with various control elements are adopted to realize comprehensive control solutions.
- Frame structure adopts standard aluminum profile with modular experiment panel design, thus, making it easily to build different experiment combination on the flexible two-layer structure. All the upper parts are removable including the experiment module and frame support.
- All terminals are led out on printed composite panel with 4mm safety socket and connected by full sealing sheathed pluggable connector. The complete unit is movable with lockable truckles on bottom and available for training content extension by using other CHOIEO modular electrical units.
Experiments
AC motor part
• Single phase AC motor start control (relay direct start mode & controller start mode)
• Single phase AC motor speed control
• Single phase AC motor forward and reverse control
• Single phase AC motor torque control
• Single phase AC motor multiple speed operation
• Three phase AC motor variable frequency speed control
• Three phase AC motor torque control
• Variable frequency drive pulse / PWM / sine wave control
• VFD frequency parameter setting operation via HMI
DC motor part
• DC motor start control (Relay direct start & Adjustable switching power supply reduced voltage start & Solid state relay contactless start)
• DC motor forward and reverse control (Relay interlock controlled forward and reverse)
• DC motor speed control (Power supply voltage control & Speed controller control)
• DC motor torque control (Adjustable resistor current limited control & DC motor PWM speed controller control)
• HMI operated motor start & stop
• HMI operated motor forward & reverse
Stepping motor part
• Stepping motor control method ( full-step & half-step & micro-step drive)
• Stepping motor forward and reverse control
• Stepping motor torque control
• Position control parameter setting operation via HMI
Servo motor part
• Servo motor pulse drive control
• Servo motor PWM drive control
• Servo motor forward and reverse control
• Servo motor speed control
• Servo motor torque control
• Position control parameter setting operation via HMI
