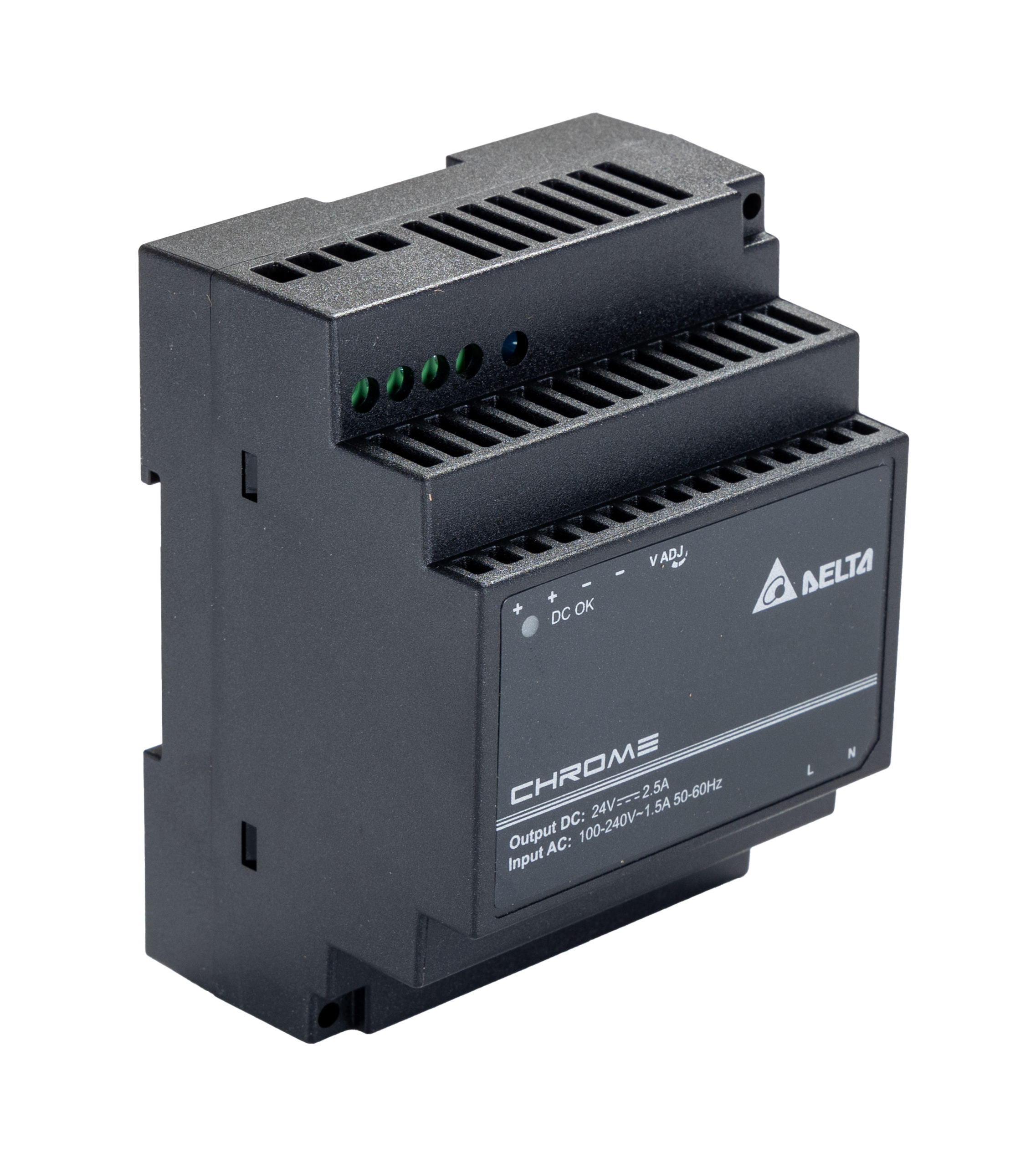

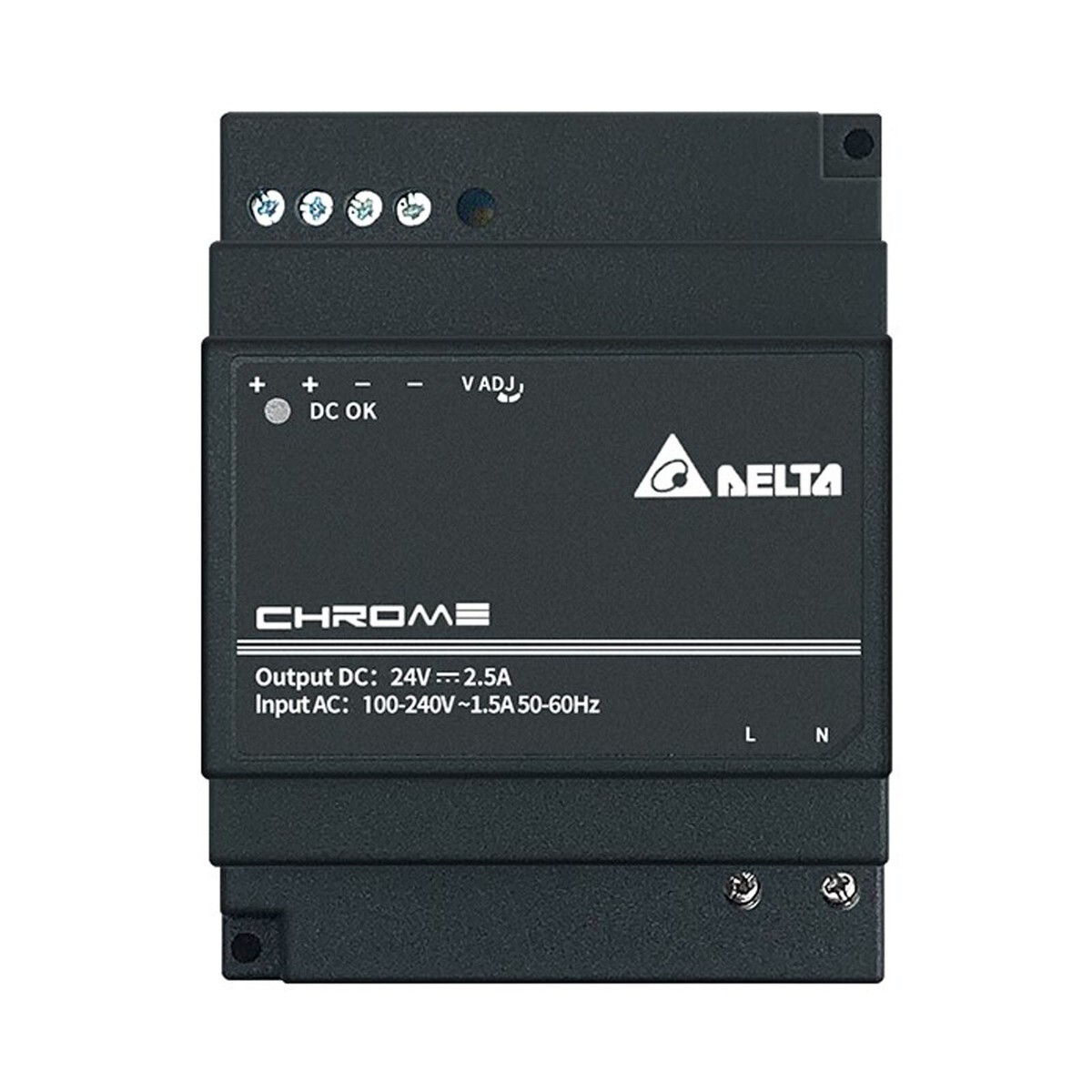

Delta DRC-24V60W1AZ switching power supply DC24V 2.5A

The Delta DRC-24V60W1AZ is a high-efficiency DIN Rail Switching Power Supply designed to provide a stable 24V DC output at 2.5A for industrial automation, control systems, instrumentation, and factory equipment. Part of Delta's CHROME Series, this compact power supply features universal AC input compatibility, Class II double insulation, and reliable protection functions, making it ideal for industrial control panels and automation cabinets. Its slim DIN rail mounting design allows easy installation while maintaining excellent performance in demanding industrial environments.

Key Features

• Stable 24V DC regulated output.
• 60W rated output power.
• 2.5A continuous output current.
• Universal AC input range (90-264VAC).
• DIN Rail mounting compatible with TS35 rail systems.
• High efficiency exceeding 88%.
• Compact design suitable for control cabinets.
• Class II double insulation (no earth connection required).
• Natural convection cooling (fanless operation).
• Green LED status indicator (DC OK).
• Low ripple and noise output.
• Built-in overload, overvoltage, over-temperature, and short-circuit protection.
• Industrial-grade reliability with MTBF exceeding 500,000 hours.
• NEC Class 2 and Limited Power Source (LPS) certified.

Technical Specifications

Protection Features

Overload Protection

Automatically enters hiccup mode when load exceeds 110% of rated current and recovers automatically once the fault is removed.

Short-Circuit Protection

Provides automatic recovery after short-circuit conditions are cleared.

Over-Voltage Protection

Latch-mode protection activates when output voltage exceeds safe operating limits.

Over-Temperature Protection

Shuts down safely under excessive ambient temperature conditions to protect internal components.

Applications

• PLC Control Systems
• Industrial Automation Panels
• Building Automation Systems
• Factory Machinery
• Process Control Equipment
• Instrumentation Systems
• Security and Access Control Systems
• SCADA Systems
• Telecommunications Equipment
• IoT and Smart Factory Installations
• DIN Rail Control Cabinets
• Industrial Sensors and Actuators

Package Contents

• 1 × Delta DRC-24V60W1AZ DIN Rail Power Supply
• 1 × Installation Manual
