Description
Feature:
Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)
Product Size: 64mmx20mmx3.4mm
Material: Metal
Charging voltage: 12.6V
Maximum output current: 20A
Maximum output power / charging power: 252W
Product Size: 64mmx20mmx3.4mm
Material: Metal
Charging voltage: 12.6V
Maximum output current: 20A
Maximum output power / charging power: 252W
| Electrical Parameters | ||||
| Item | Minimum | Typical | Maximum | Unit |
| Consumable Current | 12 | 18 | 24 | uA |
| Over charge protection voltage | 4.2 | 4.25 | 4.3 | V |
| Over charge recovery voltage | 4.1 | 4.16 | 4.2 | V |
| Over charge delay time | 500 | 1000 | 1500 | ms |
| Over discharge protection voltage | 2.35 | 2.5 | 2.7 | V |
| Over discharge recovery voltage | 2.9 | 3.2 | 3.3 | V |
| Over discharge delay time | 50 | 100 | 150 | ms |
| Conduction resistance | 10 | 12 | 14 | mΩ |
| Overcurrent protection current | 37 | 40 | 43 | A |
| Overcurrent delay time | 5 | 10 | 15 | ms |
| Normal operating current | 0 | 20 | 20 | A |
| Transient current (<10ms) | 18 | 20 | 22 | A |
| Ambient temperature | -40 | 25 | 85 | °C |
Note:
1. Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.
2. After connection it need to first charge activation, then will have the output.
3. Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better. Please buyers know the
professional knowledge of this module before buying
Package included:

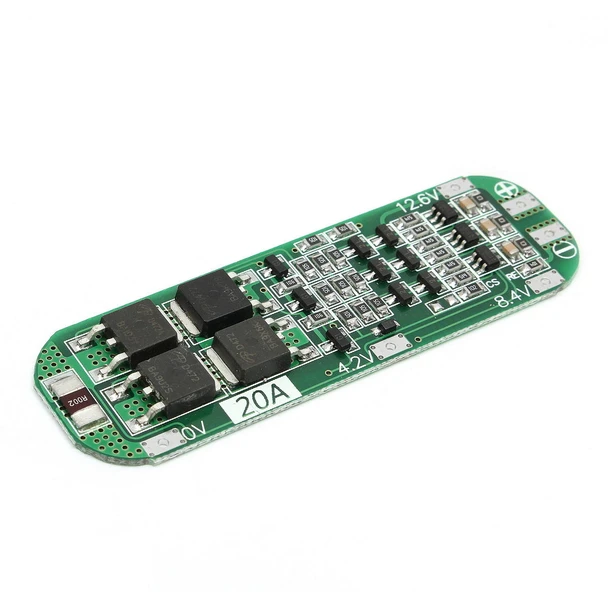

1 x 3S Li-ion Lithium Battery 18650 Charger Protection Board
1 Review
-
Best product
Works as intended and recovers quickly after short circuit. The best BMS ever.
