Description
Features:
1.High-precision voltage detection function for each battery;
2.3 overcurrent detection function;
3.Through the MOS tube can control the battery charge and discharge;
4.Wide operating temperature range: -40 ° C ~ +85 ° C;
5.Low current consumption
Specifications:
1. Charging voltage
DC 9V CC / CV (MAX:12V)
2. Current
Single current consumption (consumption) ≤6uA
Maximum sustained discharge current:4A
3. Overcharge protection
Overcharge detection voltage:4.29V Accuracy ≤±0.025V
Overcharge detection delay time:1s
Overcharge recovery voltage:4.05V Accuracy ≤±0.025V
4. Over-discharge protection
Over-discharge detection voltage:3V Accuracy ≤±0.1V
Over-discharge detection delay time:128ms
Over discharge recovery voltage:3.2V Accuracy ≤±0.1V
5. Over-current protection
Overcurrent detection voltage:200mV
Overcurrent detection current:9.8A
Overcurrent delay time:12ms
Recovery Status: Auto Recovery
6. Short-circuit protection
Detection status:external short circuit
Detection delay time:≤ 50us
Recovery Status:Auto Recovery
7. Internal resistance:protection circuit:(MOSPET) ≤ 21mΩ
8. Temperature
Operating temperature range:-40 ° ~ +80 °
Storage temperature range:-40 ° ~ +125 °

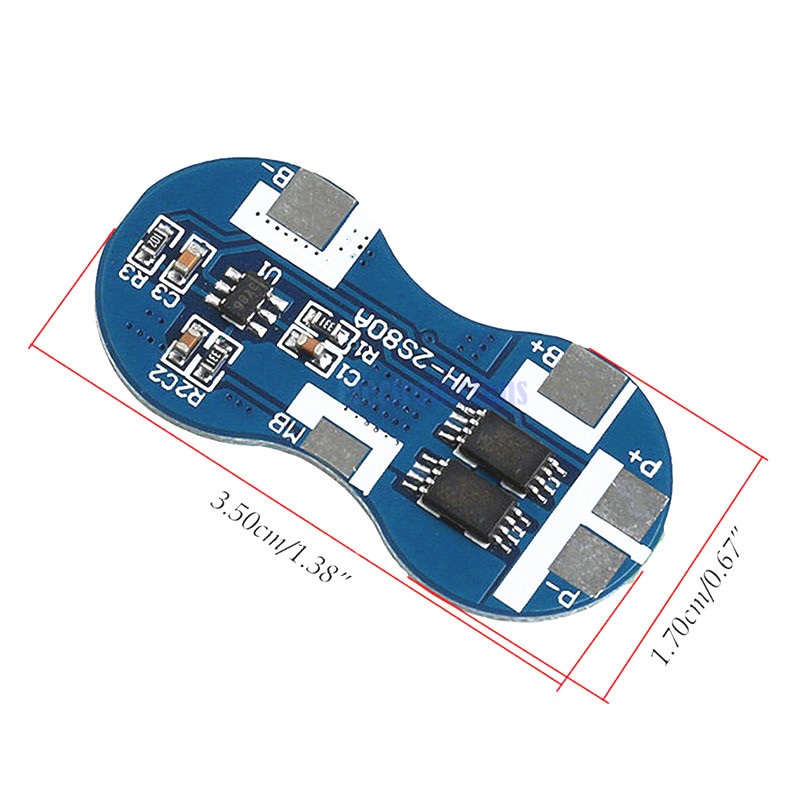

Product size: about 3.50*1.70cm/1.38"*0.67"
No Retail Packages
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Included:
1PCS*2S 2 Series 18650 Li-ion Lithium Battery Charger Protection Board 4A 7.2V
