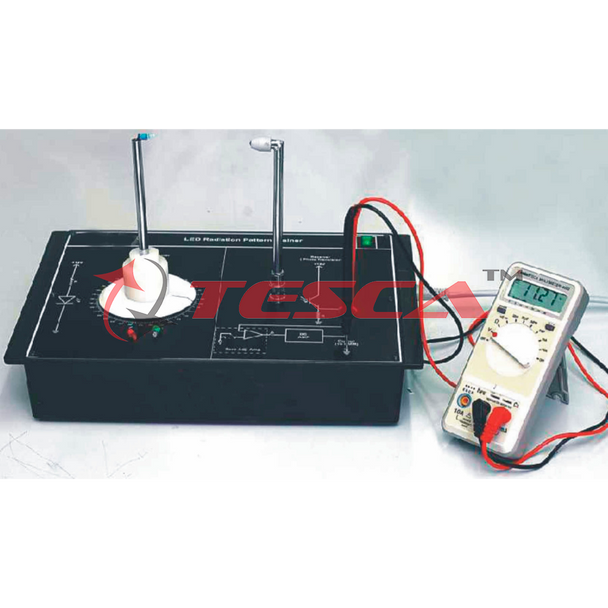

LED Radiation Pattern Trainer - Order Code 28519

(No reviews yet) Write a Review

SKU:: 28519
UPC:
MPN:
Shipping:: Calculated at Checkout

KES0.00

Quantity:

Frequently bought together:

Description
0 Reviews

Description

Order Code: 28519
Name: LED Radiation Pattern Trainer

SPECIFICATION

Trainer is designed to learn the LED characteristic (Input LED angle vs. output voltage). LED is a commonly used semiconductor device that emits incoherent narrow spectrum light. LED plays a very important role in todays industrial and domestic applications. In 28519 we use three LEDs (Red, Blue and Green) . The characteristic is widely used in various transmitting and receiving scheme and data communication.28519 trainer is a self contained experiment module which comes with detailed manual and required accessories.

Technical Specification

Transmitter :
Wavelength (nm) : 565 nm (For Green light)
LED Rotation : 0 -360 deg with resolution of 1 deg
Transmitter circuitry: LED mast
Wavelength (nm) : 700 nm (For Red light)
Wavelength (nm) : 430 nm (For Blue light)
Receiver : Wavelength (nm) : 940nm
Receiver circuitry : Silicon phototransistor & Zero adjustment circuit.
