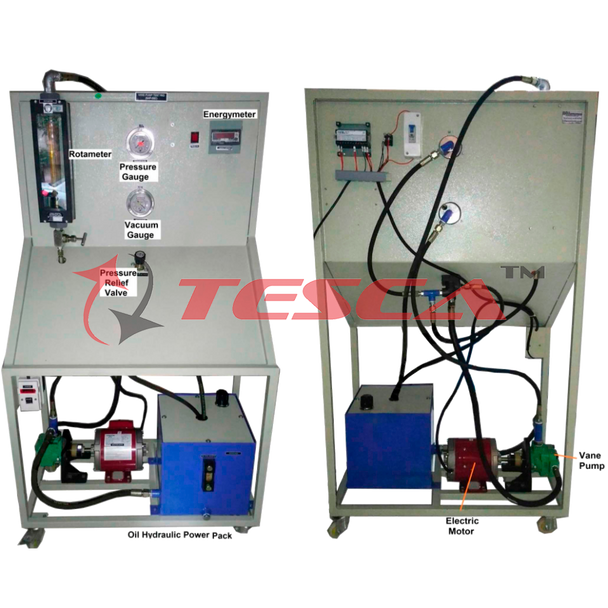

Vane Pump Test Rig - Order Code 52337

SPECIFICATION

The Vane Pump Test Rig System (52337) outlines the basics of the operations and principle of working of Vane Pump.

Features

1. Compact Ergonomic Design.
2. User Friendly, Self Explanatory Systems.
3. Leak proof Safety Measures, sturdy piping & Robust Construction.
4. Training Manuals mimic Charts for Operation Ease.
5. System Frame with Caster Wheel Arrangement for ease in movement.
6. M.S. fabricated powder coated with necessary fittings, couplings and hydraulic mountings.
7. Inbuilt Safety Measures to avoid improper usage.
8. The self-contained unit.
9. Optional components are available to allow fault operation and diagnosis training.
10. Caster wheel mounted movable frame

Experiments

1. Study of characteristics of Vane pump

Services Required

1. 1φ Electric Supply of 230 VAC, 50Hz

System Dimensions- 2.75 Ft. (L) X 1.75Ft. (W) X 4.75 Ft (H)
Weight: Approx. 77Kgs
