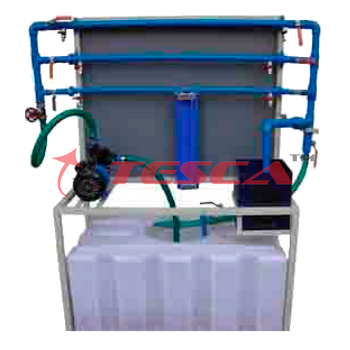

Fluid Mechanics Laboratory Setup - Test Rig for Bernoulli's Theorem - Order Code 52371

SPECIFICATION

Technical Specification
    No.     Item Name     Technical Specifications
    1.     Sump tank-     MOC: PVC, Capacity: 175 Litre, Non Corrosive.
    2.     Centrifugal Pump-     1”/ ½’’H.P., 1φ230 V AC supply
    3.     Process tank     MOC: P.P. 5 mm thick, dimension: 6”X6”X24”.
    4.     Measuring Tank     MOC: P.P. 5 mm thick, dimension: 8”X8”X10”.
    5.     Gate Valve     MOC: Brass, ½” Size.
    6.     Ball Valve     MOC: Brass, ½” Size.
    7.     Manometer-     U-Tube manometer, H: 300 mm, Panel mounting type.

List of Experiments

1. Study of Bernoulli’s Theorem.

Features

1. Compact Ergonomic Design.
2. The self-contained unit.
3. User Friendly, Self Explanatory Systems.
4. Robust Construction.
5. Enhanced Electrical Safety Considerations.
6. Training Manuals mimic Charts for Operation Ease.
7. Inbuilt Safety Measures to avoid improper usage.
8. Modern industrial components are used for operating.
9. Optional components are available to allow fault operation and diagnosis training.
10. Caster wheel mounted movable frame

System Dimensions

1. 3 Ft. (L) X 2Ft. ((W) X 3.5 Ft (H)

Services Required

1. Electric Supply of 1φ 230 VAC, 6A, 50Hz.
