CAG-111 Mechatronics Training Module (3 station)

Description

• This is a comprehensive mechatronic training and simulation system, it offers a complete solution for the study of modern factory automation and integrates a variety of technological applications.

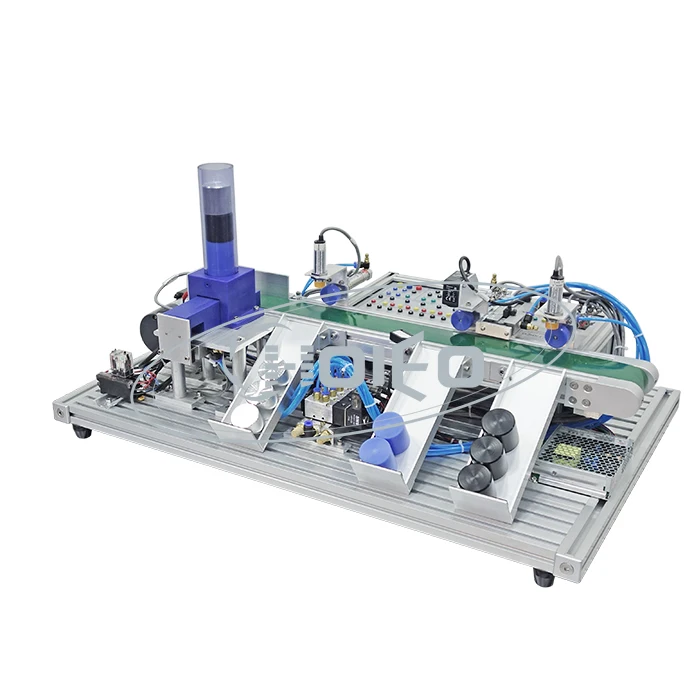

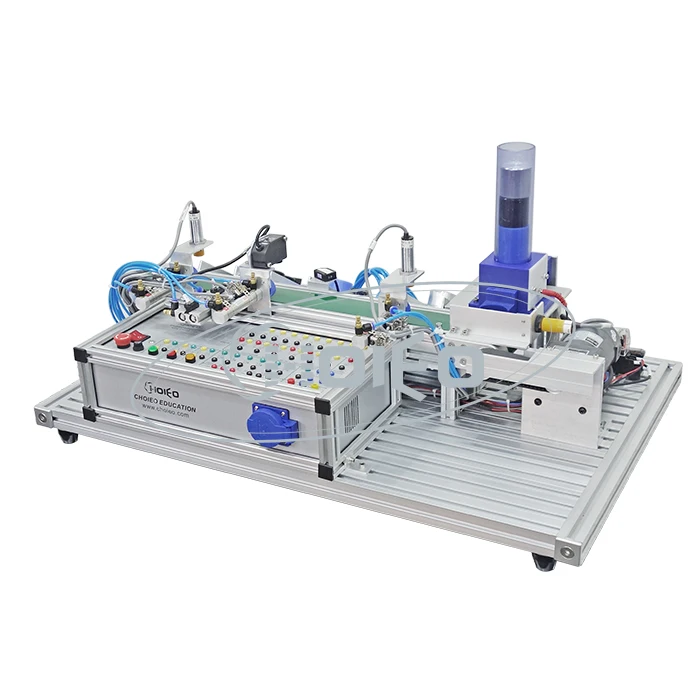

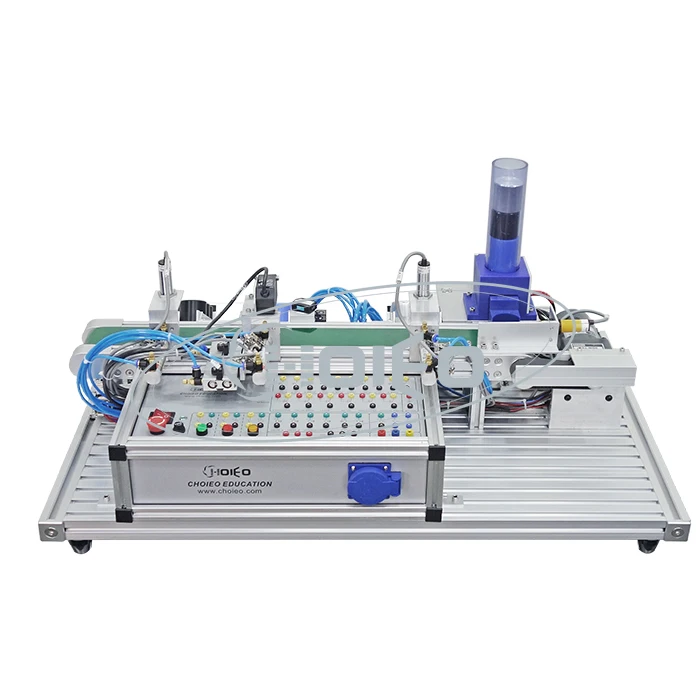

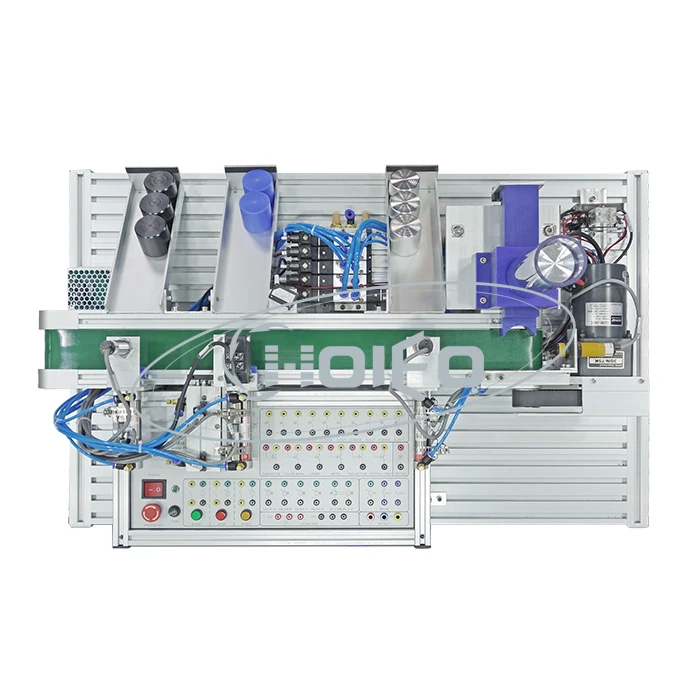

• Industrial grade components and control methods are used to fully demonstrate the factory production line system, including feeding unit, transfer unit, sorting unit and electrical control box.
• The input and output signal cables of each actuator are led to 2mm sockets on electrical control panel, making it
easy to be connected with external PLC control mainframe to perform complete training. • Standard grooved aluminium profile is used as the mounting base of complete system, making the complete system easy to be installed or modified for further exploration.



TRAINING CONTENT















Mechanical Structure Application
• Biaxial cylinder and guide slot formed material blanking mechanism

• DC motor and conveyor belt formed transfer mechanism

• Cylinder and sensor formed material separation function

Pneumatic Structure Application

• Bus board

• Cylinder

• Solenoid valve

• Direction & Speed & Sequence control



Electrical Control Application

• Capacitive sensor, laser sensor, reflective sensor, fiber optic sensor, metal sensor, magnetic sensor & color sensor

• Single solenoid and double solenoid valves

Programming Application

• Sequential structure, selective structure and cycle structure

• Switching value realized cylinder motion control, conveyor start/stop control, indicator controland sensor feedback.
