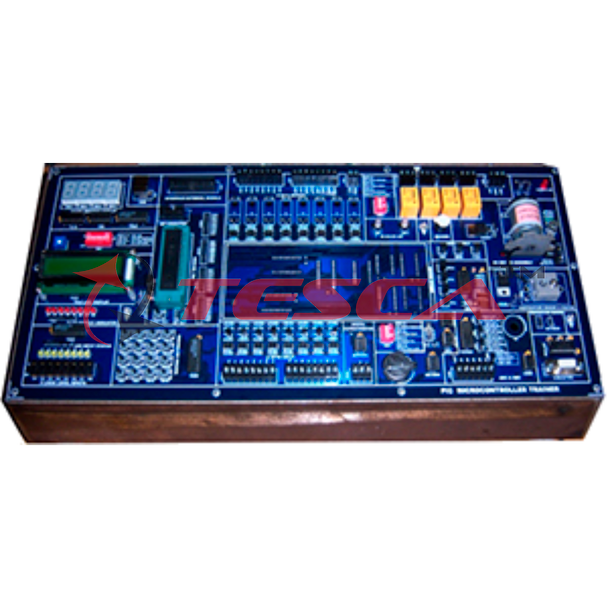

PIC Embedded Trainer Kit - Order Code 43505

SPECIFICATION

Specifications

•  CPU: Microchip 18F4550 operating on crystal frequency @ 20MHz.

             On-chip 32KB Flash memory and 2048 byte SRAM.

• On-chip 256byte EEPROM.
• On-chip UART, SPI, I2C, PWM.
• On-chip 8 Channel 10 bit ADC.
• On-chip 32 I/O Lines are provided in four 16 pin Connector.
• CPU provided on ZIF Socket.
• ISP Programming facility.
• 10 pin ISP Connector provided on board for Programming.
• ISP selection Key is provided
• USB based JTag Programmer/Recorder in metal enclosure.
• On-board Reset Key.
• Mini Signal Generator
• Fixed TTL clock of frequencies 10 Hz, 100 Hz, 1KHz & 10 KHz.
• Onboard Applications
• 8 LED's to display Digital Output.
• 8 Switches to give Digital Input indicated by LED's.
• 2 Bicolor LEDs to display.
• 16x2 Alphanumeric LCD backlit display.
• 4x4 Matrix Keyboard.
• 500 Tie Points Bread Board Area provided.
