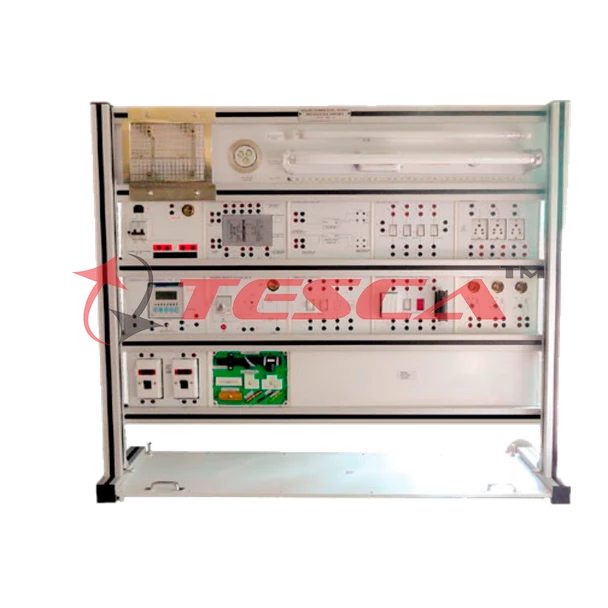

Home/Commercial Wiring Installation Trainer - Order Code 46629

SPECIFICATION

1.  1phase AC input supply panel (TMT16A)
   •  1ph,. MCBs of 4A/1.6A-2Nos
2. Grounding * protection panel (TMT36)
   •  Consists of a 2 pole Earth Leakage Circuit Breaker (ELCB) 25A with current imbalance of 30mA.
   •  One No push button to create Earth leakage fault.
   •  One SPDT to select HI-leakage or LO-leakage fault.
   •  One 15W bulb for Hi-leakage fault & 22KW resistor for Lo leakage fault
3.  Integrated AC (1phase) measurement (TMT20F)
   • 1nos of Digital meter for 1ph. parameter V, l, W, Wh, VA, VAR, Hz, etc.
   • Current specs = 1A/5A for 1ph. meter (170-250V).
4. AC power supply panel (TIT1)-2nos
   • AC OSARAM power supply for metal halide lamp 70W (max,5KV).
   • Input 230VAC/0.4A
5. DC power supply panel (TIT2)
   • SMPS power supply for LED
   • Input 230VAC, Output 12V/5A,60W
   • DC supply for down lighter
6. Switches panel (TIT3)
   • One way switch = 2nos
   • Two way switch = 2nos
7. Buzzer/bell switch/Neon panel (TIT4)
   • Buzzer/bell,I/P230VAC
   • Bell switch
   • Neon lamp indicator
   • Kitkat fuse
8. Dimmer/Fault panel (TIT5)
   • Dimmer
   • Fault = 2nos
9. Sockets panel (TIT6)
   • Three pin AC mains Sockets = 3nos
   • 230V/10A rating
10. DC switch panel (TIT7)
    • Double pole single through four terminal S/W = 2nos
    • Rating 32A/240VAC
11. Lamp panel (TIT7)
    • Incandescent lamp - 3nos, CFL tube = 1 no
12. Various lamp/Tubes provided
    • Metal Halide lamp (70W)
    • Electronic tube
    • Point source LED
    • Strip LED
    • Electric Tube
13. Display panel (TIT8) Showing Various wiring accessories
    • Conduit, Elbow joints, casing taping,
    • Cleats, Batten with clips, cable/wires etc.
14. Wiring practice board (1100X300X20 mm)
• A replaceable 20 mm particle / PVC board is mounted horizontally between legs like a drawer. It is used for wiring practice by students using self tapping screws &   wiring accessories use drilling machine to drill holes. All banging by hammer.
