SOP and POS Implementation Trainer - Order Code 38699

(No reviews yet) Write a Review

SKU:: 38699
UPC:
MPN:
Shipping:: Calculated at Checkout

$0.00

Current Stock:

Quantity:

Frequently bought together:

Description
0 Reviews

Description

Order Code: 38699
Name: SOP and POS Implementation Trainer

SPECIFICATION

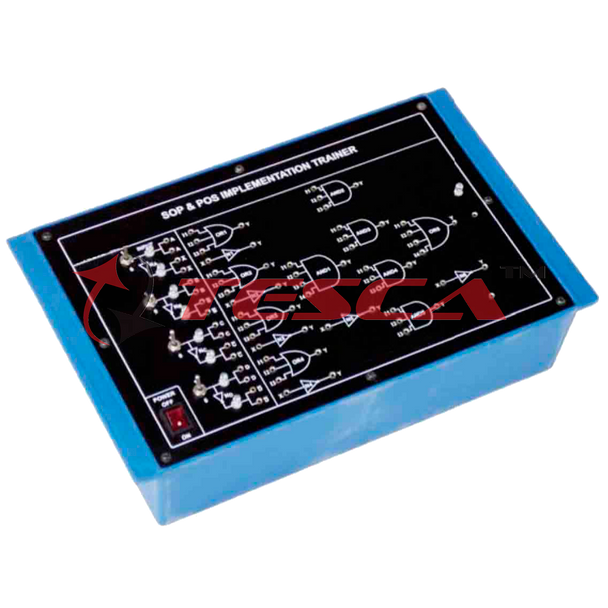

38699 SOP & POS implementation Trainer is compact, ready to use digital electronics experiment board. It is useful for students to get a practical insight into the implementation of different canonical forms. The various applications of a canonical forms are representing any boolean function as a product of sum or sum of product. Trainer Has built in clock source, logic high low input facility and LED`s for visual indication of input output states.

OBJECT

Design a function sing K-map and verify its performance using SOP and POS FORM.
Use QUINE McCLUSKEY method for designing function and realize its Nor Or implementation.

FEATURES

Stand alone System
Easy illustration of different types of canonical forms.
LEDs for visual indication of input and output logic states.
SPDT switches for input lgic selection.

TECHNICAL SPECIFICATION

DC Power Supply : 5 V DC
Logic levels
- 5 V : High (logic 1)
- 0V : Low (logic 0)
LED indication : LED will be ON for logic high or '1' state and Will be OFF for Logic low or '0' state
Weight : 1 KG (Approx)
Dimensions (mm) : W340 X H125 X D210
