Description

Order Code: 10952
Name: CCTV Trainer

SPECIFICATION

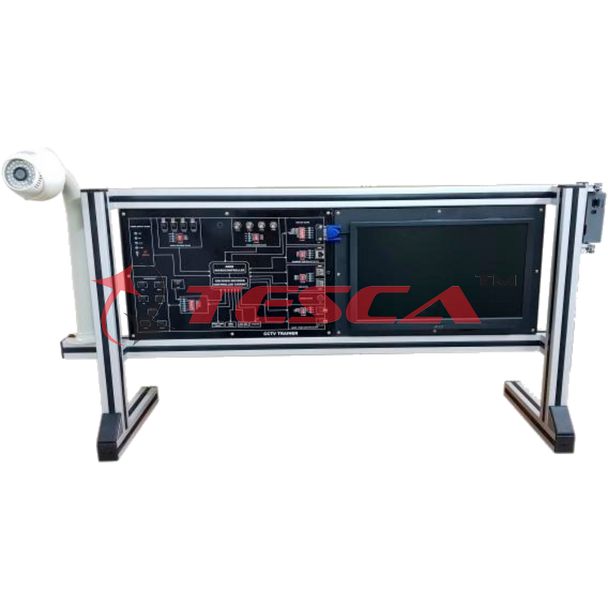

10952 Bench for CCTV Trainer is an ideal training equipment to teach the operation of Close circuit Video. The complete Block of CCTV is printed on single PCB for easy understanding of function of different blocks. Test points allow the analysis and monitoring of the signals in different sections. By using the fault simulation method, it is possible to introduce the most common breakdown and their rectification.

Specifications

Display : 9"Diagonal Size ,Flat panel LED/LCD display
Interface
- Analog Video Input : RGB VGA (HD-15)
- Analog Video Input : S-Video
- Composite Video Input : RCA Yellow,
- Audio Input : RCA- Left (White), Right (Red)
- Antenna RF Input : RF - SDTV/ PAL
On Board Blocks

Audio Decoder Block : 4 no's of Audio Channel output
Video Decoder Block : 4 no's of Video Channel output
Display Block : VGA Connector is provided
Ethernet Controller Block : RJ45 Connector is provided
USB Block : USB Connector is provided
Buzzer Block : Miniature buzzer is provided
AudioNideo Amplifier Block : Audio and Video out is provided
IR Block : IR LED is provided
Keypad Block : Different Keys are provided for Control.
