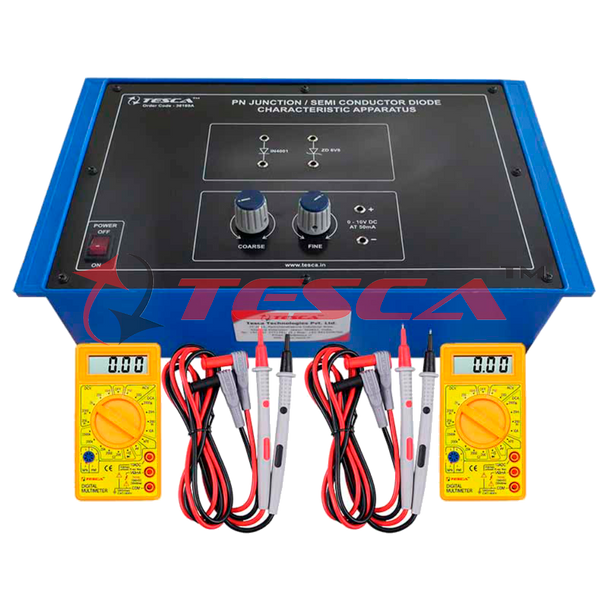

PN Junction / Semiconductor Diode Characteristic Apparatus - Order Code 36169A

SPECIFICATION

Order Code - 36169A Experimental Training Board has been designed specifically for plotting the forward and reverse bias characteristics of a Silicon semiconductor Diode, and a Zener Diode. The board is absolutely self contained and requires no other apparatus.

Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

1. To study and plot the forward & reverse bias characteristics of a Silicon semiconductor Diode.
2. To study and plot the forward & reverse bias (breakdown) characteristics of a Zener Diode.

Features:
The board consists of the following built-in parts :

1. 0-10V D.C. at 10mA, continuously variable regulated Power Supply with low ripple & hum and integral current limiting resistor.
2. A Silicon semiconductor Diode mounted behind the panel.
3. A Zener Diode mounted behind the panel.
4. Adequate no. of other electronic components.
5. Mains ON/OFF switch, Fuse and Jewel light.
6. The unit is operative on 230V ±10% at 50Hz A.C. Mains.
7. Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
8. Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms.
9. Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
