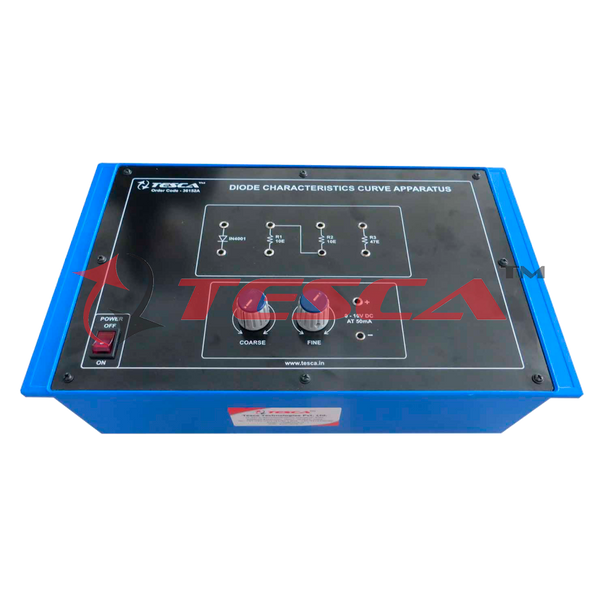

Diode Characteristic Curve Apparatus - Order Code 36152A

SPECIFICATION

Experimental Training Board has been designed specifically for plotting Characteristics of Ge & Si Semiconductor Diodes. The board is absolutely self contained and requires no other apparatus.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object:
01. To Study and Plot the Forward and Reverse Bias characteristics of (Si) Semiconductor Diodes.
02. To Determine the Static and Dynamic resistances of Forward Biased p-n junction of the given Diodes.

Features:
The board consists of following built-in parts:
01. 0-10V D.C. at 50mA, continuously variable with Coarse & Fine Pots, regulated Power Supply.
02. Si Semiconductor Diodes.
03. Adequate no. of other electronic components.
04. Mains ON/OFF switch and Fuse.
05. The unit is operative on 230V ±10% at 50Hz A.C. Mains.
06. Adequate no. of patch cords 4mm length 50cm
07. Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections /observation of waveforms.
* Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
