Description
Order Code: 36254
Name: Applications of Operational Amplifier with power supply
SPECIFICATION

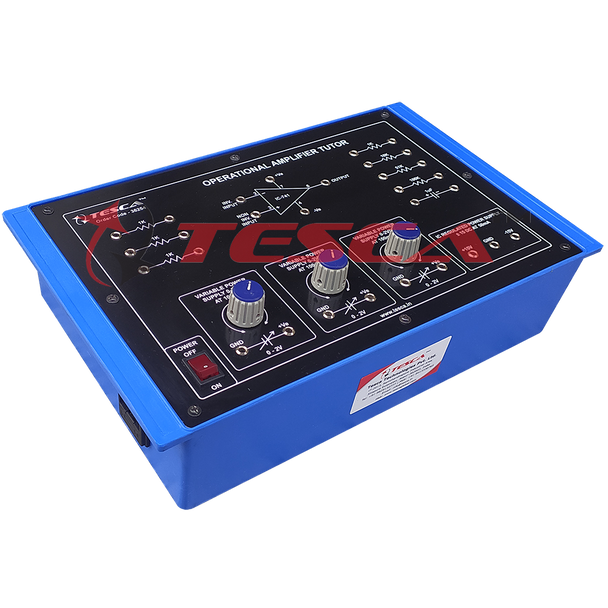

Experimental Training Board has been designed specifically for the study of basic Applications of Operational Amplifier (OP-AMP) using IC- 741.
Practical experience on this board carries great educative value for Science and Engineering students.
Object:
To study the following applications of Operational Amplifier:
01. Inverting Amplifier.
02. Non-Inverting Amplifier.
03. Summing Amplifier or Adder.
04. Voltage Follower or Buffer Amplifier.
Features:
The board consists of the following built-in parts :
01. ±15V D.C. at 50mA, IC Regulated Power Supply.
02. Three 0-2V D.C. at 100mA, continuously variable regulated Power Supplies.
03. OP-AMP IC 741.
04. Adequate no. of other electronic components.
05. Mains ON/OFF switch, Fuse and Jewel light.
* The unit is operative on 230V ±10% at 50Hz A.C. Mains.
* Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
* Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms.
* Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
Practical experience on this board carries great educative value for Science and Engineering students.
Object:
To study the following applications of Operational Amplifier:
01. Inverting Amplifier.
02. Non-Inverting Amplifier.
03. Summing Amplifier or Adder.
04. Voltage Follower or Buffer Amplifier.
Features:
The board consists of the following built-in parts :
01. ±15V D.C. at 50mA, IC Regulated Power Supply.
02. Three 0-2V D.C. at 100mA, continuously variable regulated Power Supplies.
03. OP-AMP IC 741.
04. Adequate no. of other electronic components.
05. Mains ON/OFF switch, Fuse and Jewel light.
* The unit is operative on 230V ±10% at 50Hz A.C. Mains.
* Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
* Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms.
* Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
