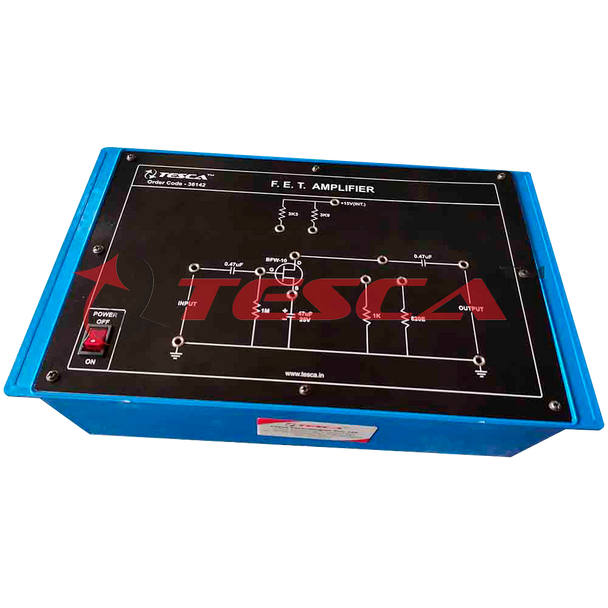

F.E.T. Amplifier with power supply - Order Code 36142

SPECIFICATION

1. To design and calculate the finite gain of FETAmplifier.
2. To draw the overload characteristics.
3. To draw the frequency response.
4. To measure the input impedance.
5. To measure the output impedance.

1. 15V D.C. at 50mA, IC regulated Power Supply internally connected.
2. Field Effect Transistor.
3. Mains ON/OFF switch, Fuse and Jewel light.
4. The unit is operative on 230V ±10% at 50Hz A.C. Mains.
5. Adequate no. of other electronic components.
6. Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
7. Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
8. Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
9. Weight : 3 Kg. (Approx.)
10. Dimension : W 340 x H 110 x D 210
