Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

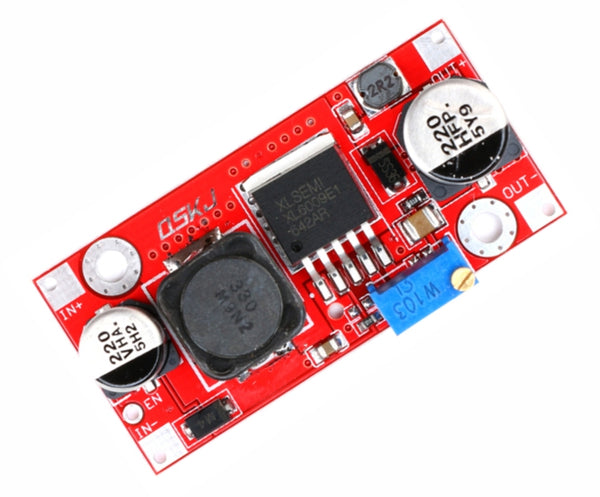

| Product Name | XL6009 High-Frequency DC-DC Boost Converter Module |
| Module Type | Non-Isolated Step-Up (Boost) Converter |
| Core Chip | XLSEMI XL6009 |
| Input Voltage Range | 5V – 32V DC |
| Output Voltage Range | Adjustable 5V – 50V DC |
| Output Current | 2.5A Max |
| Input Current | Up to 4A Max |
| Output Power | 15W (natural cooling), up to 25W (with heat sink) |
| Conversion Efficiency | High efficiency (depends on load and input voltage) |
| Switching Frequency | Up to 400 kHz |
| Control Feature | Enable/Disable control pin supported |
| Filtering Design | LC filter + multilayer ceramic capacitors (MLCC) for ultra-low ripple |
| Output Ripple | Very low ripple (enhanced stability design) |
| Inductor Type | Imported TDK inductor (low heat, low noise) |
| Capacitors Used | Imported SMD electrolytic capacitors + MLCC ceramic capacitors |
| PCB Material | High-grade KB A-class PCB (non-cardboard, high reliability) |
| Module Size | 49 × 23.4 × 11.4 mm |
| Materials | Metal, plastic, electronic components |
| Key Feature | High-frequency boost converter with ultra-low ripple and industrial-grade components |
| Design Advantage | Stable output, reduced noise, high reliability, improved thermal performance |
| Application | DIY power supplies, LED drivers, embedded systems, battery boosting, industrial electronics |
Package Includes:
1 x XL6009 DC-DC Module.
