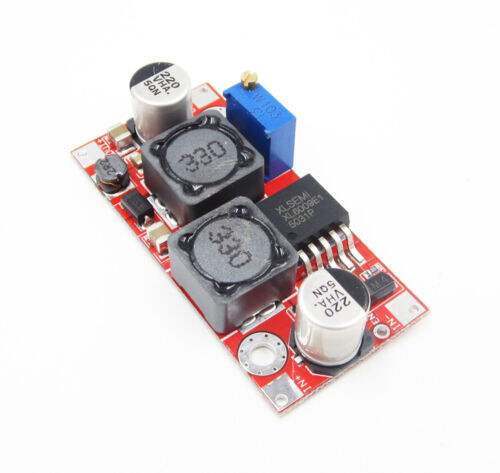

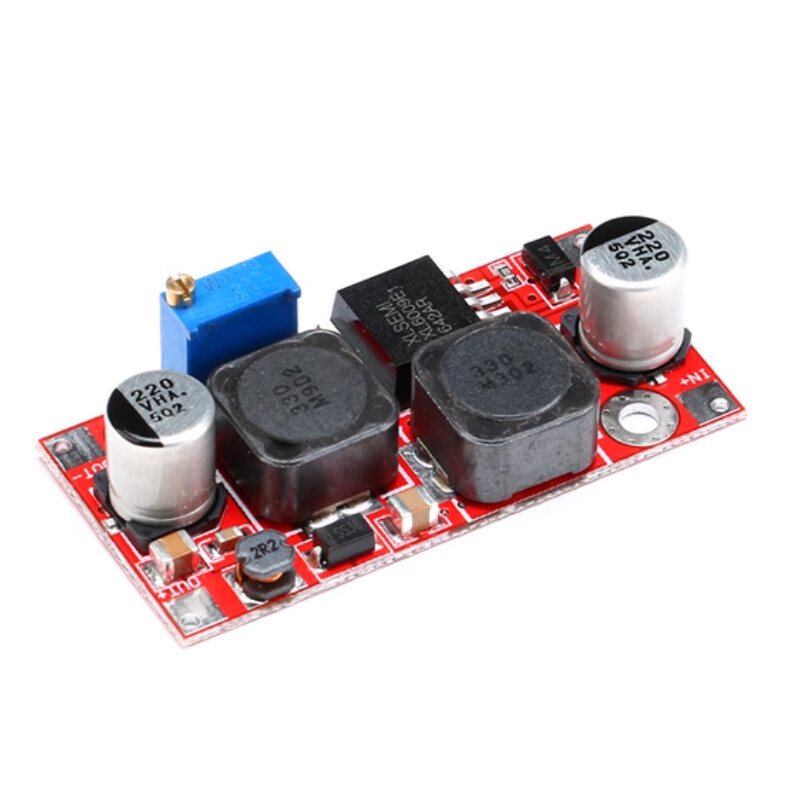

20W XL6009 DC-DC Auto Boost Buck converter Module

(No reviews yet) Write a Review

SKU:: PEBCC88
UPC:
MPN:
Shipping:: Calculated at Checkout

KES400.00

SOLD OUT

Frequently bought together:

Description
0 Reviews

Description

The auto start voltage will be lowered to 7 V or less, and the motor will be at high speed when the voltage is up to 15 V or more. It is difficult to work for 12 V electrical equipment, this automatic riser module can solve this problem, regardless of whether the input voltage is 5 V, 12 V or 32 V,

The output can be stabilized at 12 V.

Built-in 4A efficient MOSFET switches allow efficiency to 94%; (Current LM2577 is 3A)

High switching frequency 400 kHz, the ripple is smaller, the dimension is smaller. (LM2577 frequency 50 kHz)

Applications:

Car regulator, solar photovoltaic, wind energy and other applications of voltage stability.

Specifications:

Specification model: DSN6000AUD automatic Buck module

Module properties: non-isolated impulse (impulse)

Rectification: non-synchronous rectification

Input range: 3.8 V-32 V

Output range: 1.25 V-35 V

Input current: 3A (max), 18 ma without load (5 V input, 8 V output, the load is not less than 18 m, the higher the voltage, the higher the load current).

Conversion efficiency: <94% (the higher the pressure, the lower the efficiency)

Switching frequency 400 kHz

Output ripple: 50 mV (the higher the voltage, the greater the current, the greater the ripple)

Load regulation: 0.5%

Voltage regulation: 0.5%

Operating temperature: -40- + 85

Size: 49mm * 24mm (L * W )

Package Included:

1 x DC-DC Boost Buck adjustable step by step automatic converter XL6009 module
