DPS3005 30V 5A Voltage Current buck/Step Down Module

General Information

The constant voltage and constant current programmable control power supply module put the collection of analog integration and digital control functions in one. Its adjustable output voltage range is 0-32.00V, step by 0.01V. Its adjustable output current range is 0-5.000A, step by 0.001A. This module has power-down stored function and can store 10 groups preset value. And it also has the function of extracting quickly two groups stored value. Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required. LCD display on the module has the function digital voltmeter and ammeter. You can view the preset voltage, input voltage, output voltage, the preset current, output current, output power, etc. on the output state remind area, you can see that output opens or not, the state of constant voltage and constant current, output is normal or not, the key is locked or not, and the current data groups that is being used. On the setting data interface, you can adjust overvoltage value, overcurrent value, over-power value, data set and LCD brightness. This module has many advantages, small size, advanced function, good visual effect, high operability, high-precision, being used independently, being inset into the device and been widely applied.

Features:

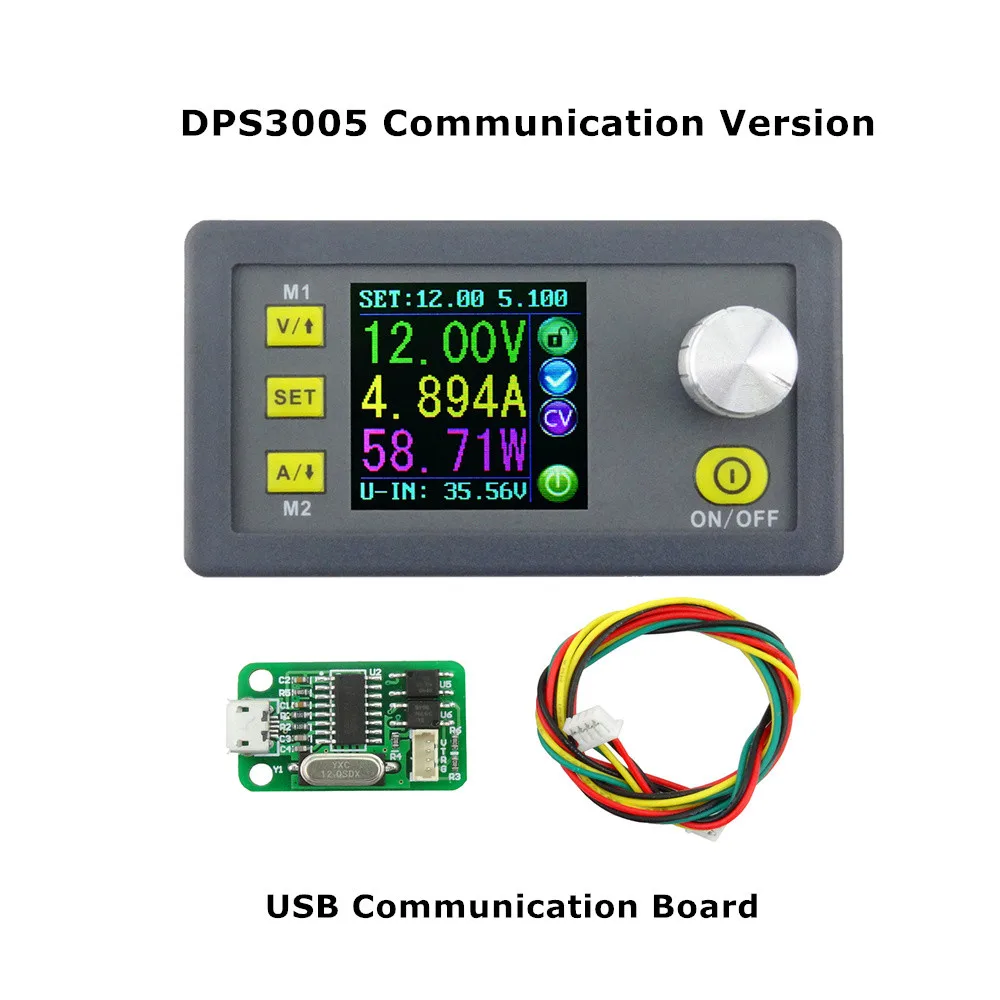

LCD display on the module has the function digital voltmeter and ammeter.
You can view the preset voltage, input voltage, output voltage, the preset current, output current, output power, etc
The constant voltage and constant current programmable control power supply module put the collection of analog integration and digital control functions in one.
And it also has the function of extracting quickly two groups stored value.
Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required.

Descriptions:

This module has many advantages, small size, advanced function, good visual effect, high-precision, being used independently, being inset into the device and been widely applied.
This module has power-down stored function and can store 10 groups preset value.
On the output state remind area, you can see that output opens or not, the state of constant voltage and constant current, output is normal or not, the key is locked or not, and the current data groups that is being used.
On the setting data interface, you can adjust over voltage value, over current value, over-power value, data set and LCD brightness.

Specification:

Input voltage range: 6.00-40.00V
Output voltage range: 0V-32.00V
Output current: 0-5.000A
Output power range: 0-160.0W
Product Dimension: 79*43*48(mm) (L*W*H)
Open size: 71mm*39mm
Output voltage resolution: 0.01V
Output current resolution: 0.001A
Output Voltage accuracy: ± (0.5% + 1 digits)
Output Current accuracy: ± (0.5% + 2 digit)
Product Weight: about 113g

Package Includes:

1 x Constant Voltage Step-down Power Supply Module
