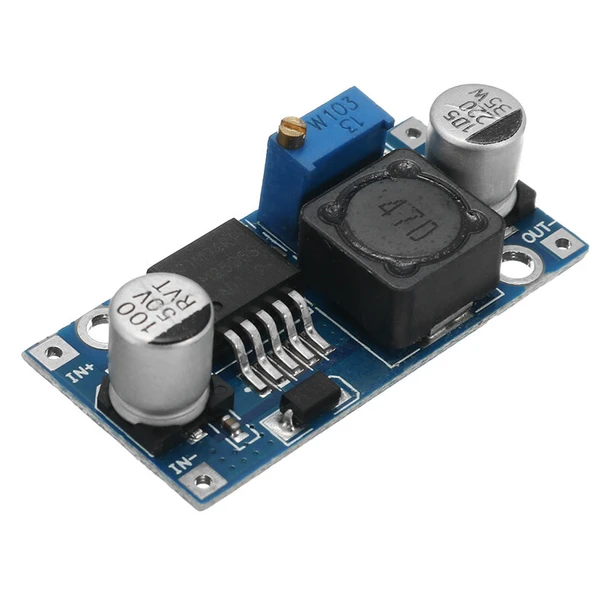

LM2596HVS DC-DC 48V 3A Buck/Step-Down Module

Name: LM2596HVS DC-DC 48V 3A Buck/Step-Down Module
Brand: diymore
SKU: PECBN21
Price: 400 KES
Availability: OutOfStock

(No reviews yet) Write a Review

KES400.00

Current Stock:

SOLD OUT

Frequently bought together:

Description

Features:

CATEGORY	SPECIFICATIONS
Product Name	Adjustable DC-DC Buck-Boost Converter Module
Module Type	Non-Isolated Buck-Boost Converter
Input Voltage Range	4.5V – 60V DC (Recommended ≤50V for long-term use)
Output Voltage Range	3V – 35V DC (Continuously Adjustable)
Output Current	2A Rated, up to 3A Max (short-term)
Output Power	≤ 15W
Pressure Difference	Minimum 1.5V between input and output
Conversion Efficiency	Up to ~92% (varies with load and voltage)
Static Power Consumption	~6mA
Load Regulation	±1%
Voltage Regulation	±0.5%
Protection Features	Current limiting, over-temperature protection
Short Circuit Protection	Yes (current limiting based)
Adjustment Method	Potentiometer (clockwise boost, counterclockwise buck)
Wiring Interface	IN+ / IN− (input), OUT+ / OUT− (output)
Connection Type	Soldering (PCB mountable via added pins)
Module Size	45 × 24 × 11 mm (including potentiometer)
Operating Temperature	-40°C to +85°C (industrial grade)
Key Feature	Compact buck-boost converter with wide input range and stable adjustable output
Application	DIY power supplies, embedded systems, battery regulation, industrial control, portable electronics
