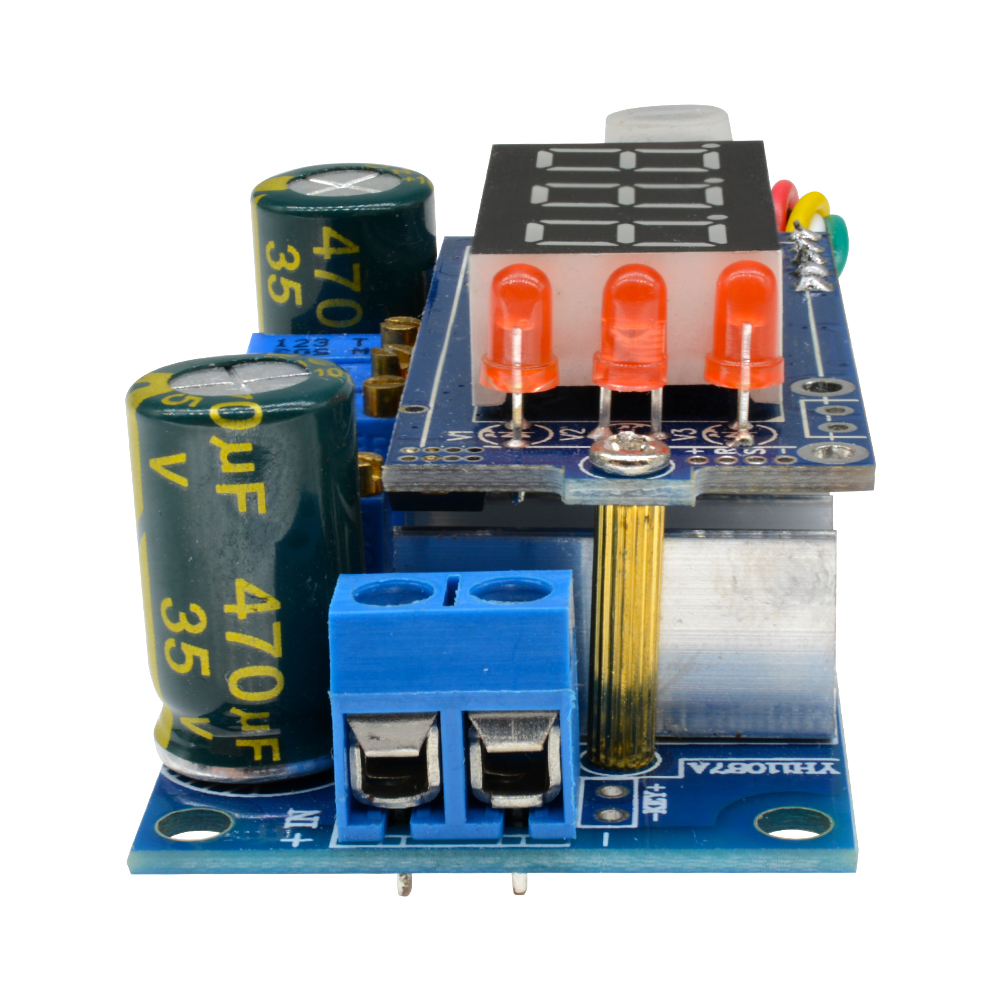

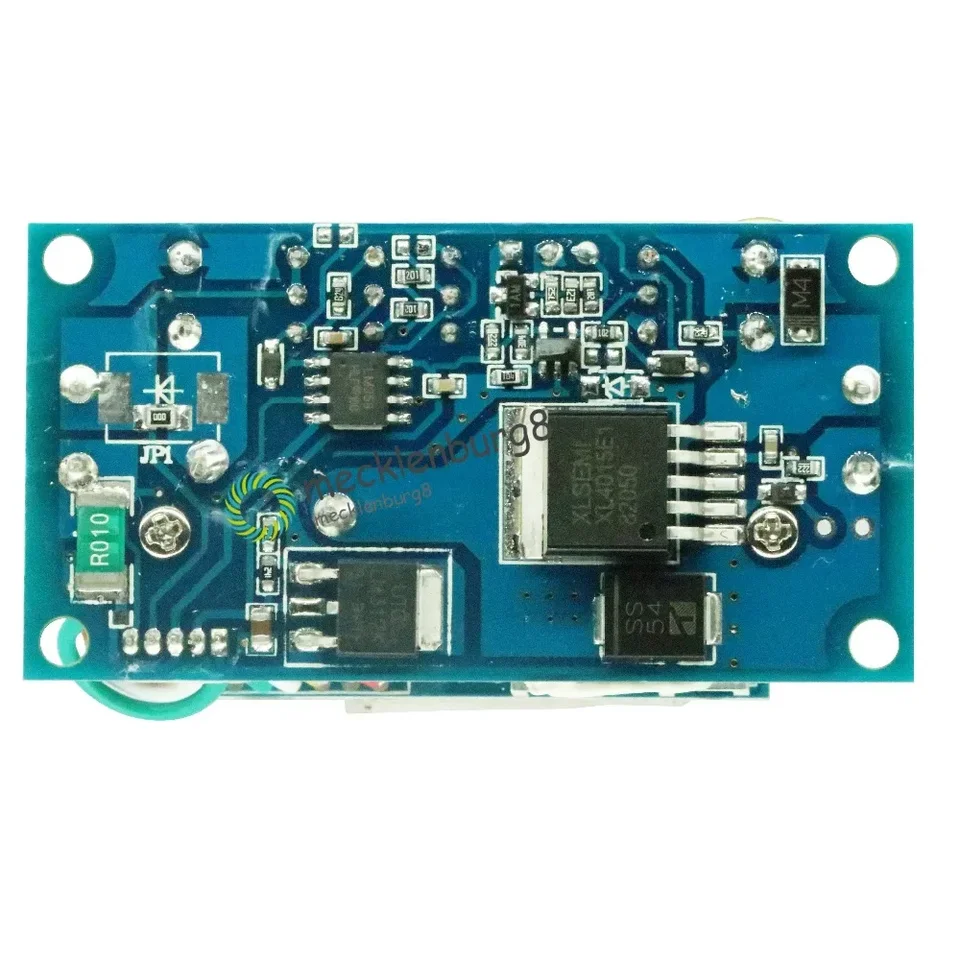

Name: 5A MPPT DC-DC Step-Down / Buck Solar controller
Brand: Electro
SKU: PEMIN86
Price: 1300 KES
Availability: InStock

5A MPPT DC-DC Step-Down / Buck Solar controller

(No reviews yet) Write a Review

SKU:

PEMIN86

Shipping:

Calculated at Checkout

Description
0 Reviews

Description

Features:

CATEGORY	SPECIFICATIONS
Module Type	Non-isolated buck (BUCK) constant current & constant voltage module
Input Voltage	6–36V
Output Voltage	1.25–32V continuously adjustable (default 5V)
Output Current	0.05–5A (default 3A)
Turn Light Output Range	0.01–5A (default 0.3A)
MPPT Voltage Range	6–36V
Conversion Efficiency	Up to 95% (depends on input/output voltage, current, and voltage difference)
Operating Frequency	180 KHz
Operating Temperature	-40°C to +85°C
Protection Features	Short circuit protection, over-temperature protection
Display Function	LED voltmeter showing input voltage, output voltage, output current, and output power
Display Control	• Press 3s: switch display modes (input/output voltage, current, power)• Press 5s: turn voltmeter ON/OFF
Indicators	Red light = chargingGreen light = fully charged
Control Features	Constant current control, MPPT charging, anti-overcharge battery protection
Size	60 × 31 × 22 mm
Mounting	3 mm screw holes (x4)
Applications	• High-power LED driver• Battery charging (with MPPT optimization)• Car power supply (USB/digital devices)• DIY voltage regulator• Electronic device power supply• Multi-battery charging systems• Solar charging systems with improved efficiency

Note:
The current detection module is the low-end testing, please do not directly connect the input negative with the output negative!

Package Includes:
1 x MPPT 5A DC buck converter
