Description
Description
Part Number(Order Number) 1604 LCD
Connection Pin Header
Display Format 16x4 Character
Sunlight Readable No
Touch Panel Optional No
Outline Dimension 87.0(W)x60.0(H)x12.5(T)mm
Visual Area 61.70x25.20mm
Active Area 56.20x20.80mm
Character Size 2.95x4.75mm
Diagonal Size No
Dot (Pixel) Size 0.55x0.55mm
Dot Pitch 0.60x0.60mm
IC Package COB
IC or Equivalent AIP31066 , HD44780, KS0066 , SPLC780 , ST7066
Interface 6800 4-bit Parallel , 6800 8-bit Parallel
Display Type STN-LCD Blue
Response Time(Typ) No
Contrast Ratio(Typ) No
Colors No
Viewing Direction 6:00
Viewing Angle Range No
Appearance White on Blue
Brightness(Typ) No
Backlight Color blue Color
Backlight Current (Typ) 45mA
Power Supply(Typ) 5.0V
Supply Current for LCM(Max) 1800uA
Operating Temp -20℃~70℃
Storage Temperature -30℃~80℃
Package included：

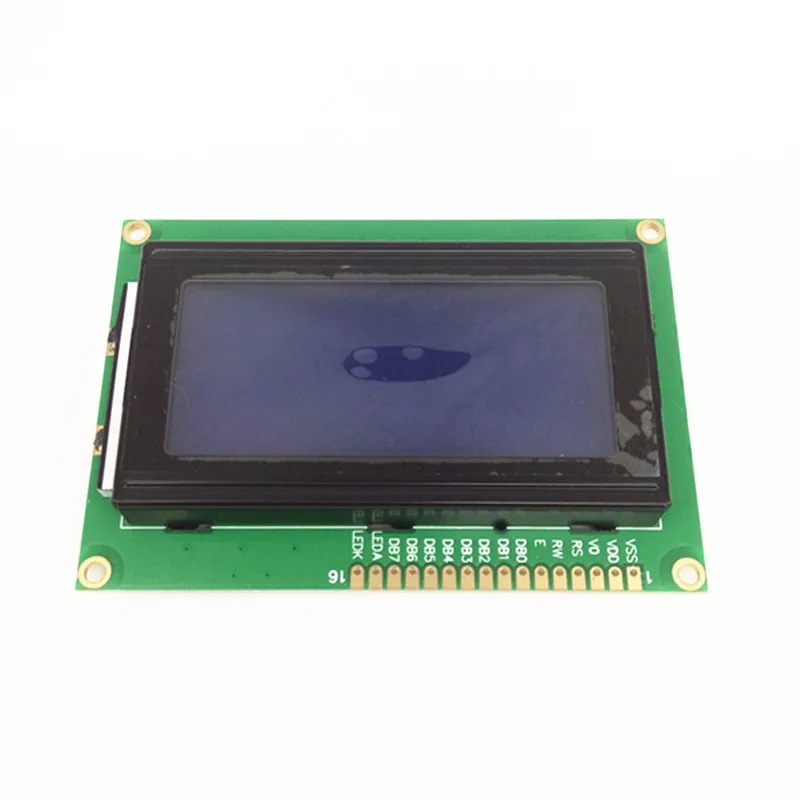

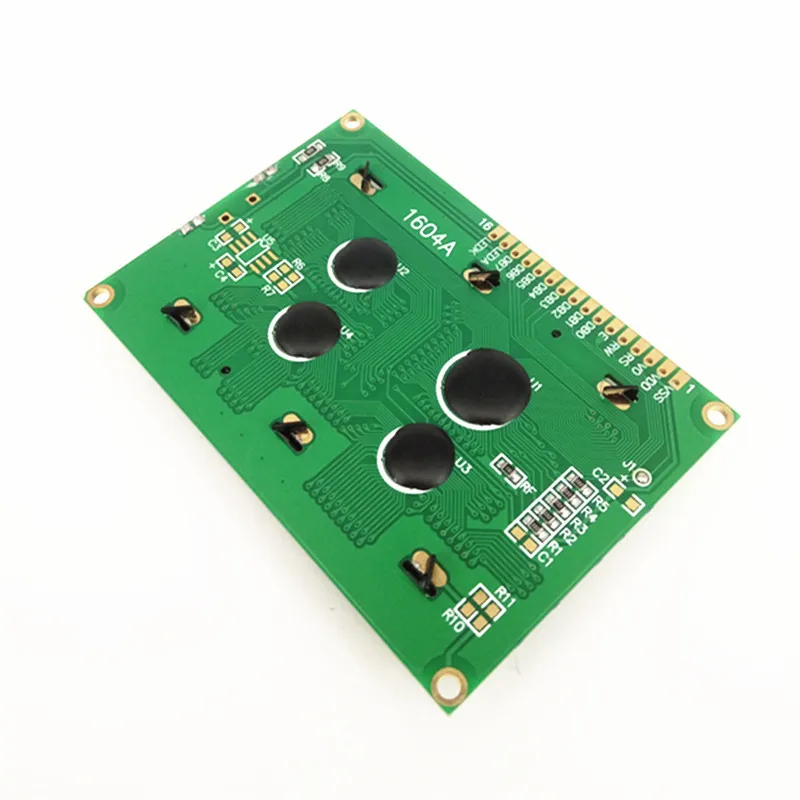

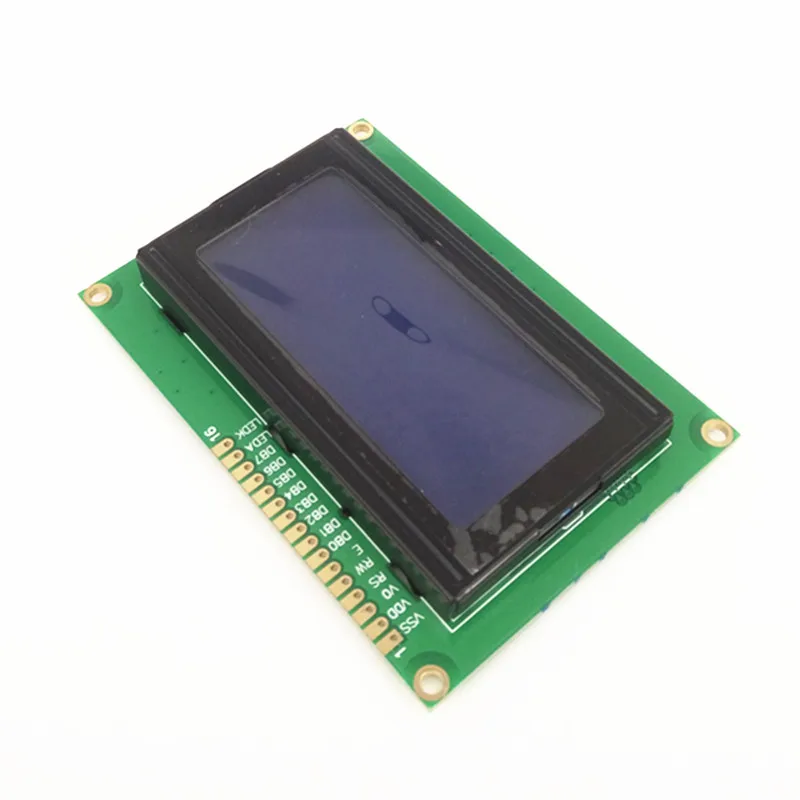

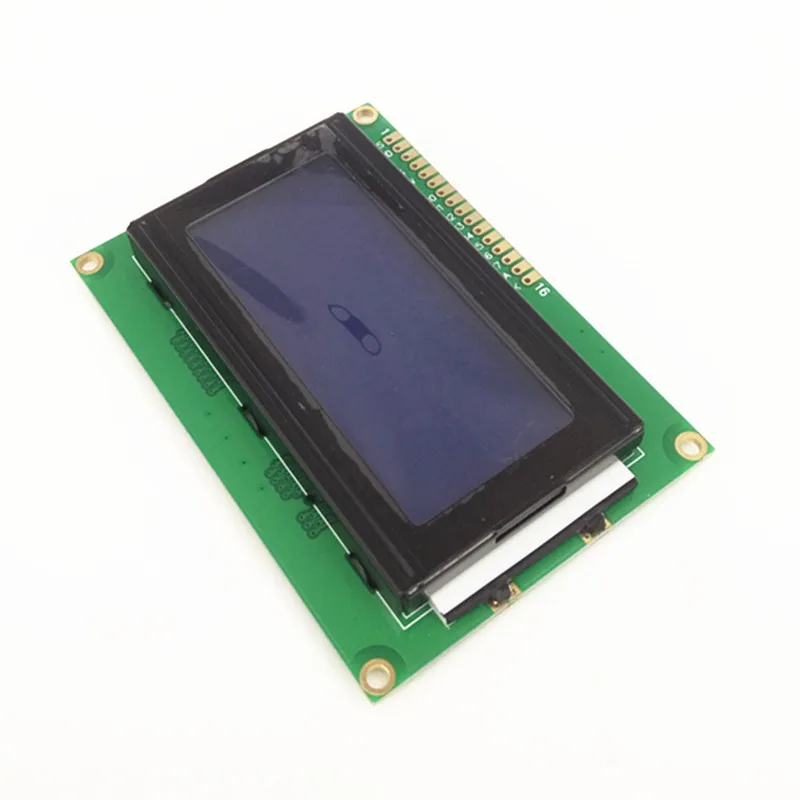

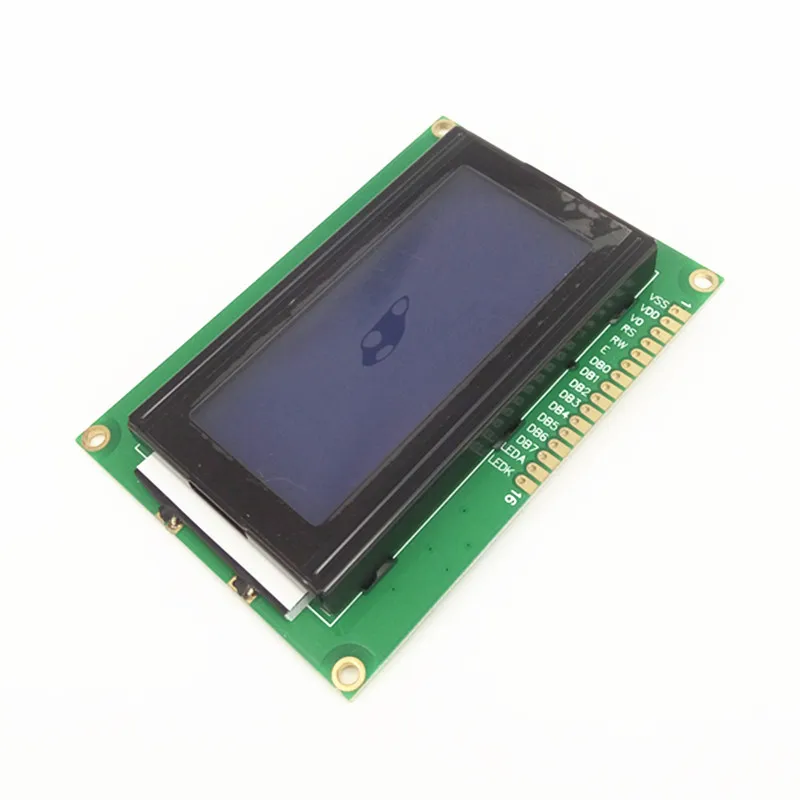

1 x LCD1604 16x4 Character LCD Display Module LCM Blue/Yellow Blacklight 5V for Arduino
