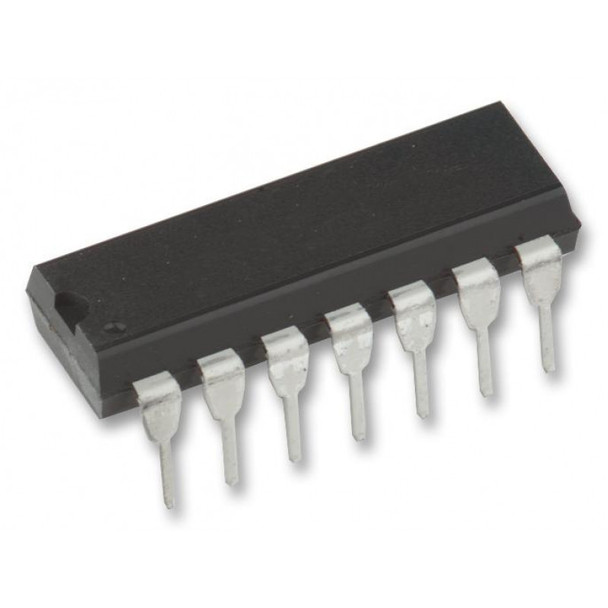

74LS11 Triple 3-Input AND Gate

74LS11 contains Three 3 input independent gates each of which performs the logic AND function.  The IC is a dual in - line package.  The package may be through-hole mounted to a printed circuit board or inserted in a socket. Because of DIP package the device is able to perform ideally even at 70 °C.

Features :

Supply Voltage : 5.25 V
VIH HIGH Level Input Voltage : 2 V
VIL LOW Level Input Voltage : 0.8 V
IOH HIGH Level Output Current : − 0.4 mA
IOL  LOW Level Output Current : 8 mA
TA Free Air Operating Temperature : 0 ~ 70 °C

Package Includes

1pc x 74LS11 Triple 3-Input AND Gate
