Description
Features:
| CATEGORY | SPECIFICATIONS / DETAILS |
|---|---|

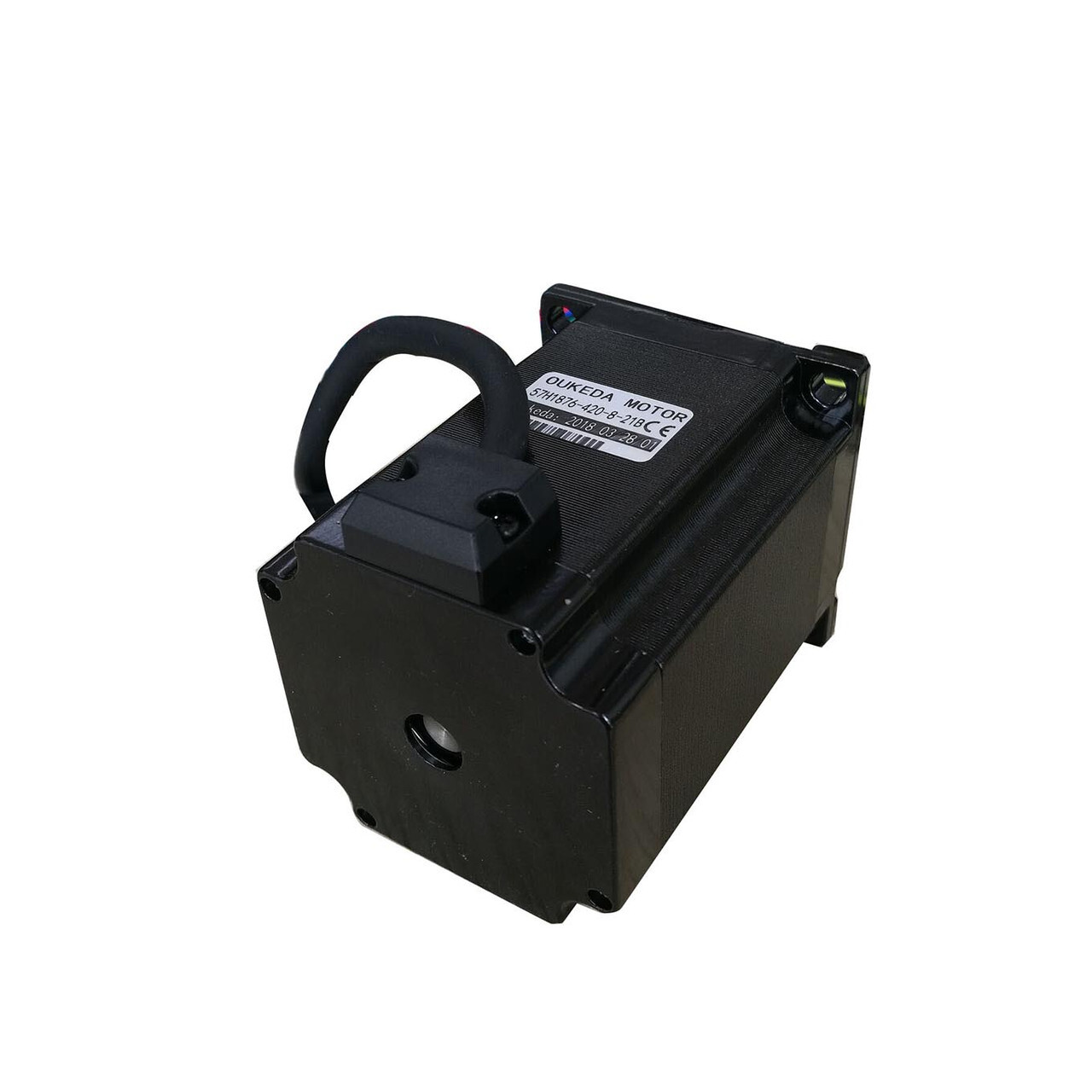

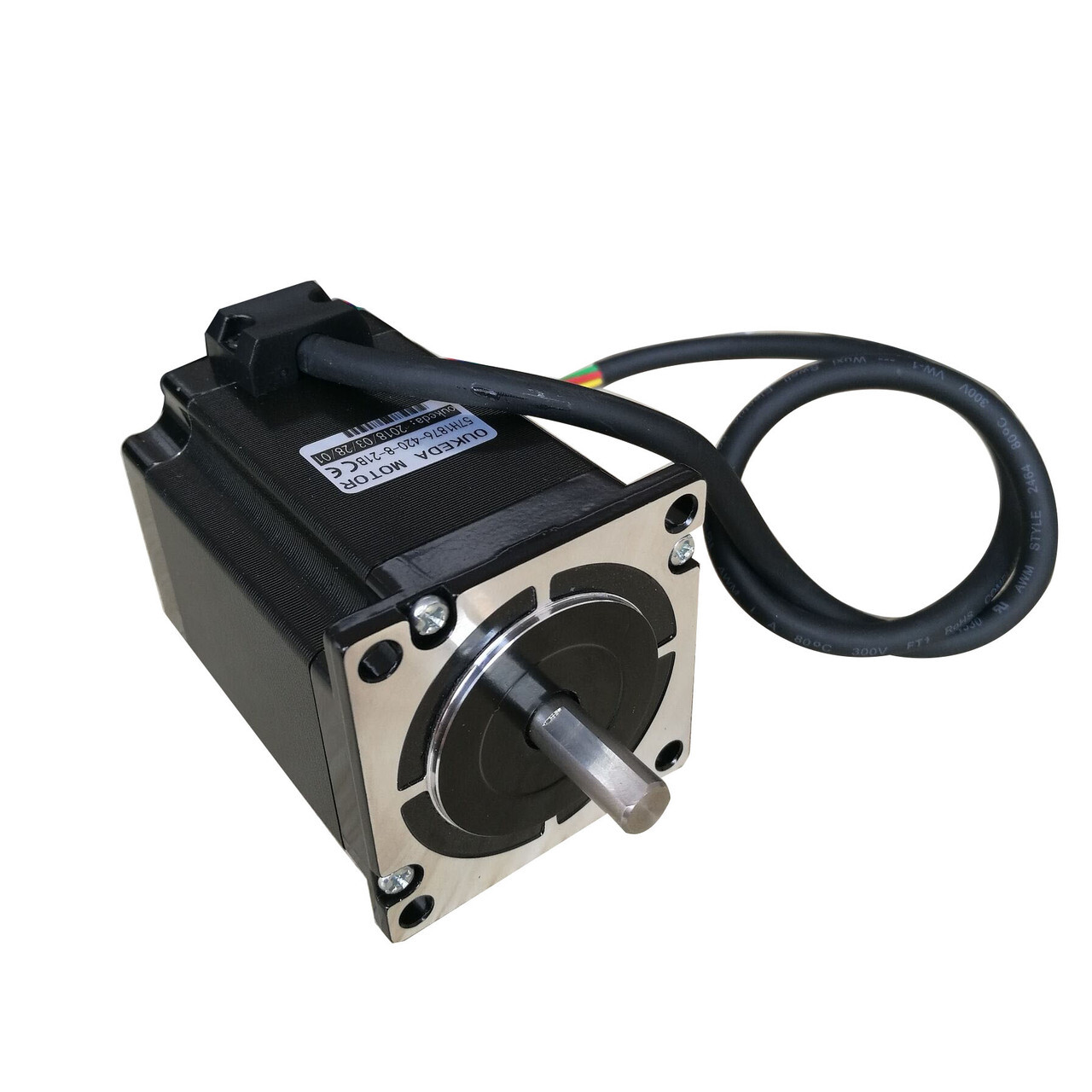

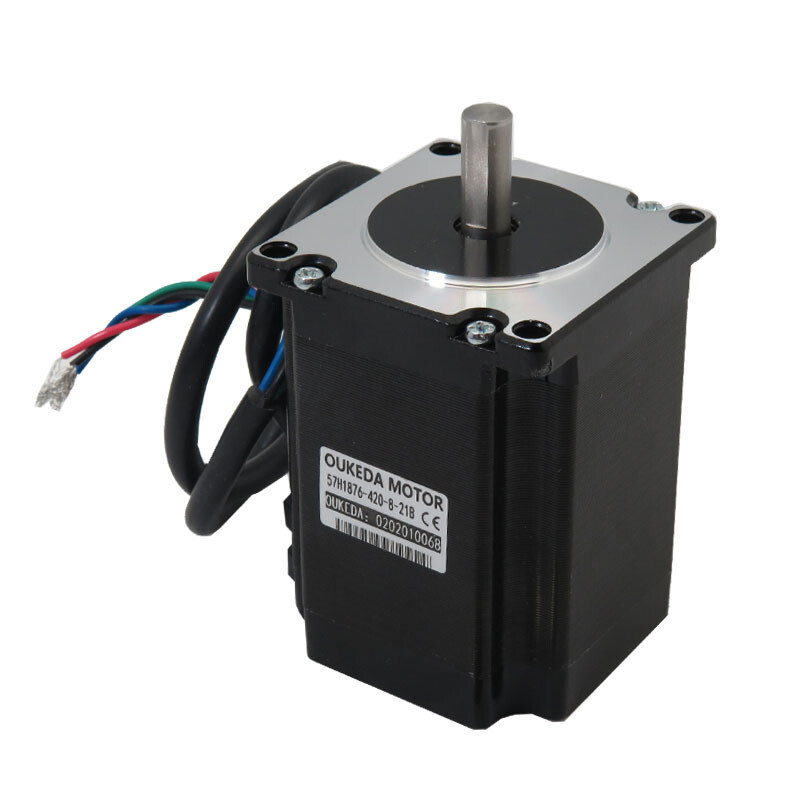

| Product Description | 4-wire uni-polar/bipolar stepper motor for 3D printers, robotics, and linear motion projects. Smooth 1.8° per step motion with high holding torque. Can be driven by common Arduino motor shields, wall adapters, or lead-acid batteries. Supplied with 100 cm power cable and 4-pin female 2.54 mm pitch connector. |
| Model | 57BYGH76 / 57BYG250C |
| Number of Phases | 2 Phase (4 wires) |
| Rated Phase Current | 2.8 A |
| Phase Resistance | 1.0 Ω |
| Phase Inductance | 5.0 mH |
| Step Angle | 1.8° |
| Shaft Diameter | Ø8.00 mm D-Shape |
| Rated Voltage | 12–24 V DC |
| Holding Torque | 176 N·cm |
| Connector | XH 4-pin, 2.54 mm pitch |
| Wire Length | 100 cm |
| Frame Size | 56 × 56 mm |
| Motor Body Length (Lmax) | 76 mm |
| Weight | 1.10 kg |
Package Includes:
1 x Nema 23 Stepper Motor
