Description
Specifications
Step accuracy: ±5%
Ambient temperature range: 20°C ~ 50°C
Insulation resistance: 100MΩ Min.50V DC
Dielectric strength: 500V AC for 1 minute
Step angle: 1.8°
Voltage rating: 3.1 V
Current rating: 2.5 A
Resistance: 1.25 Ω per coil
Inductance: 1.8 mH
Temperature rise tolerance: 80°C
Holding torque: 4800 g⋅cm
Detent torque: 280 g⋅cm
Rotor inertia: 68 g⋅c㎡
Number of leads: 4
Motor length : 4.8 cm
Weight: 340 g
Step accuracy: ±5%
Ambient temperature range: 20°C ~ 50°C
Insulation resistance: 100MΩ Min.50V DC
Dielectric strength: 500V AC for 1 minute
Step angle: 1.8°
Voltage rating: 3.1 V
Current rating: 2.5 A
Resistance: 1.25 Ω per coil
Inductance: 1.8 mH
Temperature rise tolerance: 80°C
Holding torque: 4800 g⋅cm
Detent torque: 280 g⋅cm
Rotor inertia: 68 g⋅c㎡
Number of leads: 4
Motor length : 4.8 cm
Weight: 340 g
Downloads
42BYGHW811 Stepper Motor Datasheet.pdf
Package Includes

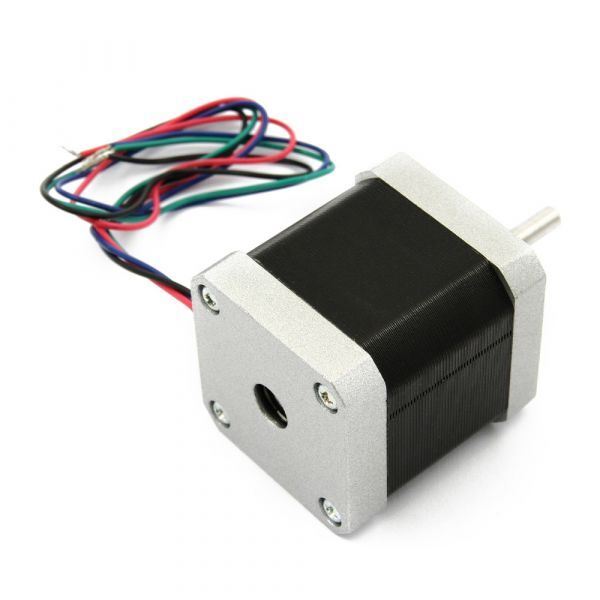

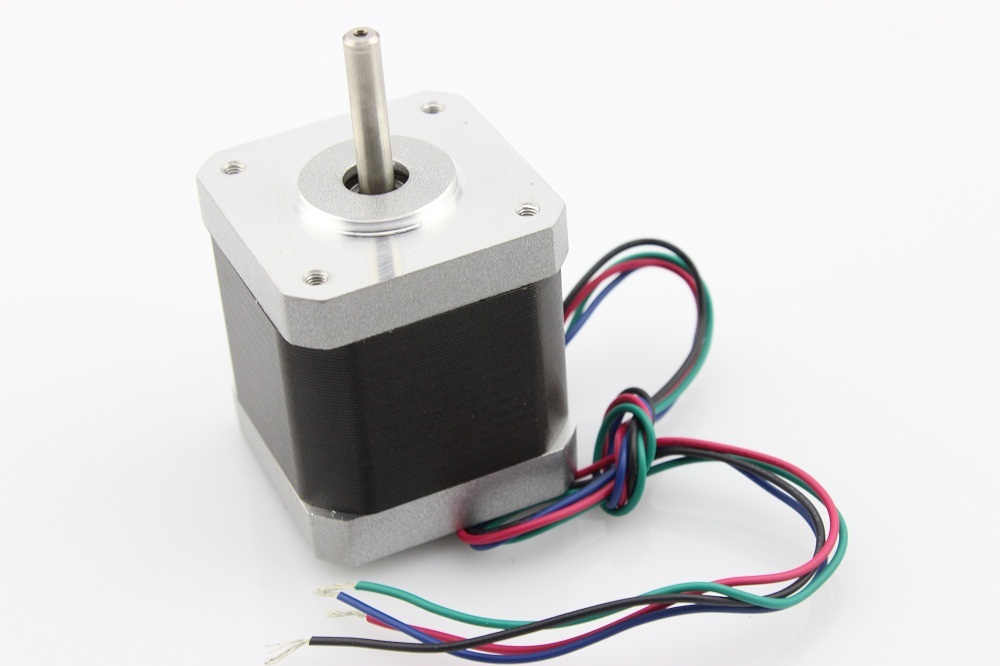

1pc x 42BYGHW811 NEMA 17 Stepper Motor
1pc x 720mm long cable
