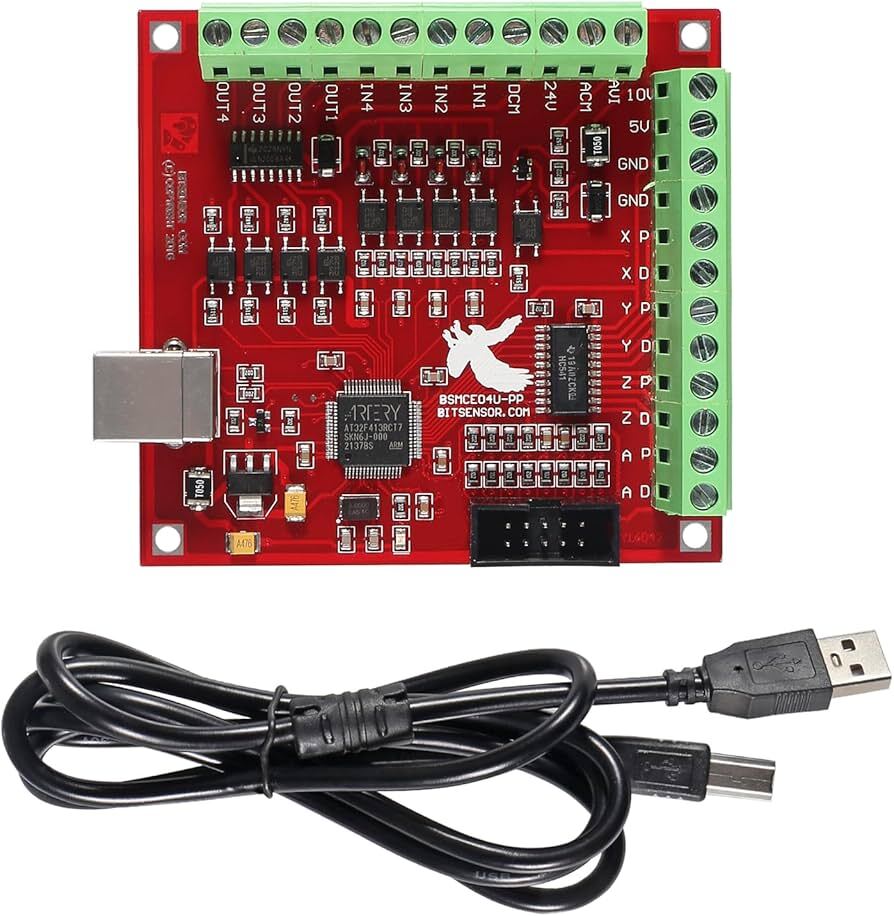

USB CNC Controller Mach3 4-Axis 100Khz Interface Board + USB Cable + Drivers

This is 4-Axis USB CNC Motion Controller for Mach3. It allows you to control up to 4 CNC drivers with 4 stepper or servo motors. This means that you can run your 4 axis CNC machine with Mach3 software using windows operating system and USB port. No need for old computers with parallel port. In fact, you can use tablet with USB port to control your 4 axis machine with Mach3 software.

Features

• Step pulse frequency up to 100 khz which make it suitable for smooth stepper or servo motion
• Wide voltage input range 12-24V
• Emergency input capability
• 4 digital input input protected by opto-coupler
• All input signals are isolated by optical coupler
• Electronic hand wheel capability
• Optical isolation between the USB side and the external input
• Spindle speed control
• Provide 4 output port (5V level), can be connected with the relay module opto-coupler, water control, spray and so on.

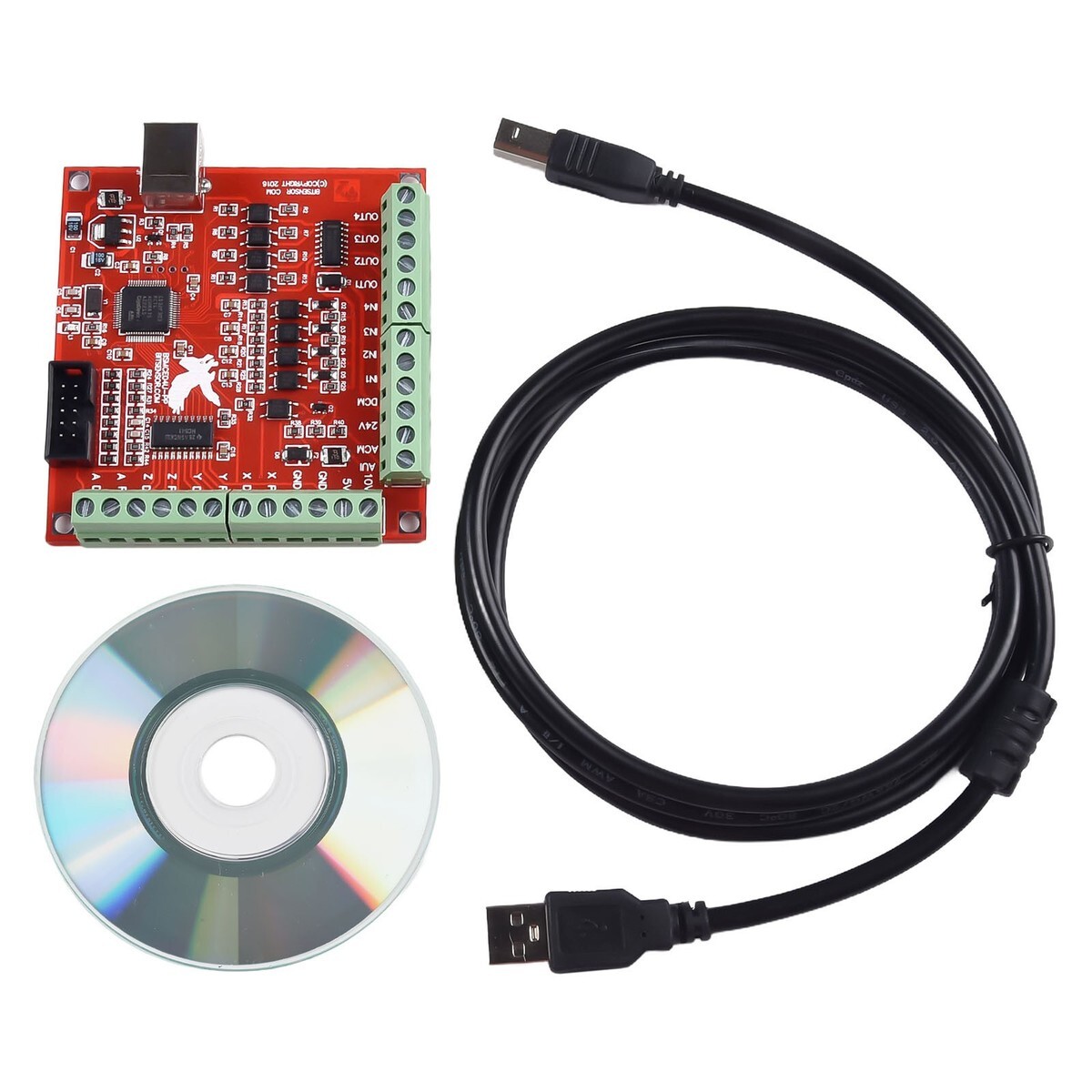

Package Includes

• 1pc x USB CNC Controller Mach3 4 Axis 100Khz Interface Board
• 1 x USB Cable
• 1 x CD Drivers,
