Description

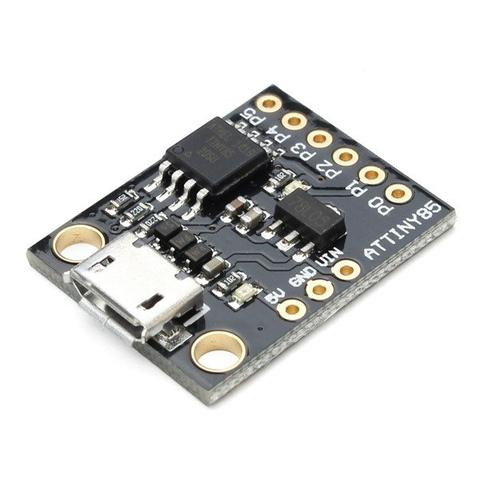

Although small in size, great in capabilities. The Digispark ATTINY85 Mini USB Development Board is similar to the Arduino but cheaper and smaller (of course a bit less powerful). With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, this board is a great way to jump into microcontroller electronics.
Specification:
1 x Digispark ATTINY85 Mini USB Development Board
1 x Berg Pin
- Support for the Arduino IDE 1.0+ (OSX/Win/Linux)
- Power via USB or External Source – 5v or 7-35v (12v or less recommended, automatic selection)
- On-board 500ma 5V Regulator
- Built-in USB
- 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
- 8k Flash Memory (about 6k after bootloader)
- I2C and SPI (vis USI)
- PWM on 3 pins (more possible with Software PWM)
- ADC on 4 pins
- Power LED and Test/Status LED
- Product size: approx. 28*15*5mm/1.1*0.59*0.19”
- Net weight: approx. 8g
- High Performance, Low Power AVR® 8-Bit Microcontroller
- Non-volatile Program and Data Memories
- 8K Bytes of In-System Programmable Program Memory Flash
- Endurance: 10,000 Write/Erase Cycles
- 512 Bytes In-System Programmable EEPROM
- 512 Bytes Internal SRAM
- Peripheral Features
- Two High-Frequency PWM Outputs with Separate Output Compare Registers
- USI – Universal Serial Interface (12C, SPI, 1-wire) with Start Condition Detector
- 10-bit ADC
- 4 Single Ended Channels
- Two Differential ADC Channel Pairs with Programmable Gain (1x, 20x)
- Speed Grade
- 0 – 10 MHz @ 2.7 – 5.5V, 0 – 20 MHz @ 4.5 – 5.5V
- Industrial Temperature Range
- Low Power Consumption
- Active Mode:1 MHz, 1.8V: 300 µA
1 x Digispark ATTINY85 Mini USB Development Board
1 x Berg Pin
