Deek-Robot

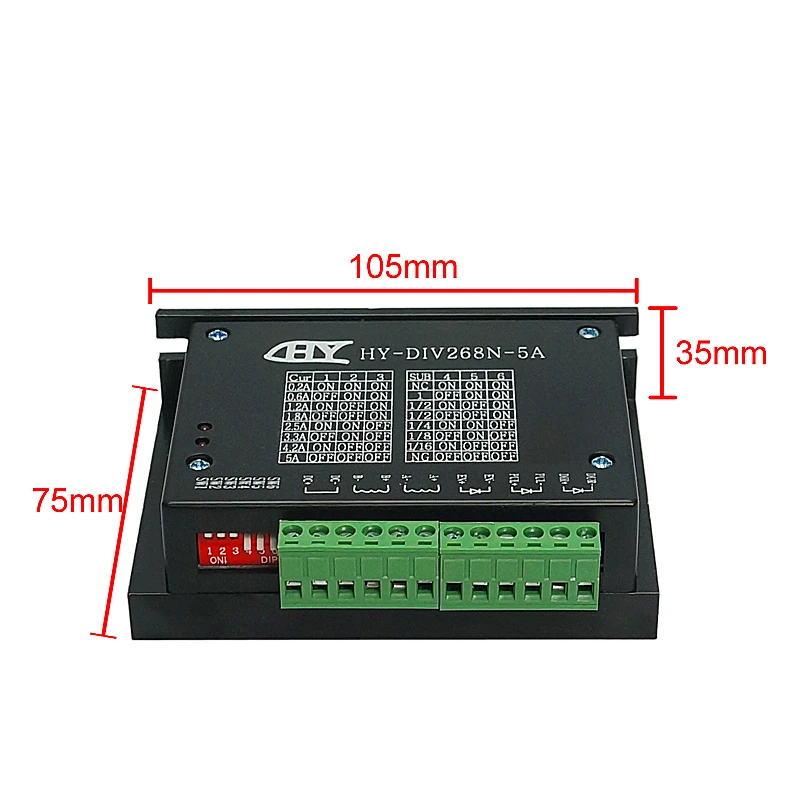

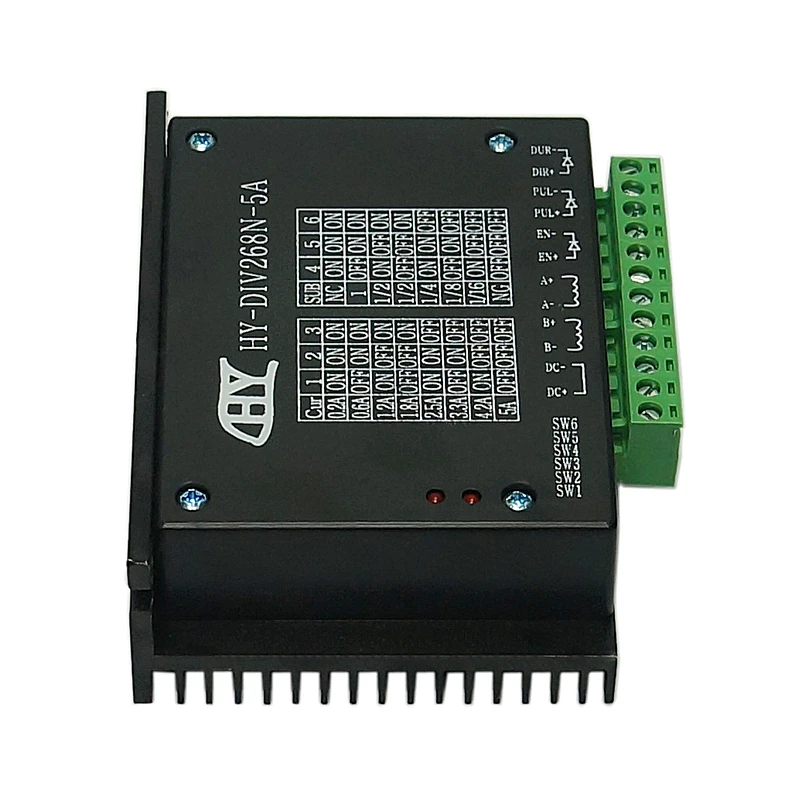

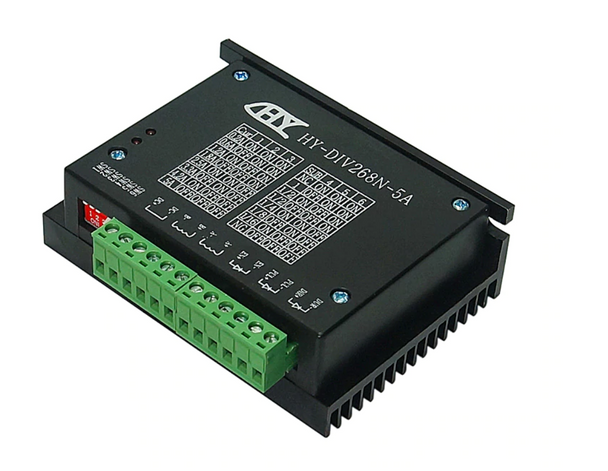

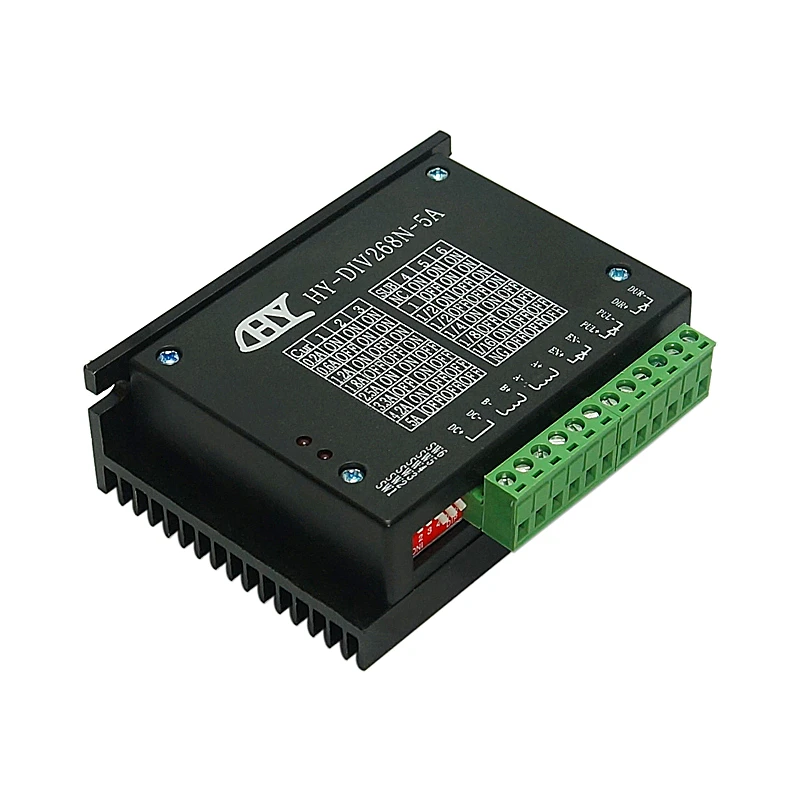

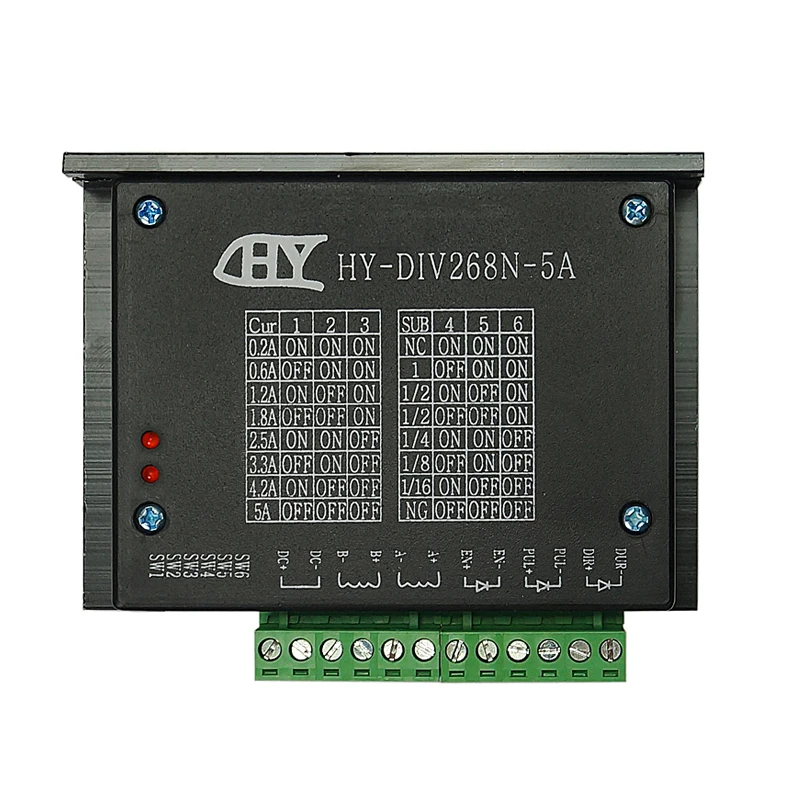

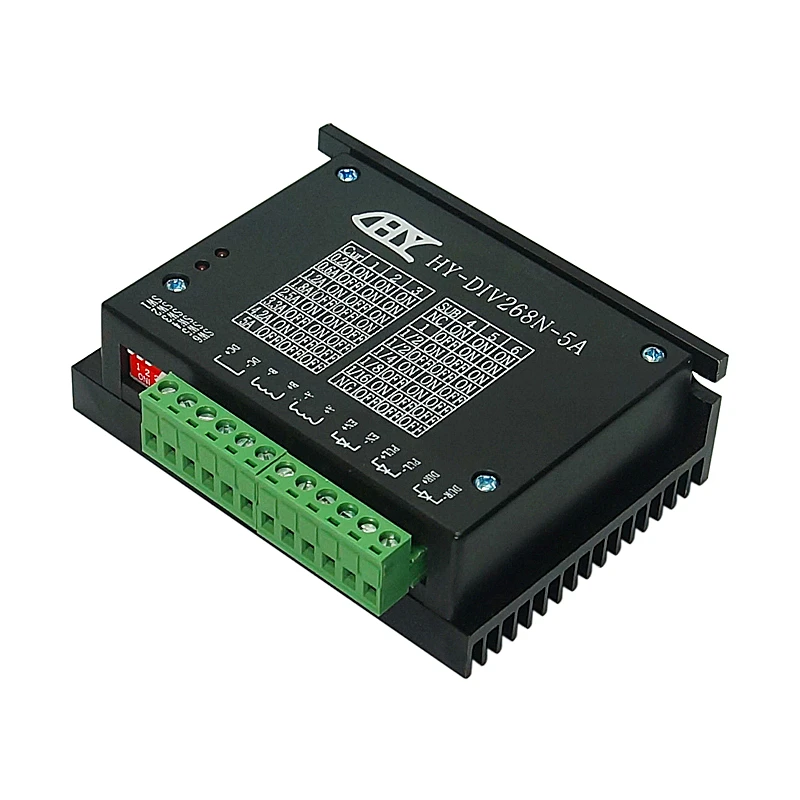

HY-DIV268N 0.2-5A CNC stepper motor driver
(No reviews yet)
Write a Review
- SKU:
- PEGBM91
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Product Name | HY-DIV268N-5A Subdivision Two-Phase Hybrid Stepping Motor Drive |
| Power Supply | DC 12–48V |
| Compatible Motors | Two-phase hybrid stepping motors, 12–48V, current < 5A, outer diameter 35–86 mm |
| Drive Type | Current loop subdivision control, two-phase sinusoidal current drive output |
| Motor Performance | Low torque ripple, smooth low-speed operation, almost no vibration or noise, high-speed torque higher than other two-phase drives, high positioning accuracy |
| Applications | Engraving machines, CNC machine tools, packaging machinery, other high-resolution devices |
| Current Control | Average current control |
| Internal Regulators | 12V and 5V |
| Signal Isolation | Optically isolated input/output |
| Protection Features | Overvoltage, undervoltage, overcurrent, short-circuit protection |
| Subdivision Modes | 4-step segmentation and automatic half-step, up to 16 segments |
| Phase Current Settings | Adjustable |
| High-Speed Performance | High starting speed, high-speed torque |
| Input Voltage | DC 12–48V |
| Input Current | 1–5 A (depending on stepper motor) |
| Output Current | 0.2–5 A |
| Operating Temperature | -10 to 45°C |
| Storage Temperature | -40 to 70°C |
| Humidity | No condensation, no drops |
| Environmental Restrictions | No combustible gas or conductive dust |
| Weight | 200 g |
Package includes:
1 x HY-DIV268N 0.2-5A CNC stepper motor driver
