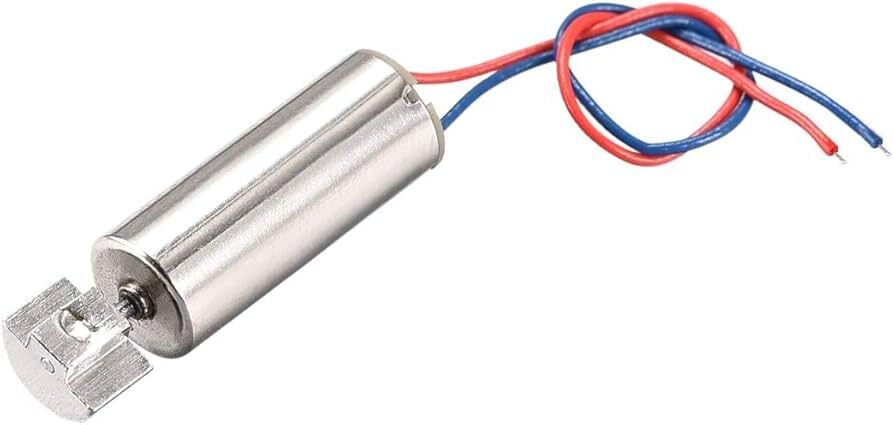

6mm Cylindrical Vibration Motor -15mm Type Model NFP-P0615-4302

(No reviews yet) Write a Review
SKU:
PETYS12
Shipping:
Calculated at Checkout
  • 6mm Cylindrical Vibration Motor -15mm Type Model NFP-P0615-4302
  • 6mm Cylindrical Vibration Motor -15mm Type Model NFP-P0615-4302
KES180.00

Sold Out

Frequently bought together:

Description

A vibrating motor is essentially a motor that is improperly balanced. In other words, there is an off-centred weight attached to the motor’s rotational shaft that causes the motor to wobble.
The amount of wobble can be changed by the amount of weight that you attach, the weight’s distance from the shaft, and the speed at which the motor spins.

Specifications
Motor Model NFP-P0615-4302
Rated Voltage 3.0V DC
Motor Diameter 6mm ± 0.05mm
Total Length 21.3mm ± 0.3mm
Motor Body Length 15.4mm ± 0.2mm
End Play 0.05mm – 0.3mm
Resistance >5MΩ
Rotation CW
Stall Current ≤130mA
Start Voltage ≤0.8V DC
Load Speed 10,000rpm ± 15%
Load Current ≤80mA
Ecc. Weight Radius 3mm
Ecc. Weight Length 4.5mm
Amplitude 2.85G

Package Includes

1pc x 6mm Cylindrical Vibration Motor -15mm Type Model NFP-P0615-4302
