Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

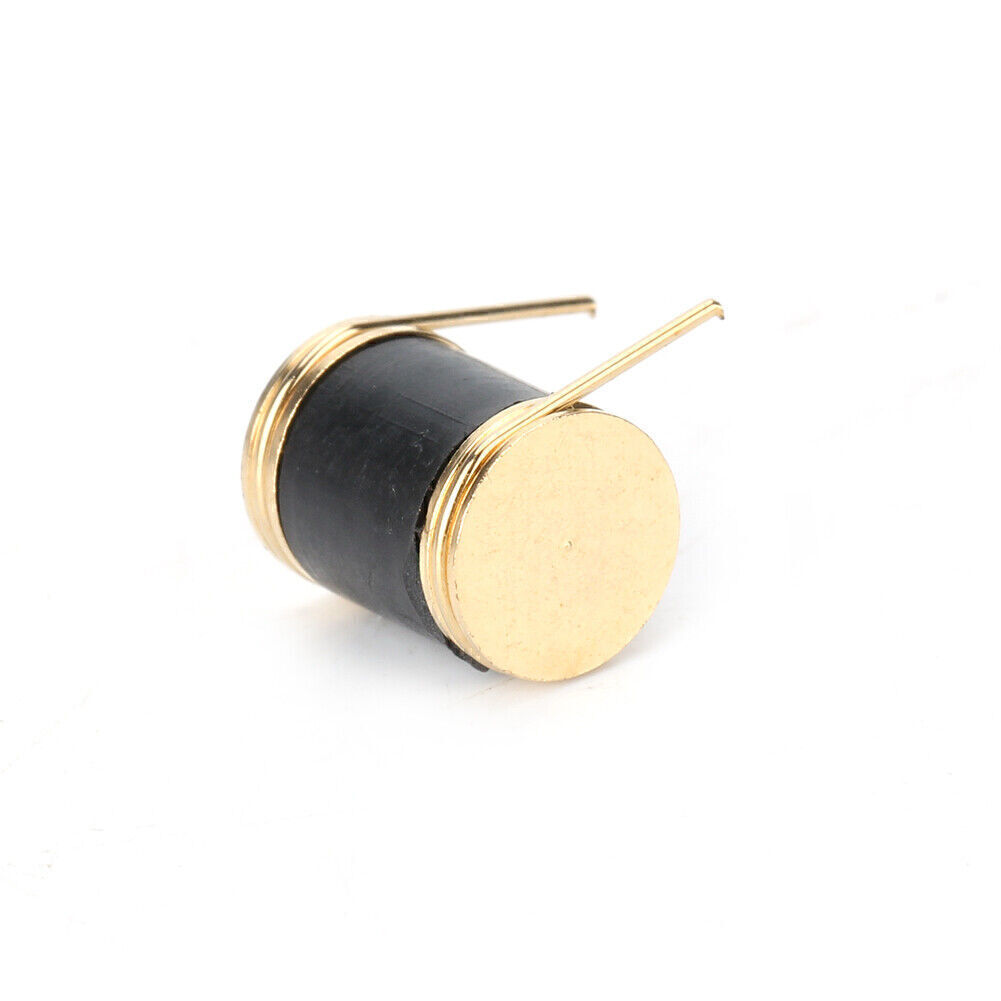

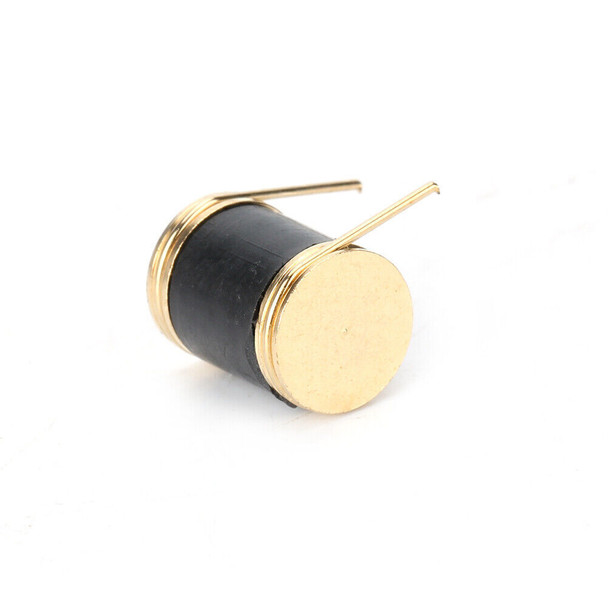

| Product Name | Vibration Switch (801 Series) |
| Type | Spring-type, non-directional vibration-trigger switch |
| Operation | Normally open; closes briefly when vibration or external force is applied, reverts to open when force disappears |
| Voltage | <12 V |
| Current | <20 mA |
| Conductive Time | ~2 ms |
| Closed Resistance | Low (instantaneous conduction) |
| Open Resistance | >10 MΩ |
| Temperature Range | Operating: -40°C to 80°C |
| Pull Force of Terminal | 500 gf for 1 minute |
| Humidity Tolerance | 95% RH at 40°C for 96 hours |
| Operating Lifespan | ≥200,000 cycles |
| Sensitivity | Varies by model |
| Features | Airtight “D” marking, non-directional, spring-triggered |
| Applications | Automotive devices, home appliances, air conditioners/blowers, communication devices, toys, anti-theft systems, electronic scales |
Package Includes:
1 x Vibration Sensor Switch 801s
