Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Product Type | USB to TTL Serial Cable |
| Chipset | FT232RL (FTDI based) |
| Interface | USB to UART (TTL level) |
| Logic Level | 3.3V TTL |
| USB Standard | USB 2.0 full-speed compatible |
| Cable Length | 1.0 m |
| Data Transfer Rate | Up to 3 Mbaud |
| Connector Type | 6-way SIL 0.1” pitch (also available in other variants) |

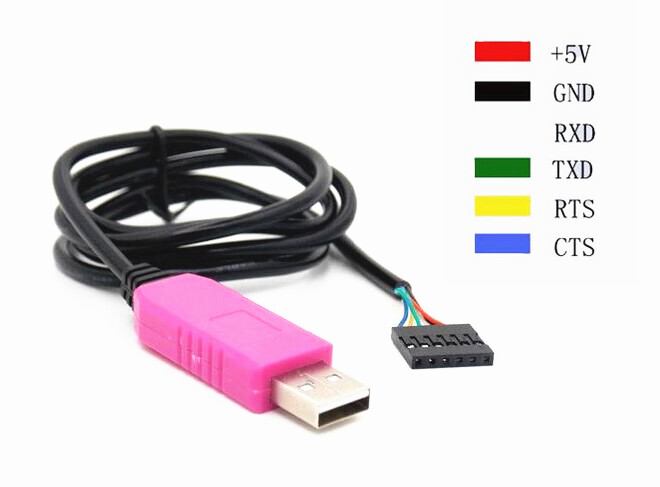

| Wire Definitions | Red: 5V, Black: GND, White: RXD, Green: TXD, Yellow: RTS, Blue: CTS |
| Chip Function | Handles full USB signaling and UART conversion internally |
| Power Supply | USB powered |
| Compliance | FCC, CE, RoHS compliant |
| Key Features | Plug-and-play USB serial communication, compact embedded converter in cable form |
| Applications | RS232 replacement, industrial control, medical devices, POS systems, GPS devices, barcode readers, embedded debugging, USB interface upgrades |
Package Includes:
1 x 6Pin USB TTL RS232 Convert Serial Cable.
