Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

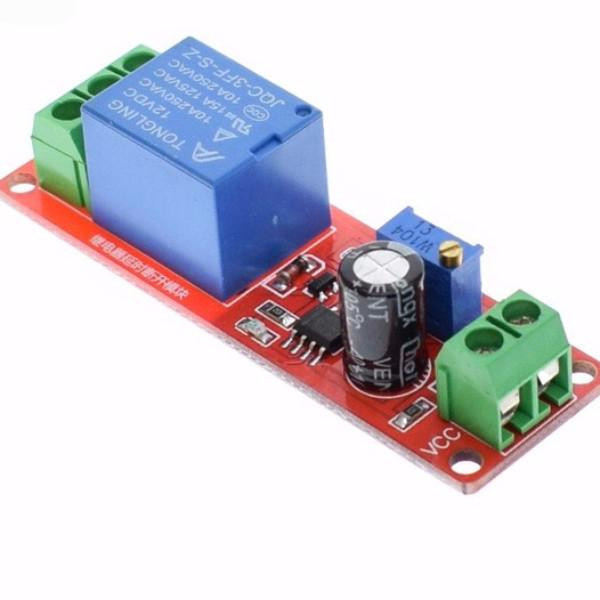

| Product Name | 5V NE555 Conduction Delay Relay Module |
| Module Type | Delay ON Relay Timer Module |
| Control IC | NE555 Timer Chip |
| Working Voltage | DC 5V |
| Module Type | Delay turn-on (conduction delay) |
| Delay Time Range | Default 0–10 seconds (adjustable longer via capacitor change) |
| Adjustment Method | Potentiometer (chrono adjustment) |
| Indicator LEDs | Power LED + Trigger/Timing LED |
| Output Load Rating | AC 250V 10A / DC 30V 10A |
| Maximum Power Load | Up to 2200W (theoretical maximum) |
| Timing Function | Delay ON after trigger |
| Control Voltage Range | AC 0–250V / DC 0–30V load switching |
| Main Features | High-performance timing CPU design, stable delay control |
| Chip Characteristics | Microseconds to long-duration timing, precision pulse generation, adjustable duty cycle |
| Application Areas | Vehicle ignition delay systems, surge current protection, device protection circuits |
| Typical Use Cases | Prevent inrush current damage, delayed power activation systems |
| Build Quality | Compact industrial-grade delay control module |
Package Includes:
1 x DC 5V Delay relay shield Timer Switch Adjustable Module 0 to 10 Second
