Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Product Name | MAX6675 Thermocouple Module |
| Type | K-Type Thermocouple ADC with Cold Junction Compensation |
| Temperature Range | 0℃ – 1024℃ |
| Resolution | 0.25℃ |
| Accuracy | ±1.5℃ |
| Cold Junction Compensation | Embedded, range -20℃ ~ +80℃ |
| Interface | SPI (can use SCM built-in SPI or simulated SPI) |
| Input | High impedance differential input, thermocouple break detection |
| ESD Protection | 2000V |
| Operating Voltage | 3.0 – 5.5V |
| Operating Current | 50mA |
| Operating Temperature Range | -20℃ – 85℃ |
| Dimensions | 15mm × 28mm × 13mm |
| Module Pins | GND, VCC, SCK, CS, SO |
| Mounting | 3mm diameter screw, wiring terminals included |
| Compatibility | Arduino and general MCU boards |
Applications:
- Designed for developers, prototype developing.
- Indoor temperature measuring, car air conditioner, fridge, direr temperature measuring.
- Storage tank, telecommunication room, cable cabinet temperature measuring.
- Industrial meters and instruments temperature measuring and conversion.
Package Includes:

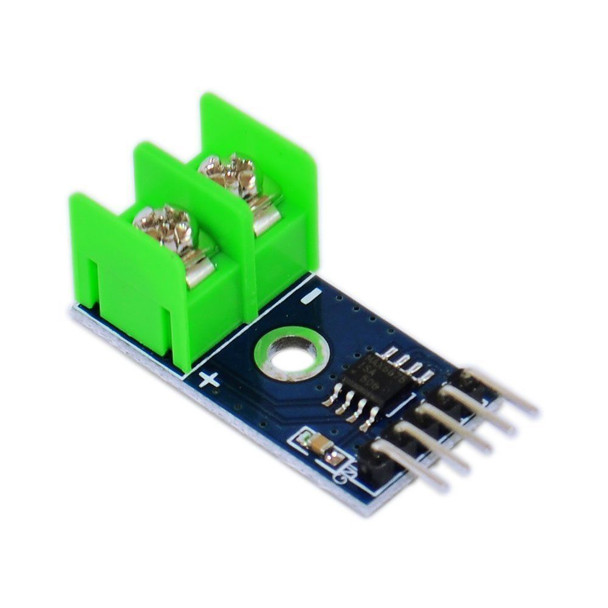

1 x Thermocouple Amplifier MAX6675 board
Related Products
Related Products
SOLD OUT
PAM8610 digital power amplifier board
Dikavs
KES250.00
Product description
This plate with switching function, SW short, will turn off the power amplifier
Working Mode: Class D (PWM modulation type)
Chip Type: PAM8610
Power Range: DC 6V-15V...
3W Bluetooth Audio Amplifier Board
diymore
KES700.00
Description:
Material: electrical components
Operating voltage: DC 3.7-5V
Size: 40*20mm
SOLD OUT
TPA3118 PBTL mono digital amplifier board
Electro
KES500.00
This TPA3118 PBTL Mono Digital Amplifier Board 1X60W 12V 24V Power Amplifier Module comes with very good sound quality. The module equips Mono digital audio power amplifier chip.It has high output...

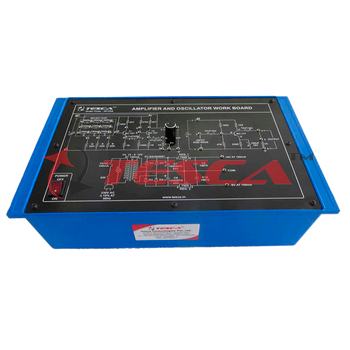

Amplifier and Oscillator Work Board - Order Code 36125A
