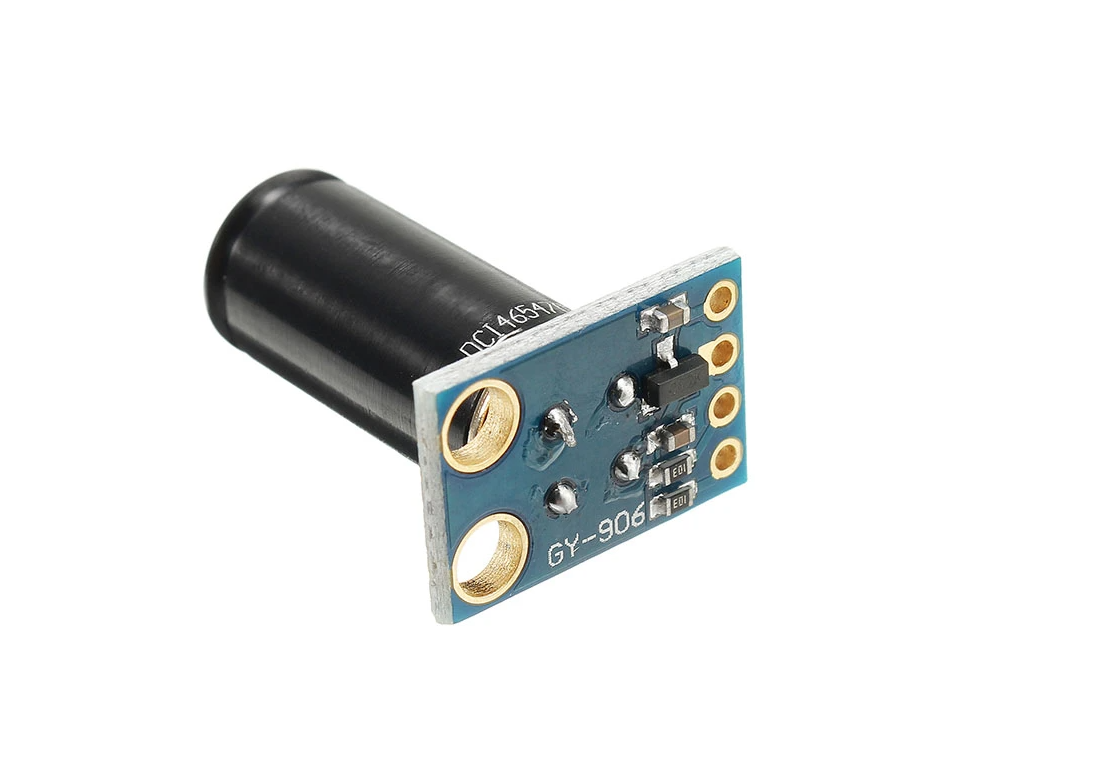

Introducing the GY-906DCI Non-Contact Temperature Sensor, featuring the MLX90614ESF-DCI chip for precise temperature measurement from a distance. With extra accuracy around 38°C, it's ideal for body temperature monitoring. This module offers a compact, blue-colored design with easy mounting options. Operating within a temperature range of -70°C to +380°C, it ensures reliable performance with a resolution of 0.02°C and accuracy of ±0.5°C. The sensor supports a hardware interface of I2C with a default address of 0x5A, featuring adjustable addresses for flexibility. With built-in pull-up resistors, it operates within a supply voltage range of 3.3V to 5V, making it compatible with various systems. Explore its versatility in temperature sensing applications, from healthcare to industrial settings.

Quick Spec

• Model: GY-906DCI
• Sensor Chip: MLX90614-DCI
• Temperature Range: -70°C to +380°C
• Resolution: 0.02°C
• Accuracy: ±0.5°C
• Supply Voltage: 3.3V to 5V DC
• Interface: I2C
• Default I2C Address: 0x5A
• Built-in Pull-up Resistors: 4.7 kΩ
• Field of View (FOV): 5°
• Dimension: 17 x 12 x 24mm

Resources

• Datasheet
• Getting Started
• Arduino library

Shipping List

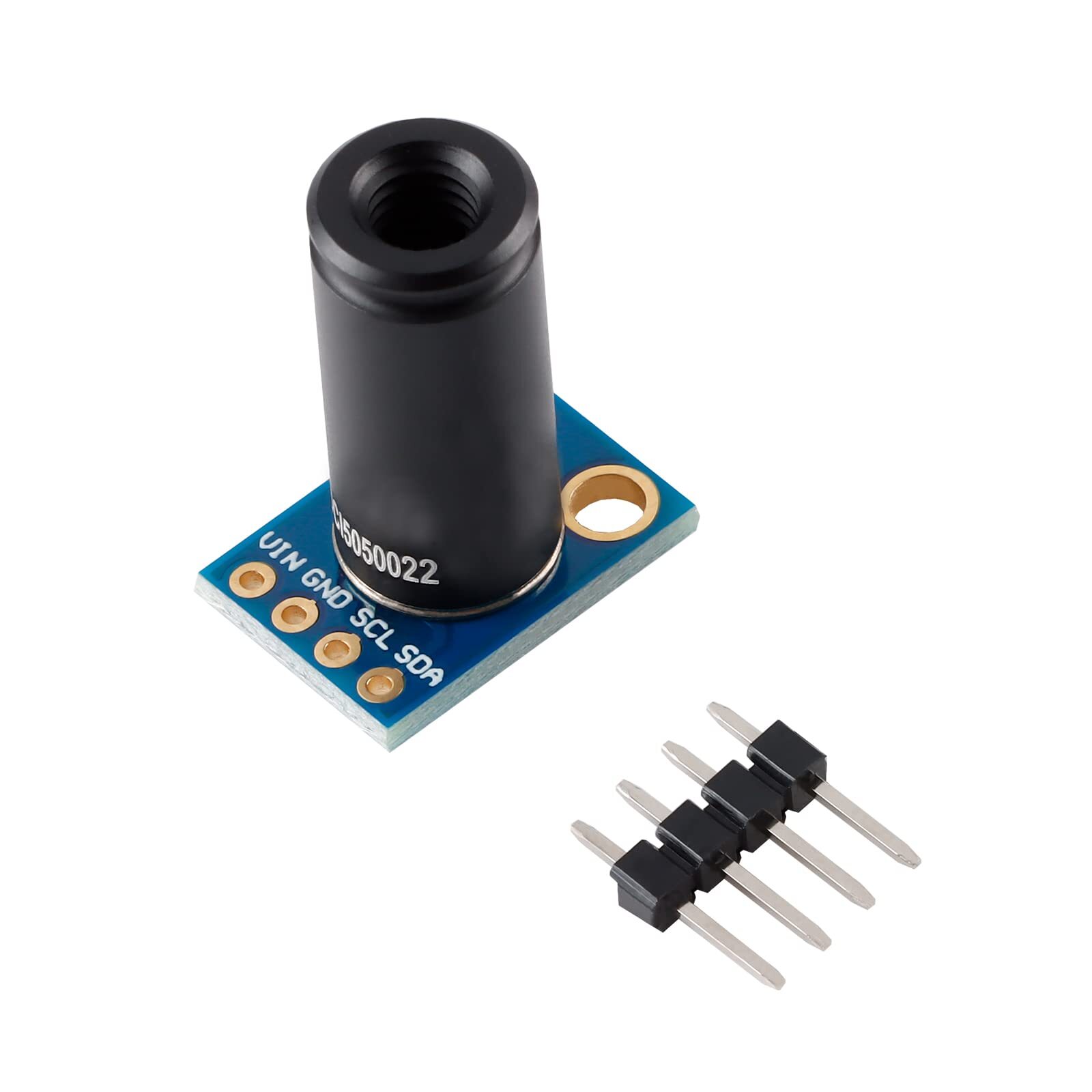

• 1 x Non-Contact Temperature Sensor - MLX90614ESF-DCI
• 1 x 4-Pin SIL Male Header
