Description
The DS18B20 is a digital temperature sensor that can measure temperatures ranging from -67°F to +257°F with an accuracy of ±0.5°C. It follows the single wire protocol and can communicate with a microcontroller using only one pin. The sensor can be powered directly from the data line, eliminating the need for an external power supply. The applications of the DS18B20 temperature sensor include industrial systems, consumer products, systems which are sensitive thermally, thermostatic controls, and thermometers.
Specification

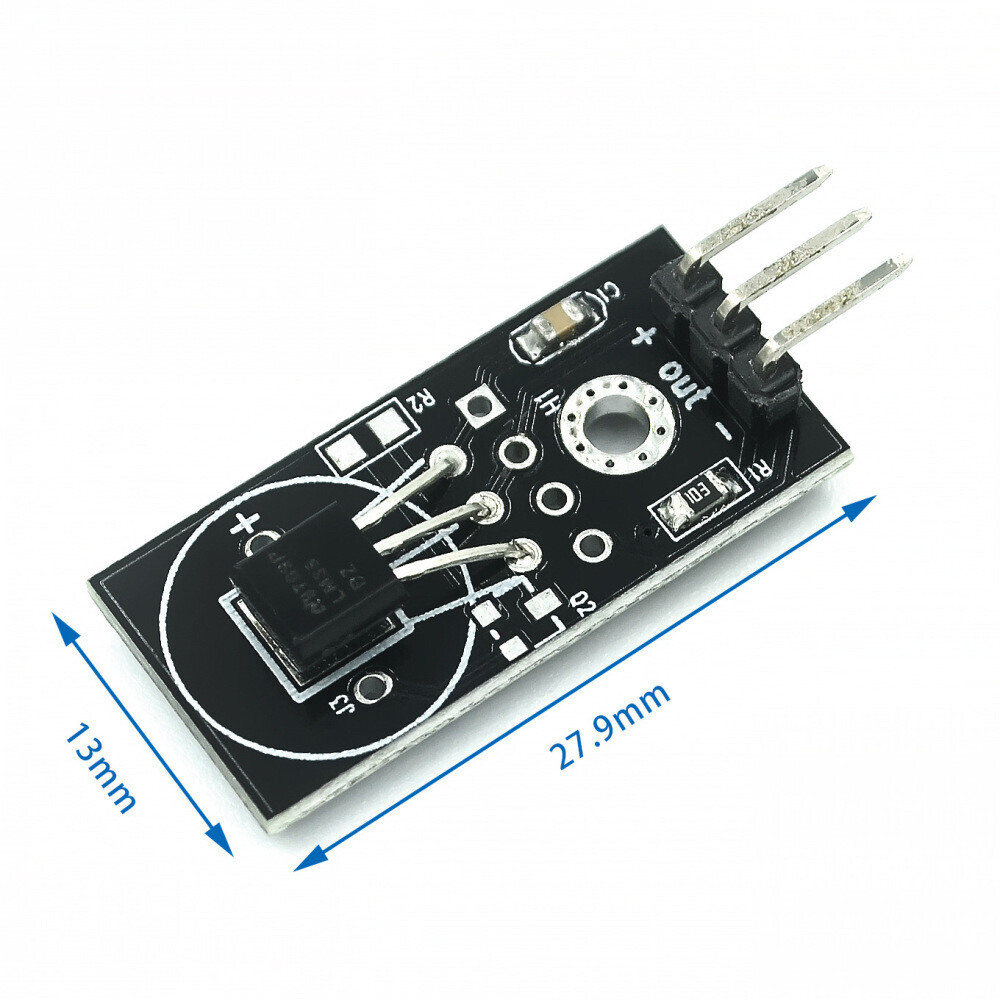

- PCB Size: 13 x 27.9mm
- Power Supply: 3V to 5.5V
- Temperature Range: -55 to 125°C
- Accuracy: ±0.5°C
- Resolution: 9 to 12 bit (selectable)
Features :
- Unique 1-Wire interface requires only one port pin for communication
- Each device has a unique 64-bit serial code stored in an onboard ROM
- Multidrop capability simplifies distributed temperature sensing applications
- Requires no external components
- Thermometer resolution is user-selectable from 9 to 12 bits
- Converts temperature to the 12-bit digital word in 750ms (max.)
- User-definable nonvolatile (NV) alarm settings
- Alarm search command identifies and addresses devices whose temperature is outside of programmed limits (temperature alarm condition)
- Applications include thermostatic controls, industrial systems, consumer products, thermometers, or any thermally sensitive system
Package Includes

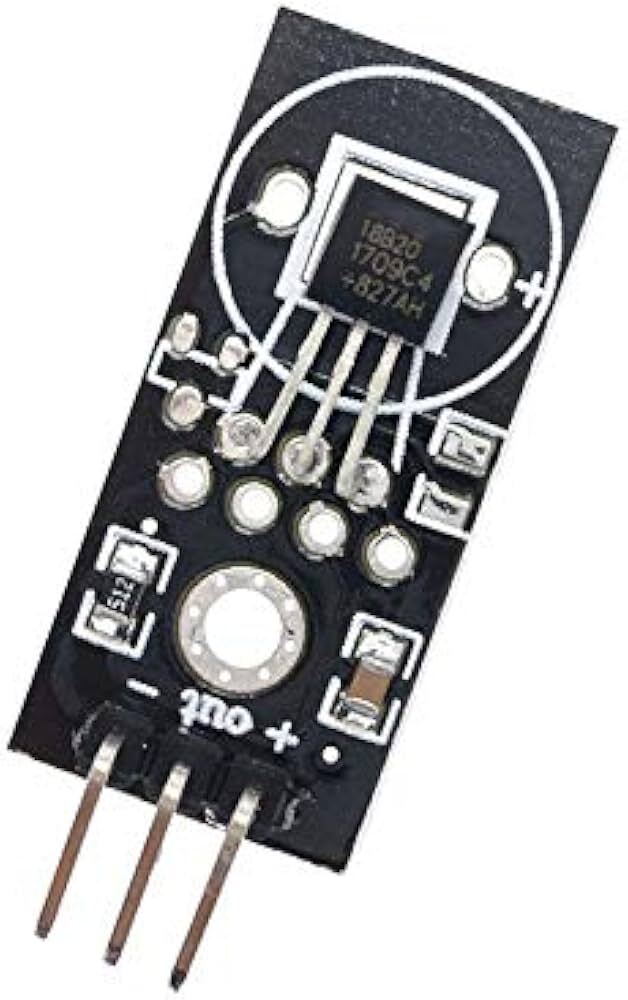

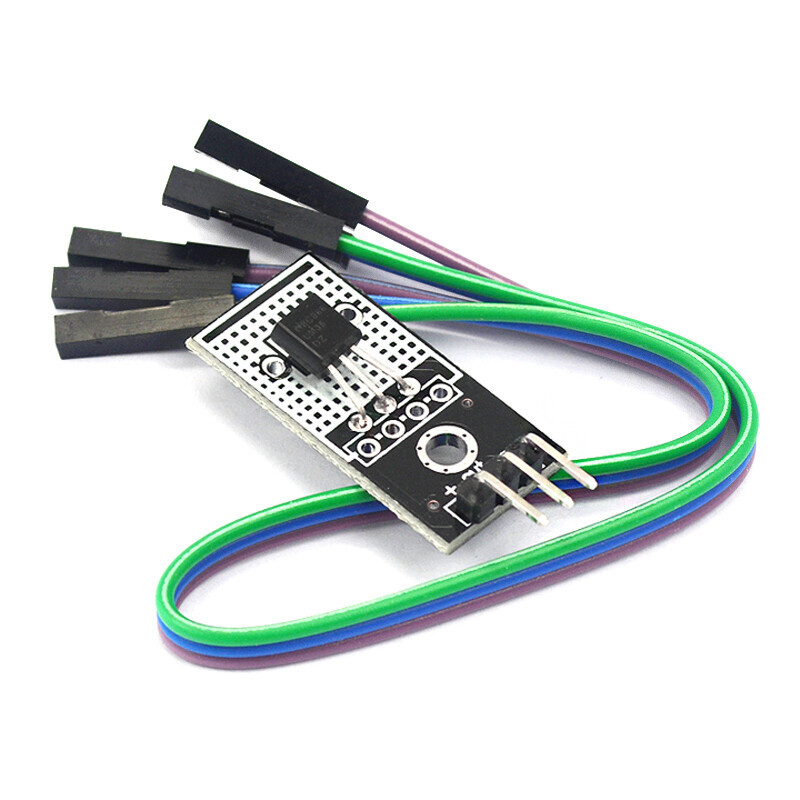

1pc x 1 x DS18B20 Temperature Sensor Module
