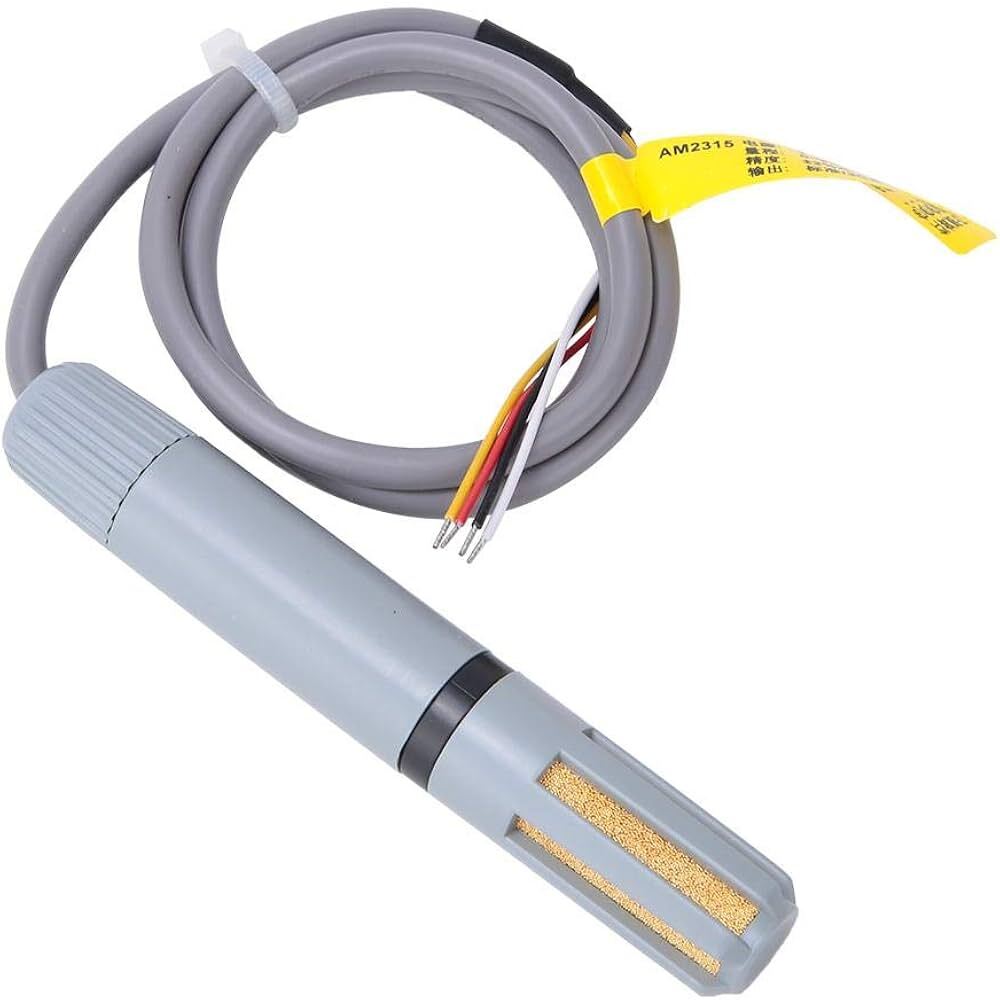

AM2315 I2C digital temperature & humidity module

This robust AM2315 temperature and humidity sensor is perfect for outdoor use. The measured data is transmitted to the microcontroller via the I2C bus. To operate it with an Arduino, you will need two 10kOhm pull-up resistors. With the included brackets, the sensor can be easily mounted.

Connection AM2315 to Arduino UNO

Technical Details:

• Model: AM2315
• Operating Voltage: 3.5V – 5.5V
• Communication: I2C
• Address I2C: 0x5C (not changeable)
• Humidity Resolution: 0.1%RH / 16Bit
• Humidity Accuracy: +-2 %RH at 25°C
• Temperature Range: -40°C to 80°C
• Temperature Resolution: 0.1°C / 16bit
• Temperature Accuracy: Typ: +- 0.1°C max: +-1°C
• Response Time: 5s<
• Weight: 60g

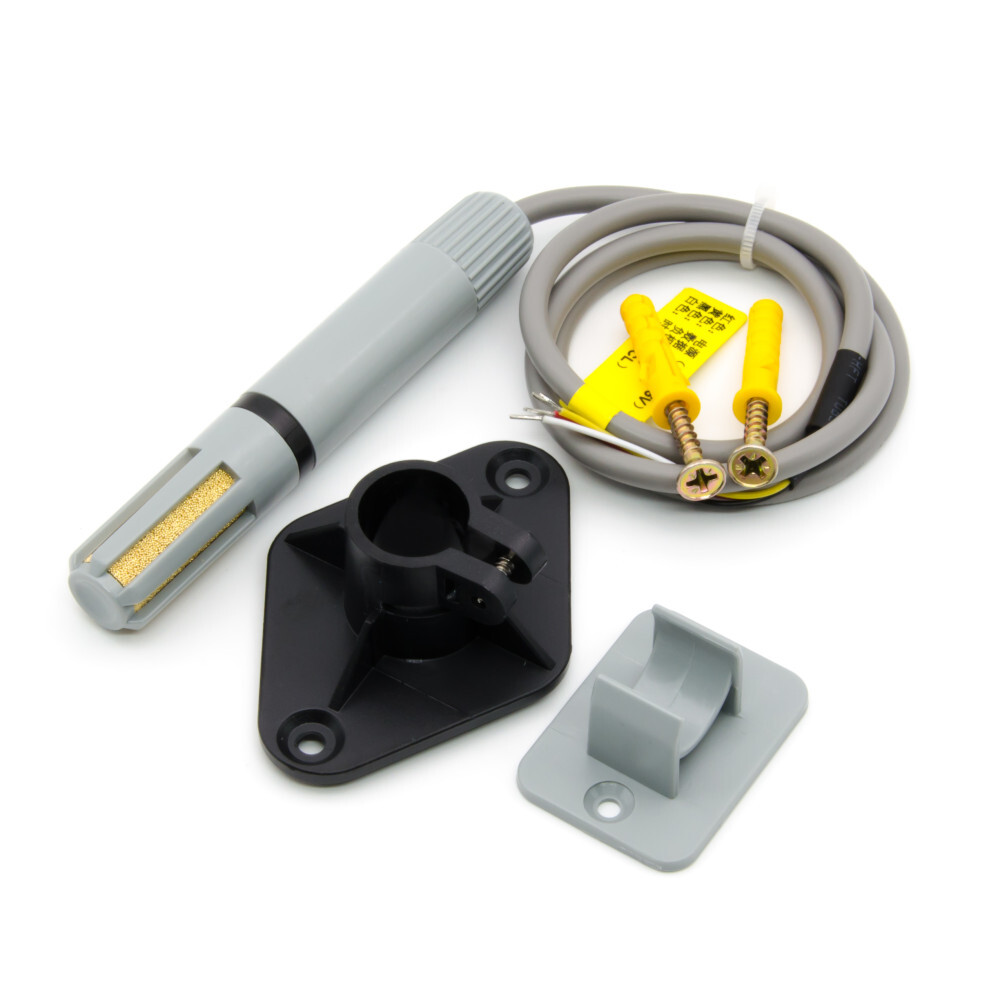

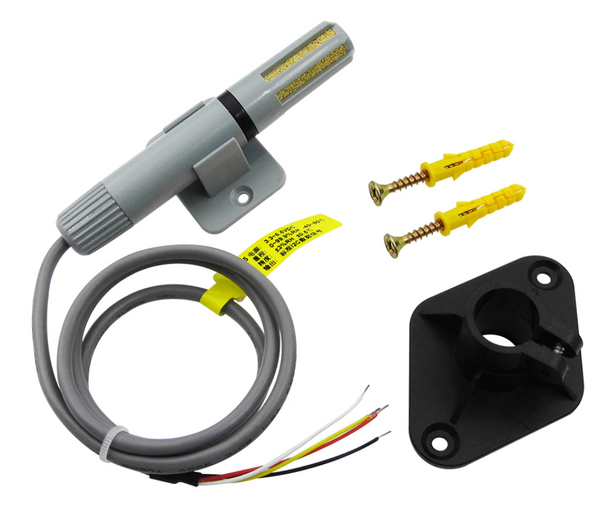

Package Includes

• 1x AOSONG AM2315 I2C Temperature / Humidity Sensor
• 1x Wall Mount
• 1x Installation Mount
• 2x Screws with Dowels
