Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

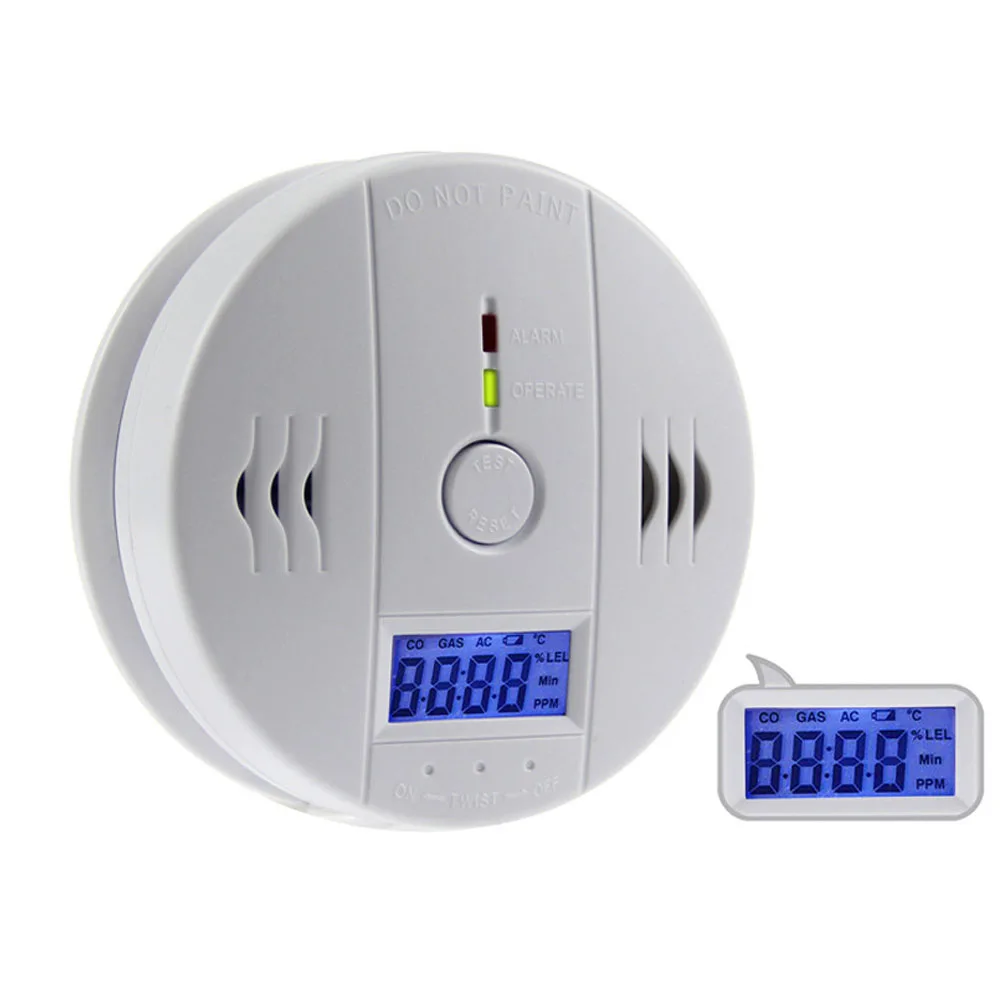

| Product Name | Carbon Monoxide (CO) Gas Sensor Alarm Detector |
| Type | CO Gas Detector / Safety Alarm |
| Function | Detects carbon monoxide levels and triggers alarm |
| Display | 4-digit LCD (gray, optional) |
| Audibility | 85 dB (at 1 meter) |
| Frequency Range | 0.5 – 3 kHz |
| Standby Current | < 50 µA |
| Alarm Current | < 50 mA |
| Power Consumption | 0.3 mW |
| Power Supply | 3 × AA Batteries (not included) |
| Standby Mode | Green LED flashes once every 30 seconds |
| Alarm Mode | Red LED flashes 4 times + chirp every 5 seconds (repeats) |
| Low Battery Indicator | Chirp every 30 seconds, green LED flashes, “Lb” displayed on LCD |
| Sensitivity / Response Time | 50 ppm: 60–90 min; 100 ppm: 10–40 min; 300 ppm: ≤3 min |
| Size | 10 cm × 4 cm |
| Features | Real-time CO level display, audible alarm, low power consumption |
| Applications | Home safety, kitchens, garages, indoor air quality monitoring |
Harm of Carbon monoxide:
- 50PPM, more than 8 hours will be poisoning
- 200PPM, 2 to 3 hours, headache and weak
- 400PPM, 1 to 2 hours, headache, after 3 hours maybe will cause die
- 800PPM, within 45 minutes, have dim eyesight, nausea, spasm, within 2 hours, lose consciousness
- 1600PPM, within 20 minutes, headache, have dim eyesight, nausea, within 1 hour, die
- 3200PPM, 5 to 10 minutes, headache, have dim eyesight, nausea, 25 to 30 minutes, die
- 6400PPM, 1 to 2 minutes, headache, have dim eyesight, nausea, 10 to 15 minutes, die
- 12800PPM, 1 to 3 minutes, die
Package Includes :
- 1 x CO Gas Sensor Detector Carbon Monoxide Poisoning Alarm Detector With LCD Display.
- 1 x Accessories set.
