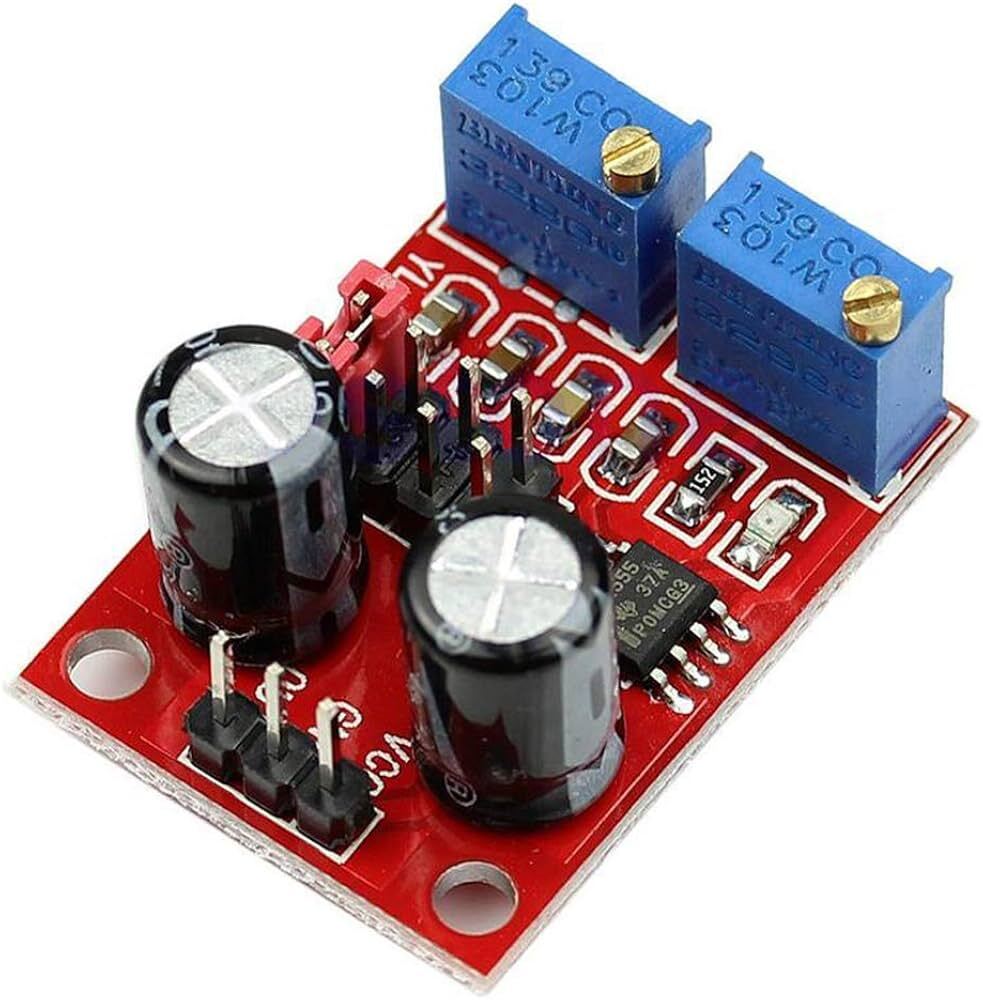

NE555 Pulse Frequency Duty Cycle Adj. Square Wave Signal Generator

(No reviews yet) Write a Review

SKU:: PEADS22
UPC:
MPN:
Shipping:: Calculated at Checkout

KES250.00

Quantity:

Frequently bought together:

Description
0 Reviews

Description

The 555 timer IC is an integrated circuit that is popular used in a variety of timer, pulse generation, and oscillator applications. This NE555 frequency adjustable pulse generator Module utilizes the NE555 timer IC to generate pulses from about 4Hz to 1.3Khz, which can be used for experimental development, or driving a stepper motor, it would be also a good choice for users learning& experiencing the analog RC circuits.

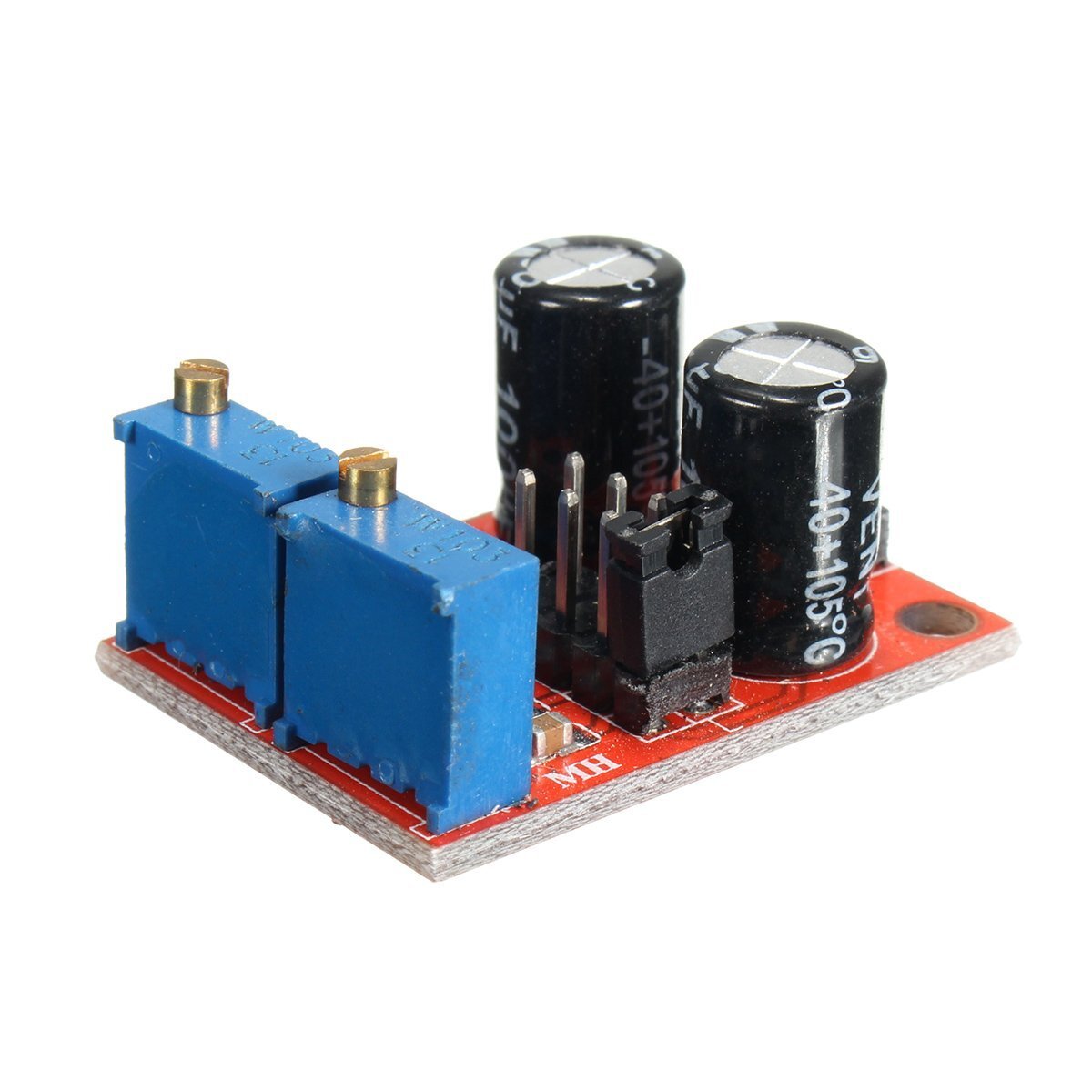

There are 4 jumpers and 2 variable resistors on the module, users can adjust the output wave with these components, to get their ideal wave easily.

Features

Output with the LED indicator
The output frequency is adjustable:T=0.7(RA+2RB)*C RA and RB can be adjusted (0-10k); Low frequency:C=0.001UF; Intermediate frequency:C=0.01UF; High-frequency:C=1UF; higher frequency:C=100UF

Instructions

Input Voltage: 5V-15VDC.(when power supply is 5V , the output current can be 15mA around;when 12V power supply, the output current can 35mA around)
Output amplitude: 4.2V V-PP(5v input) to 11.4V V-PP(12V input). (Different input voltage, the output amplitude will be different)
Maximum output current: >=15mA (5V power supply, V-PP greater than50%),>=35mA (12V power supply, V-PP greater than 50%)

Application

As a square wave signal generator,generates a square wave signal used for experimental development
Used to drive a stepper motor
Generate adjustable pulse for MCU
Generate adjustable pulse to control circuitry associated
