Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

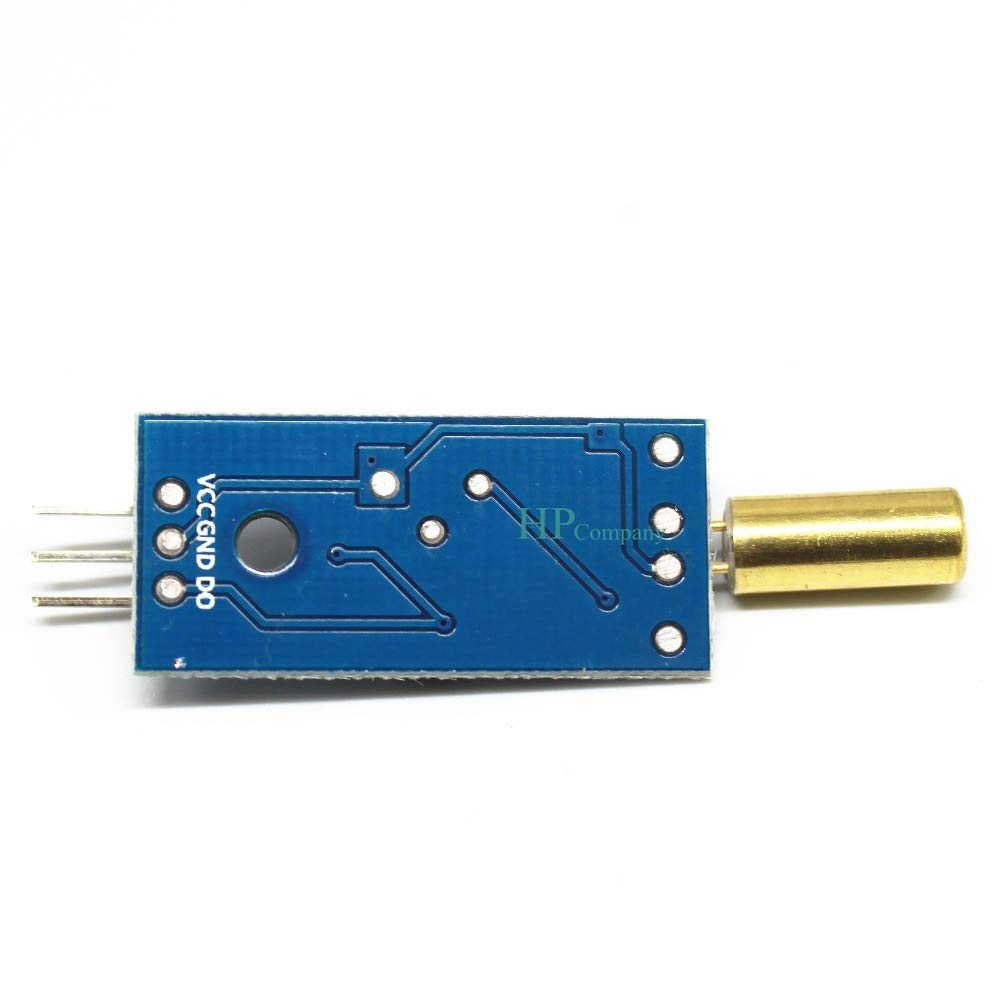

| Product Name | SW-520D Tilt Switch Module |
| Sensor | High-sensitivity switch SW-520D |
| Working Voltage | 3.3V ~ 5V |
| Output Type | Digital switch output (0 & 1) |
| Comparator | LM393 wide voltage comparator (clean signal, strong driving, >15 mA output) |
| PCB Size | 3.2 cm × 1.4 cm |
| Mounting | Fixed bolt hole for easy installation |
| Operation | Angle-dependent: DO = High when switch off, DO = Low when switch on |
| Microcontroller Use | Output terminal can directly connect to MCU to detect angle change |
| High-Power Application | Can directly drive relay module to form tilt switch for automatic power-off protection |
| Features | Small, high-sensitivity, angle-detection, easy installation, strong output |
| Applications | Electrical equipment protection, tilt detection, anti-tilt switches |
Note: Please don't do reverse polarity for "+" and "-",or it may burn the board.
Package Includes:
1 x Tilt Sensor Module
