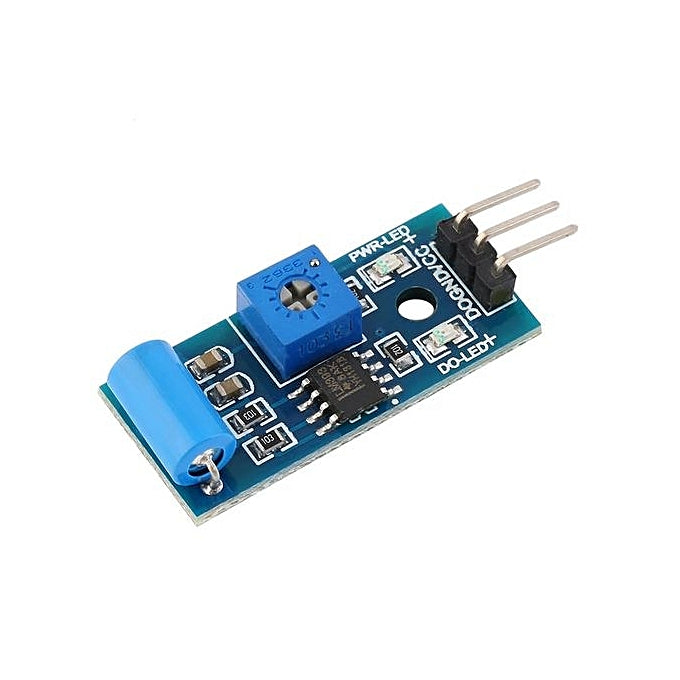

SW-420 Normally closed vibration sensor

The Vibration module based on the vibration sensor SW-420 and Comparator LM393 to detect if there is any vibration that beyond the threshold. The threshold can be adjusted by the on-board potentiometer. When this no vibration, this module output logic LOW the signal indicate LED light,And vice versa.

The product when it is not shock, vibrate switch is closed on-State, output output low level, the green indicator light is on; When vibration, vibration switches disconnected moments, output output line, the Green led is not lit; the output can be directly connected to the micro controller, by single-chip computer to detect high or low level, to detect whether there is vibration, alarm function

Features:
SW-420 using the company's production of normally closed type vibration sensor.
The comparator output, the signal is clean, the waveform, the driving ability to exceed 15mA
Operating voltage 3.3V-5V
The output in the form: Digital switching outputs (0 and 1)
A fixed bolt hole for easy installation
Small board PCB size: 3.2cm x 1.4cm
Wide voltage LM393 comparator

Applications :
For a variety of shocks triggering, theft alarm, smart car, an earthquake alarm, motorcycle alarm.

Package Includes
1pc x SW-420 Normally closed  vibration sensor
