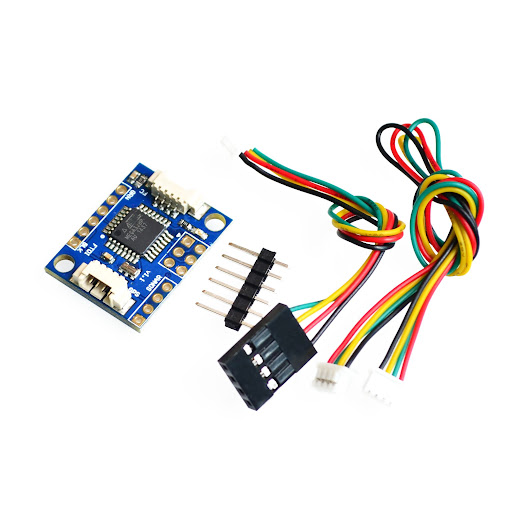

MultiWii C I2C-GPS NAV Navigation Board

This is a CRIUS MultiWii C I2C-GPS NAV Navigation Board. The navigation board is used for GPS navigation. In this module, all GPS data is available via the I2C bus to connect to 328P Multiwii FC. An LED is connected to the board to show GPS 3D Fix status. It has an ATMega 328P Microcontroller.

Features

1. All GPS data is available via the I2C bus to connect to 328P Multiwii FC
2. A LED onboard show GPS 3D Fix status
3.  Microcontroller
4. 2 Molex 1.25mm 4Pin socket for GPS receiver and FC
5. 2 port for ISP and FTDI

Specifications

- Dimension: 26 x 20 x 5mm
- Weight: 2.4g/6.3g (include cable)
- Hole diameter: 3.1mm
- UART 4Pin cable (to GPS) 200mm x1
- I2C 4Pin cable (to FC) 100mm x1

Package Includes

1 X NAV Module
1 X UART 4Pin cable (to GPS) 200mm
1 X I2C 4Pin cable (to FC) 100mm
