Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Product Type | Multi-GNSS Receiver Module |
| Chipset | 8030-KT |
| Supported Systems | GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS |
| Frequency Bands | GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1 |
| Channels | 72 searching channels |
| Module Size | 22 × 20 × 6 mm |
| Weight | 5.3 g |
| Connector Type | 1.00 mm spacing 4-pin patch connector |
| Data Interface | TTL or RS-232 (default TTL) |
| Data Protocol | NMEA-0183 or UBX (default NMEA-0183) |
| Baud Rate | 4800 bps to 921600 bps (default 9600 bps) |
| GNSS Update Rate | 1 Hz – 18 Hz (single GNSS), 1 Hz – 10 Hz (default 1 Hz concurrent) |
| Position Accuracy | 2.0 m CEP (SBAS enabled, typical open sky) |
| Velocity Accuracy | 0.1 m/s (95%, SA off) |
| Timing Accuracy | 1 µs synchronized to GPS time |
| Cold Start Time | 26 s |
| Warm Start Time | 25 s |
| Hot Start Time | 1 s |
| Sensitivity (Tracking) | -167 dBm |
| Sensitivity (Reacquisition) | -160 dBm |
| Sensitivity (Cold Start) | -148 dBm |
| Sensitivity (Hot Start) | -156 dBm |
| Operating Voltage | 3.0 V – 5.5 V (typical 5.0 V) |
| Operating Current | 50 mA @ 5.0 V |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +105°C |
| Operational Limits | Altitude: 50,000 m max; Speed: 515 m/s max; Acceleration: <4 g |
| Indicators | TX LED (blue), PPS LED (red) |
| Pin Definition | GND, TX (output), RX (input), VCC |
Package Includes:

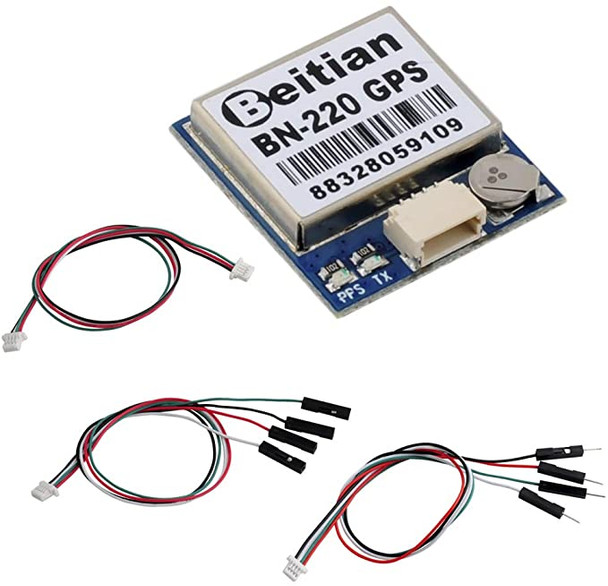

- 1 x BN-220 GPS Module
- 2 x 15cm Cable
