Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

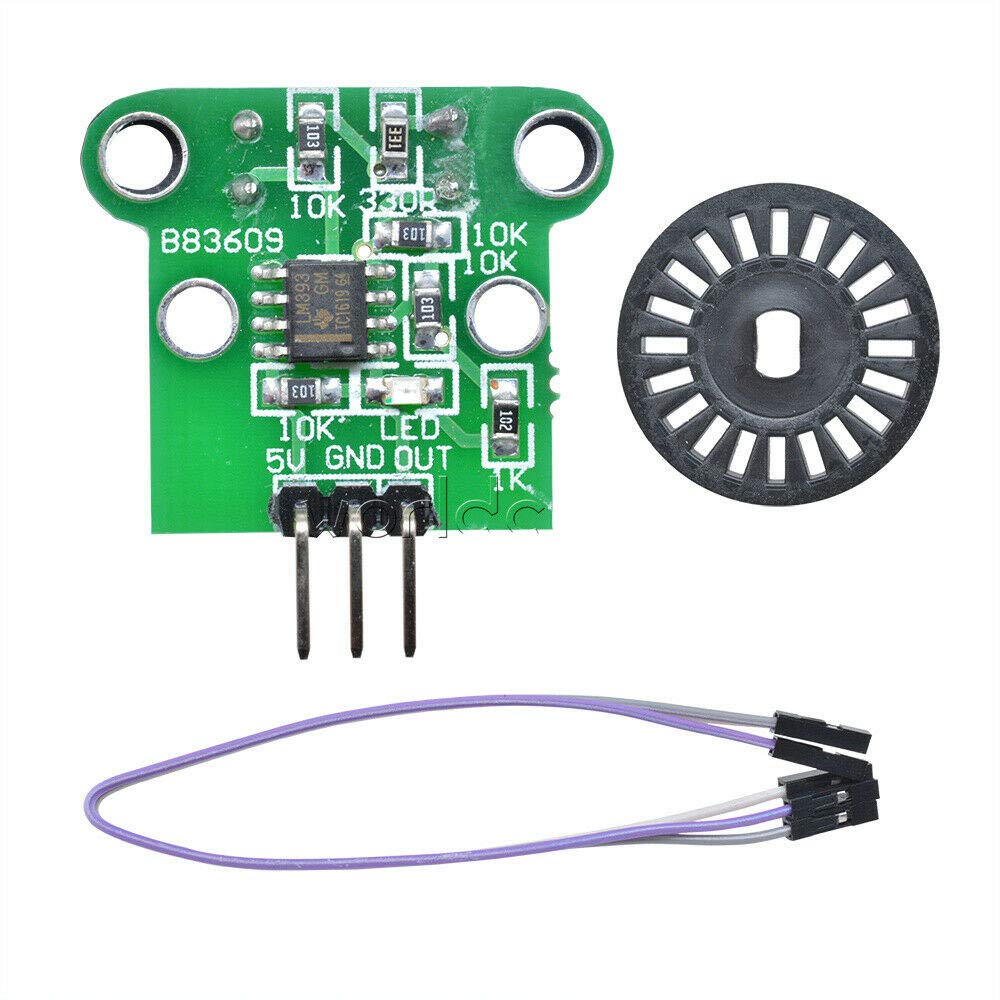

| Product Type | Dual-Speed Measurement Encoder Module |
| Model | HC-020K |
| Technology | Optical rotary encoder speed measurement |
| Working Principle | Measures rotational speed using encoder disk and optical signal interruption |
| Operating Voltage | 4.5V – 5.5V |
| Output Type | Digital TTL signal (A and B bidirectional channels) |
| Signal Channels | Dual-channel (A/B quadrature output) |
| Measurement Output | Speed and direction detection |
| Response Speed | High-speed response (up to 100 kHz measurement frequency) |
| Resolution | Encoder resolution: 20 lines |
| Measurement Precision | 0.01 mm precision distinction |
| Encoder Size | 24 mm diameter |
| Shaft Compatibility | 4 mm D-type motor shaft hole |
| Transmission Current | 20 mA |
| Voltage Drop (Vf) | 1.6 V |
| Key Features | High resolution, wide voltage range, fast response |
| Detection Capability | Motor speed and rotation direction measurement |
| Installation | Easy mounting on 4 mm motor output shafts |
| Applications | Robotics, motor speed control, automation systems |
| Use Case | Encoder-based motion tracking and RPM measurement |
Package Includes:
1 x RP5 double-speed measurement module kit
