WhalesBot AI Module 5S Robot

Controller:
At the core of the WhalesBot AI Module 5S is a 240MHz processor with 4MB of flash storage and 224KB of RAM, capable of storing 30+ programs. The 128×64 LCD screen displays essential information, while the 4 buttons allow for easy operation. It features 16 input/output interfaces for various connections. The controller supports two working modes: USB download mode and online running mode. Built-in Bluetooth and a speaker enhance interaction and connectivity.

Structural Components (Including Transmission Components):
This kit includes an integrated chassis, making it easy to assemble into a vehicle or robot. With no fewer than 520 components and 37 types, it offers a robust foundation for creative builds. The transmission components include 10 different types of gears, totaling 35 pieces:

• 4 straight gears with 8, 16, and 24 teeth
• 4 half-height bevel gears with 12 and 20 teeth
• 4 bevel gears (12 and 20 teeth)
• 2 bevel gears with 36 teeth
• 2 worm gears
• 3 racks
  These parts ensure smooth and efficient mechanical movements for a variety of robotic designs.

Sensors:
The WhalesBot AI Module 5S is equipped with an array of sensors to enhance interaction with the environment:

• 1 color sensor

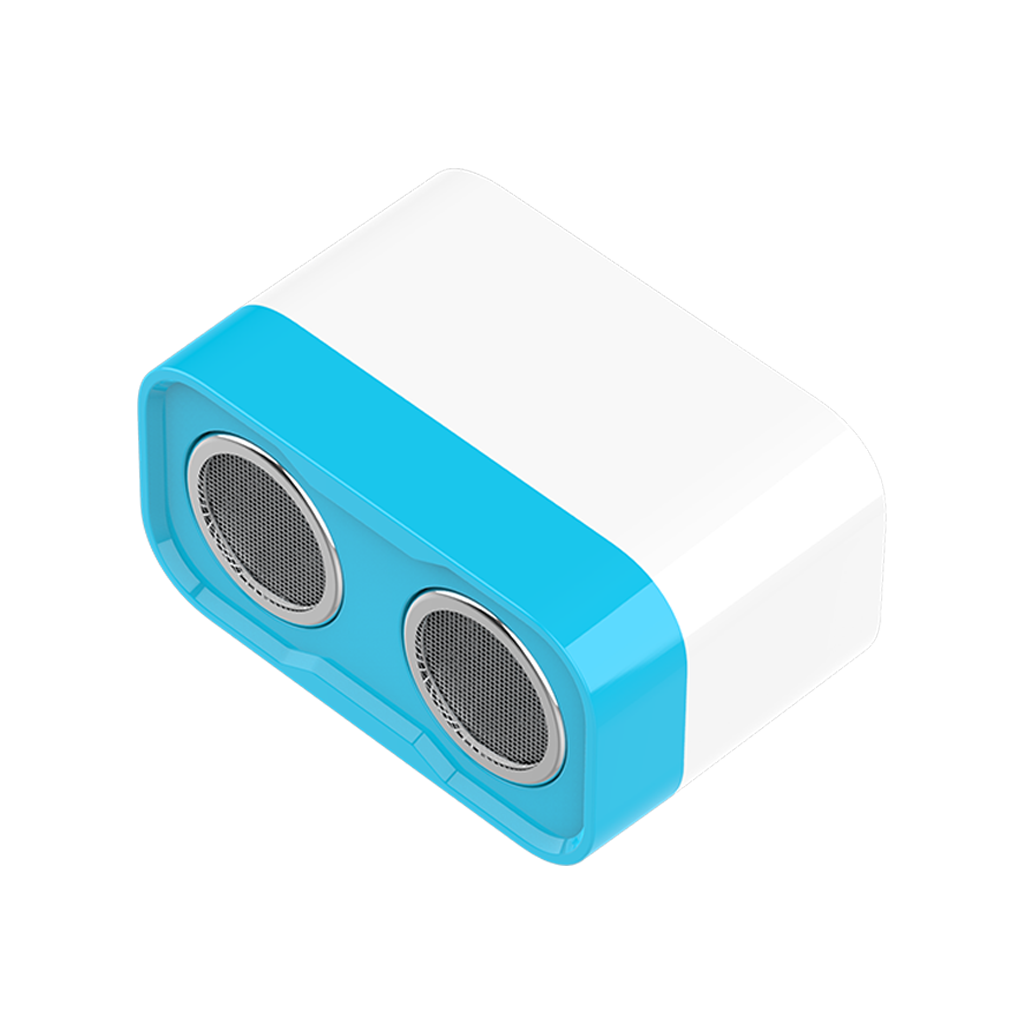

• 1 ultrasonic sensor
• 1 temperature and humidity sensor

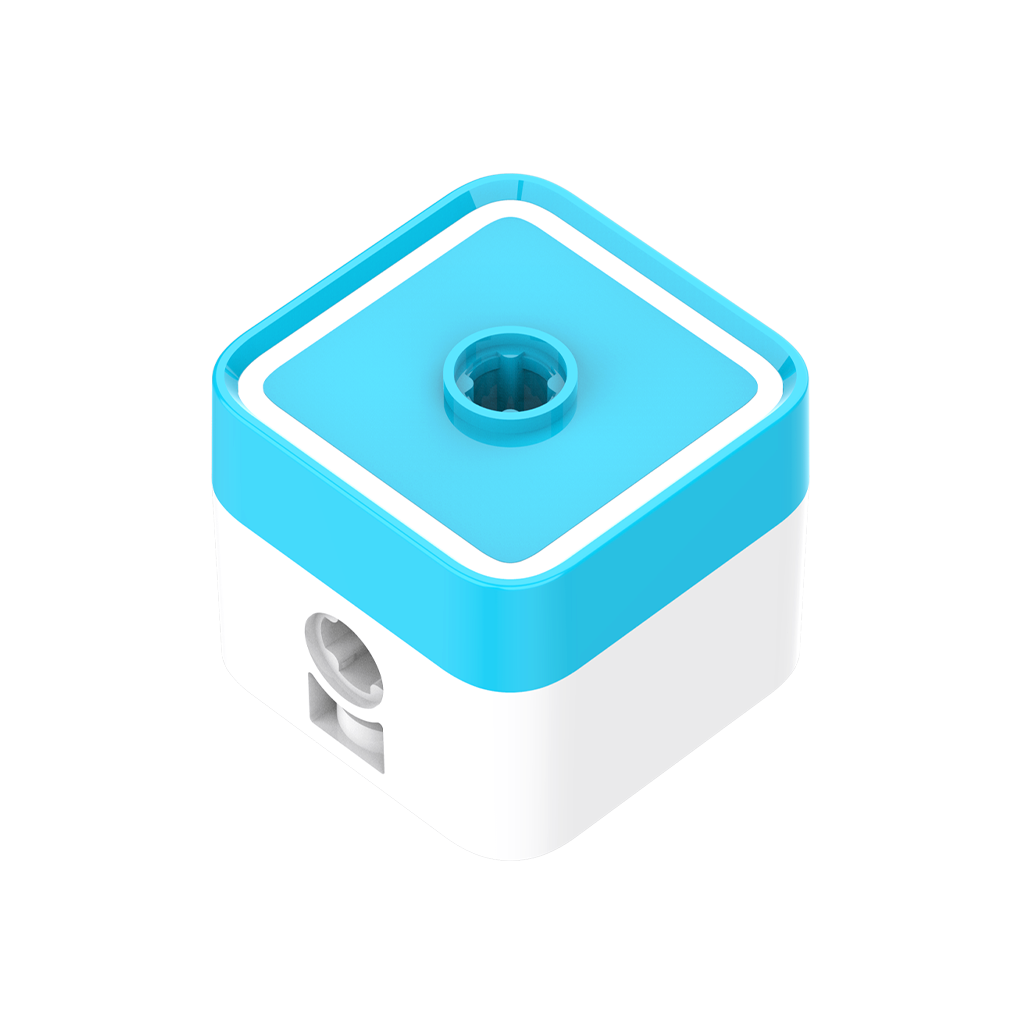

• 1 rotary encoder
• 1 gesture sensor
• 1 touch sensor
• 5 single grayscale sensors

These sensors provide the robot with the ability to detect and respond to various stimuli, enabling autonomous behavior and interactions.

Actuators:

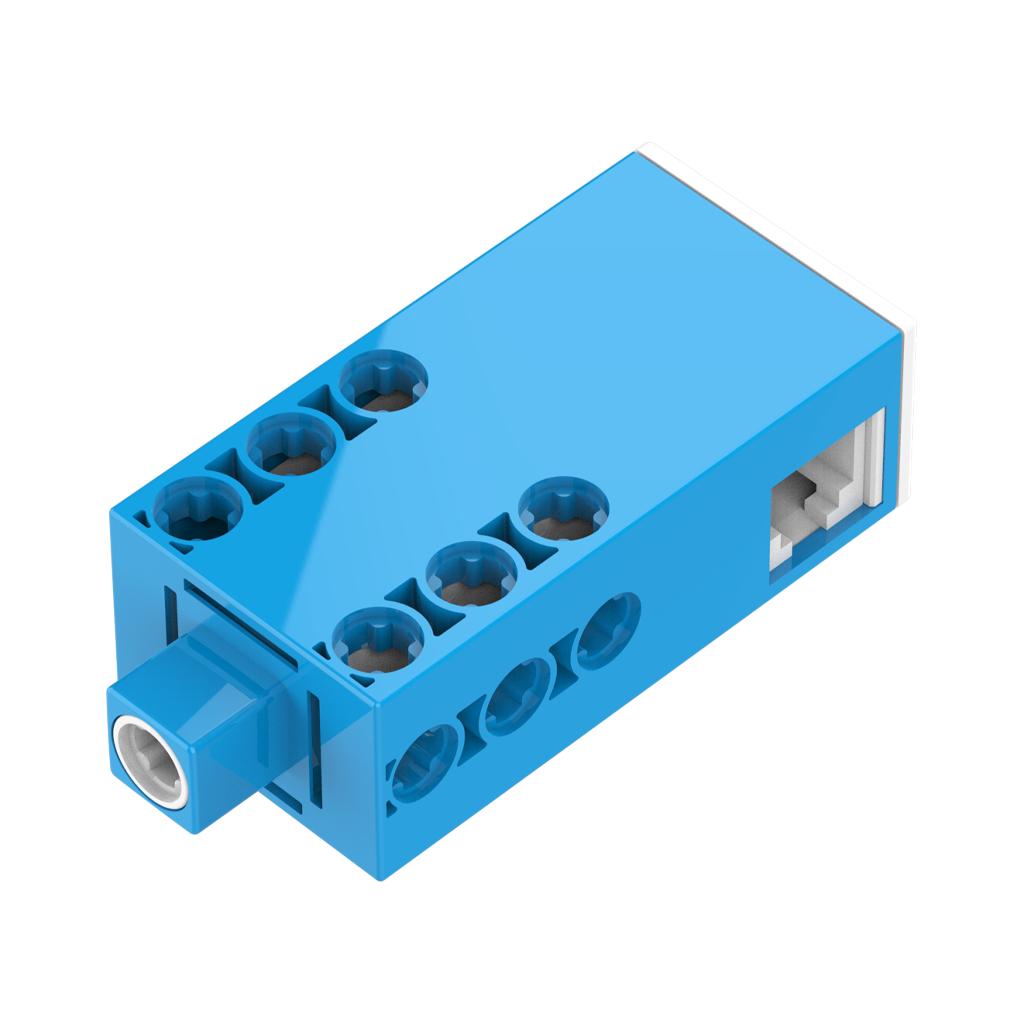

The kit includes 4 closed-loop motors for precise movement, 2 RGB color lights for dynamic visual feedback, and 2 dot matrix screens for displaying characters or images. These actuators allow for a wide range of actions, from movement to visual output.

Power:
Powered by a 7.4V 1500mAh special lithium battery, the WhalesBot AI Module 5S ensures reliable power for extended usage and long-lasting performance.

Software:
The WhalesBot AI Module 5S supports multiple programming platforms, including Scratch, C, and Python. It also includes an action editor, providing a user-friendly way to create and control your robot’s movements and behaviors.
