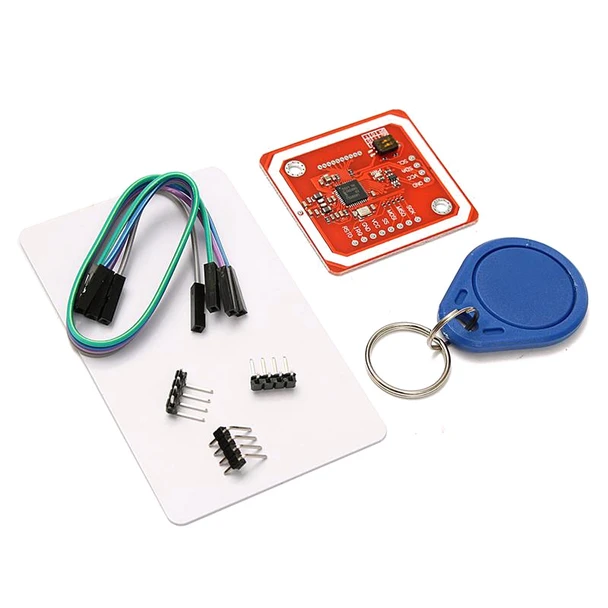

Name: PN532 NFC RFID Reader Writer Module
Brand: diymore
SKU: PENFC14
Price: 1000 KES
Availability: OutOfStock

PN532 NFC RFID Reader Writer Module

(No reviews yet) Write a Review

SKU:

PENFC14

Shipping:

Calculated at Checkout

Description
0 Reviews

Description

Features:

CATEGORY	SPECIFICATIONS
Product Type	PN532 NFC/RFID Reader-Writer Module
Technology	NFC / RFID (Near Field Communication)
Controller Chip	PN532
Operating Modes	NFC reader/writer, RFID mode, P2P communication, card emulation
Supported Interfaces	I²C, SPI, HSU (High-Speed UART)
Default Interface	I²C (Arduino Sensor Shield plug-and-play compatible)
Operating Voltage	3.3 V / 5 V logic (built-in level shifting)
Communication Level	5V TTL (I²C/UART), 3.3V TTL (SPI)
Operating Distance	~4 – 7 cm (typical 5–7 cm updated range)
Built-in Antenna	Yes (PCB antenna, ~4–6 cm effective range)
Key Feature	Multi-interface NFC module with read/write capability
Supported Cards	MIFARE 1K/4K, Ultralight, DESFire, ISO/IEC 14443-4 cards, FeliCa, Innovision Jewel
Smartphone Support	Android NFC communication supported
P2P Communication	Supported (module-to-module wireless communication)
Card Emulation Mode	Supported (acts as virtual NFC card)
Function	Read, write, emulate NFC/RFID tags and exchange data
Level Shifting	Built-in level shifter for safe MCU integration
Interface Switching	Hardware switch to change between I²C, SPI, and UART modes
Integration	Arduino plug-and-play (Sensor Shield compatible)
Key Feature	Flexible multi-protocol NFC/RFID communication module
Operating Principle	RF field generation → tag/device communication → data exchange via selected interface
Applications	RFID/NFC projects, access control, smart devices, mobile NFC interaction, P2P communication systems
Advantage	Highly versatile, multi-interface support, Arduino-friendly, supports advanced NFC features
