Description
Spec:

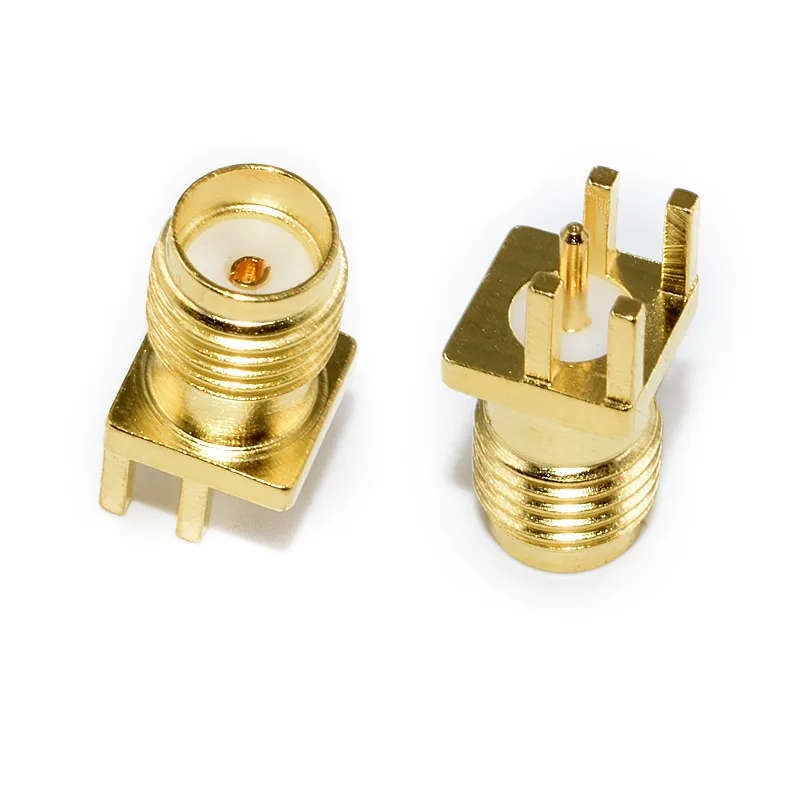

- SMA Female to PCB Board Mount, is a sub-miniature coaxial cable connector. It finds many applications for providing connectivity for RF assemblies within equipments where coaxial connections are required.
- High Quality, Pure Copper with Gold Plated Body and Pin
- Unsymmetrical Pin
- Length : Appr . 13.5mm
- Pitch: 1.6mm
Product Description:
Contact resistance:≤0.01Ω
Insulation resistance:>100 MΩ
Withstand Voltage:AC500V(50Hz)/min
Rated load:30V/0.5A
Electrical life 5000 times
Temperature range:-30~70 ° C
Package Includes

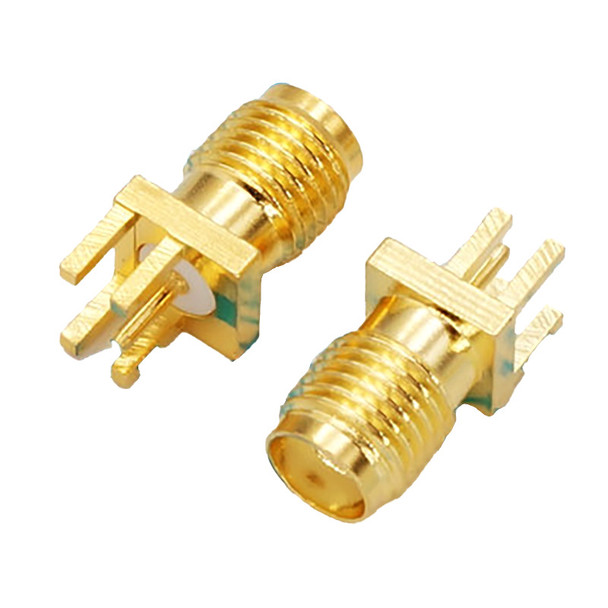

1pc x SMA Straight RF Connector 1.6mm Pitch SMA-KE
