Description

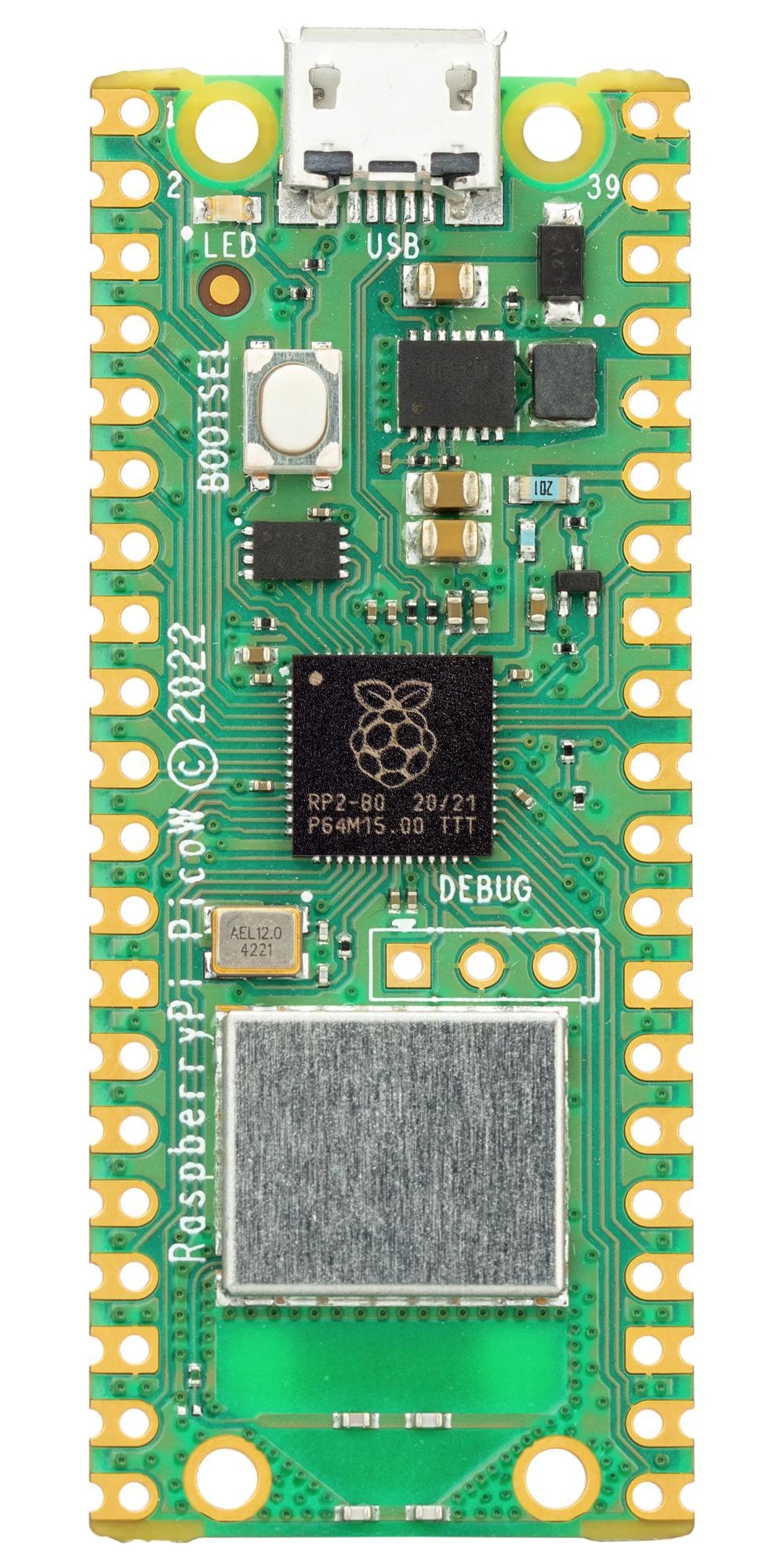

Network your Pico for a complete IoT solution. Raspberry Pi Pico W comes with a fully certified module on board featuring 2.4GHz 802.11n wireless LAN, making it the perfect solution for loT applications and projects requiring wireless communication.
Yes you heard it right PICO now has been improved by including a 2.4GHz wireless interface while keeping the same form factor as the previous one, and a New variant of PICO has arrived with the name Raspberry PI PICO W and included the significant features listed below.
At the heart of each product is RP2040, a Raspberry Pi-designed chip, which features two ARM Cortex-M0+ cores clocked at 133MHz; 256KB
RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data
storage. Raspberry Pi Pico W and Pico WH incorporate an Infineon CYW43439 wireless chip. CYW43439 supports IEEE 802.11 b/g/n wireless LAN,
and Bluetooth 5.2; of these, only wireless LAN is supported at launch.
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Microcontroller | RP2040 microcontroller with 2 MB of flash memory |
| Cpu | Dual-core Cortex M0+ processor running up to 133 MHz; on-chip PLL allows variable core frequency |
| Memory | 264 kB multi-bank high-performance SRAM |
| Wireless connectivity | On-board single-band 2.4 GHz wireless interface (802.11n) |
| Usb | Micro USB B port for power, data, and reprogramming the flash |
| Board design | 40-pin, 21 mm × 51 mm DIP-style 1 mm thick PCB with 0.1″ through-hole pins and edge castellations |
| Gpio | 26 multi-function 3.3 V GPIO pins; 23 digital-only, 3 also ADC capable |
| Debug interface | 3-pin ARM Serial Wire Debug (SWD) port |
| Power supply | Flexible power architecture; can be powered via micro USB, external supplies, or batteries |
| Mounting | Can be surface mounted as a module |
| Software support | Comprehensive SDK, software examples, and documentation |
| General features | High quality, low cost, and high availability |
Package Includes:
1 x Raspberry Pi Pico W
Configurable Pin Function, Allows Flexible Development And Integration
